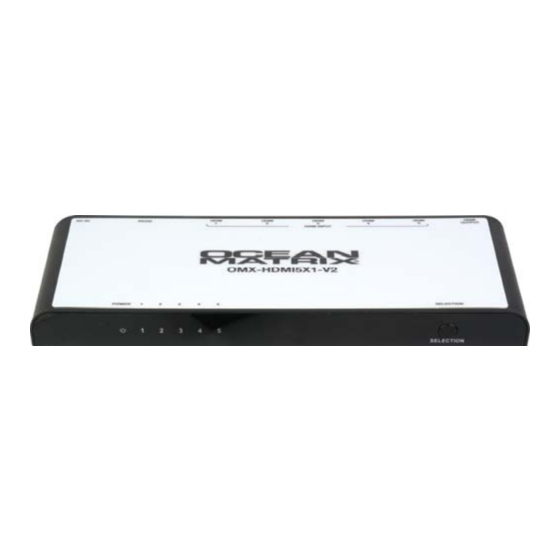

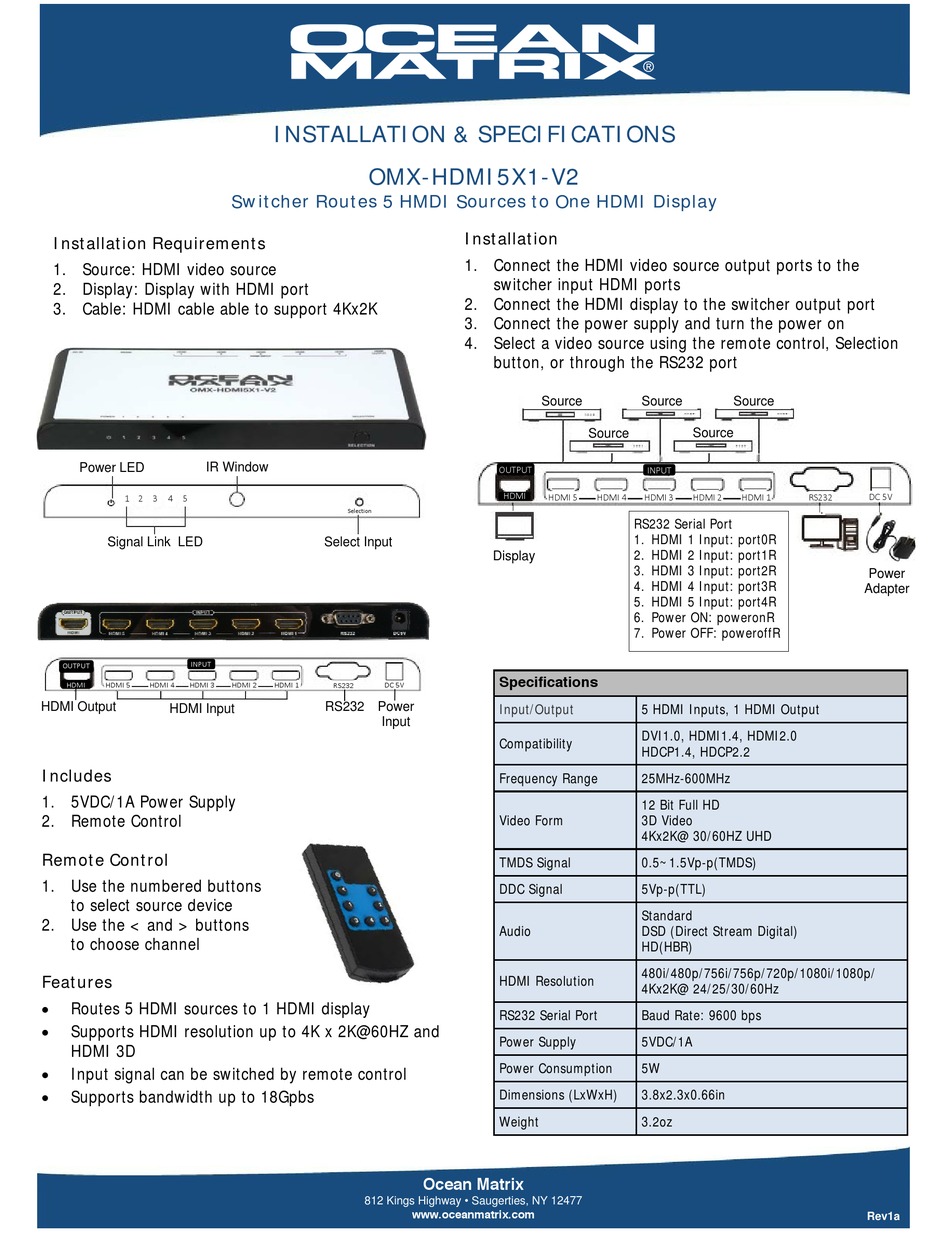

Ocean Matrix OMX-HDMI5X1-V2 Installation & Specifications

Installation Requirements
1. Source: HDMI video source
2. Display: Display with HDMI port
3. Cable: HDMI cable able to support 4Kx2K
IR Window
Power LED
1 2 3 4 5
Signal Link LED
INPUT
OUTPUT
HDMI HDMI 5 HDMI 4 HDMI 3
HDMI Output
HDMI Input
Includes
1. 5VDC/1A Power Supply
2. Remote Control
Remote Control
1. Use the numbered buttons
to select source device
2. Use the < and > buttons
to choose channel
Features
 Routes 5 HDMI sources to 1 HDMI display
 Supports HDMI resolution up to 4K x 2K@60HZ and
HDMI 3D
 Input signal can be switched by remote control
 Supports bandwidth up to 18Gpbs
INSTALLATION & SPECIFICATIONS
OMX-HDMI5X1-V2
Switcher Routes 5 HMDI Sources to One HDMI Display
Selection
Select Input
HDMI 2 HDMI 1 RS232 DC 5V
RS232 Power
Input
812 Kings Highway • Saugerties, NY 12477
Installation
1. Connect the HDMI video source output ports to the
switcher input HDMI ports
2. Connect the HDMI display to the switcher output port
3. Connect the power supply and turn the power on
4. Select a video source using the remote control, Selection
button, or through the RS232 port
Source
Source
OUTPUT
HDMI
HDMI 5
Display
Specifications
Input/Output
Compatibility
Frequency Range
Video Form
TMDS Signal
DDC Signal
Audio
HDMI Resolution
RS232 Serial Port
Power Supply
Power Consumption
Dimensions (LxWxH)
Weight
Ocean Matrix
www.oceanmatrix.com
Source Source
Source
INPUT
HDMI 4 HDMI 3 HDMI 2 HDMI 1
RS232 Serial Port
1. HDMI 1 Input: port0R
2. HDMI 2 Input: port1R
3. HDMI 3 Input: port2R
4. HDMI 4 Input: port3R
5. HDMI 5 Input: port4R
6. Power ON: poweronR
7. Power OFF: poweroffR
5 HDMI Inputs, 1 HDMI Output
DVI1.0, HDMI1.4, HDMI2.0
HDCP1.4, HDCP2.2
25MHz-600MHz
12 Bit Full HD
3D Video
4Kx2K@ 30/60HZ UHD
0.5~1.5Vp-p(TMDS)
5Vp-p(TTL)
Standard
DSD (Direct Stream Digital)
HD(HBR)
480i/480p/756i/756p/720p/1080i/1080p/
4Kx2K@ 24/25/30/60Hz
Baud Rate: 9600 bps
5VDC/1A
5W
3.8x2.3x0.66in
3.2oz
RS232 DC 5V
Power
Adapter
Rev1a
