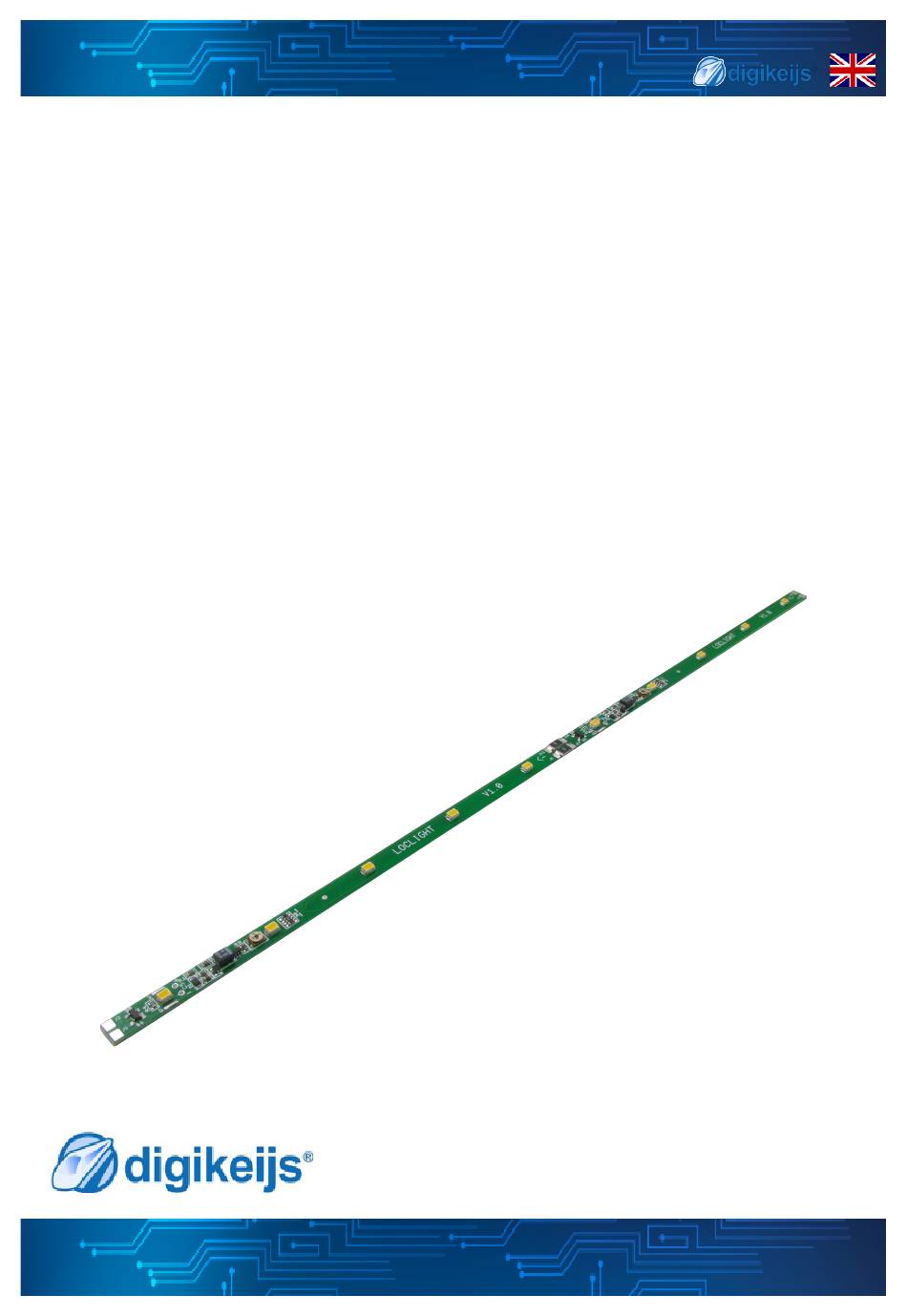

DR100/DR110 28cm led strip (yellow/white/warm white)
DR100/DR110 28cm led
strip (yellow/white/warm
white)
Manual
V1.0B
01-07-2021
© Copyright 2005 - 2021 Digikeijs, The Netherlands. All rights reser-
ved. Information, images or any part of this document may not be
copied without Digikeijs' prior written consent.
1
www.digikeijs.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digikeijs DR100

  • Page 1 DR100/DR110 28cm led strip (yellow/white/warm white) DR100/DR110 28cm led strip (yellow/white/warm white) Manual V1.0B 01-07-2021 © Copyright 2005 - 2021 Digikeijs, The Netherlands. All rights reser- ved. Information, images or any part of this document may not be copied without Digikeijs' prior written consent. www.digikeijs.com...
  • Page 2: Table Of Contents

    Installation of this LED strip is at your own risk. Digikeijs is not liable for damage caused to the wagon or other object. Digikeijs is also not liable for the lapsing of the guarantee of your wagon or other object.
  • Page 3: Product Description/Functions And Features

    DR100/DR110 28cm led strip (yellow/white/warm white) Product description General This LED strip with yellow, white or warm-white LEDs can be used to illuminate wagons, platform lighting or buildings. Functions and features The LED strip features a special circuit that always provides the LEDs with a constant vol- tage and also limits the maximum current consumption to 40mA.
  • Page 4: Shortening The Led Strip /Dividable Lengths

    DR100/DR110 28cm led strip (yellow/white/warm white) Shortening the LED strip You can bring the LED strip to the right length yourself depending on the size of your car- riage. This can be done with a pair of cutters, for example. The LED strip can be shorte- ned per LED.
  • Page 5: Adjusting Brightness/Anti-Blink Solution

    DR100/DR110 28cm led strip (yellow/white/warm white) Adjusting brightness All colour versions of the DR110 have an adjustable brightness by means of a miniature potentiometer (5). This can be turned with a small screwdriver to adjust the brightness. Do it yourself anti blink solution Why? It is possible to fit an extra capacitor per voltage group yourself.
  • Page 6: Connection Example

    DR100/DR110 28cm led strip (yellow/white/warm white) Connection example The LED strips are equipped with the correct connection options for the capacitors. The illustration below shows how to mount the capacitors. NOTE: Polarity is very important. So pay attention to plus and minus of the capacitor.
  • Page 7: Additional Product Numbers

    DR100/DR110 28cm led strip (yellow/white/warm white) Additional product numbers DR60005 Contacts H0 10 pieces DR60010 Contacts N 10 pieces DR60023 Capacitor 220uF /16V 20 pieces DR60024 Capacitor 470uF/16V 10 pieces DR60025 Capacitor 1000uF/16V 10 Pieces DR60026 Capacitor 2200uF/16V 5 Pieces...

This manual is also suitable for:

Dr110
