Ready to get started with your LiteDimmer Plus?
LiteDimmer Plus DC200 Duo and LiteDimmer Plus AC400
Duo are our flagship Plus Series power units. Compatible
with all LiteMat Plus, LiteTile Plus, and all Plus compatible
"Powered by LiteGear" lighting products.
CONTROLS & CONNECTIONS
Controls & Connections

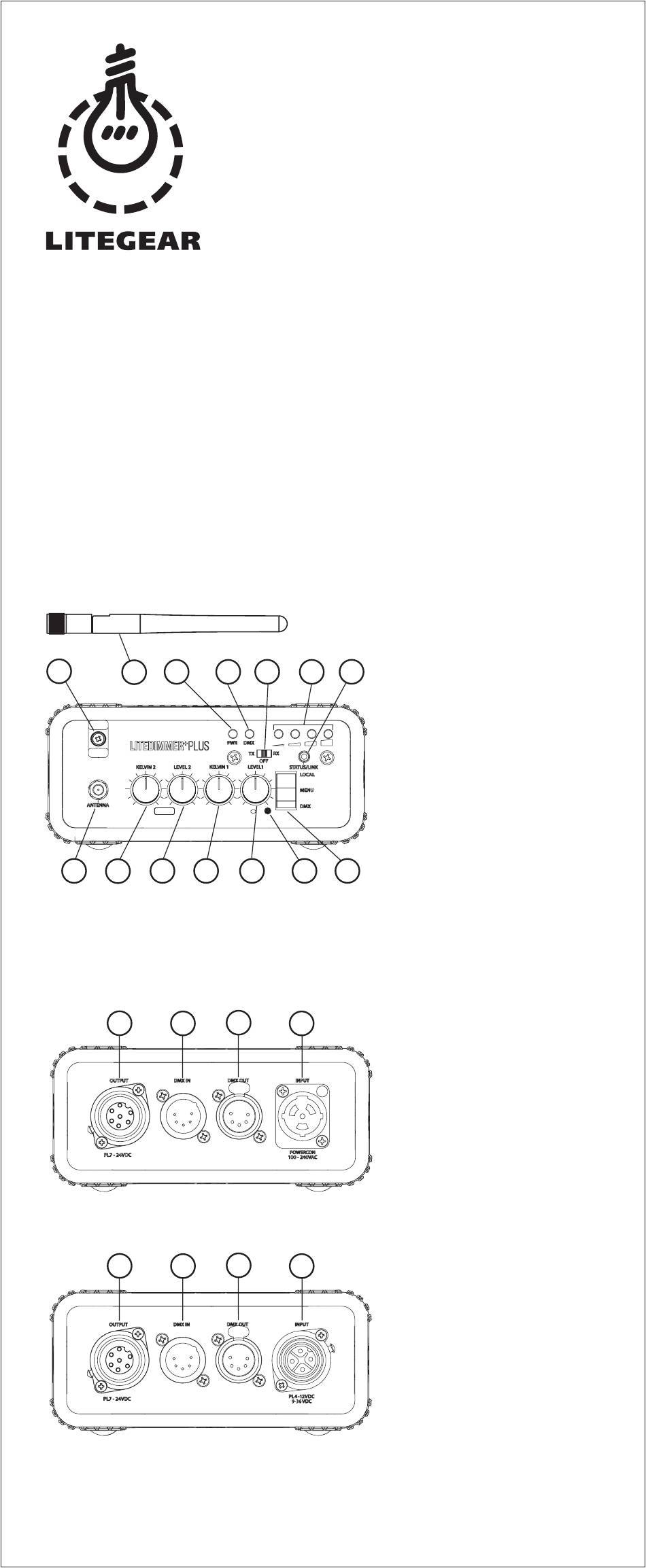

Control Panel - LiteDimmer Plus AC400/DC200 DUO
A
B
N
L
M
Connections Panel - LiteDimmer Plus AC400 DUO
O
Connections Panel - LiteDimmer Plus DC200 DUO
S
2
TM
C
D
E
J
K
Q
P
T
U
LITEDIMMER plus
dc200 duo
LITEDIMMER plus
ac400 duo
A Antenna Storage Clip
B Antenna
C Wireless Power Indicator
G
F
D DMX Indicator
E TX (Transmit)/OFF/RX (Receive)
Switch
F Wireless Signal STR
Indicator Light
G Status/Link Button
H Main 3-Position Switch
I Mode Indicator Light
J LEVEL 1 Knob
K KELVIN 1 Knob
L LEVEL 2 Knob
I
H
M KELVIN 2 Knob
N Antenna Jack
R
O DC Output PL7-24VDC
P DMX Input 5-PIN XLR
Q DMX Output 5-PIN XLR
R AC Input POWERCONN
100-240VAC 264VAC MAX
V
S DC Output PL7-24VDC
T DMX Input 5-PIN XLR
U DMX Output 5-PIN XLR
V DC Input PL4 CONN
9-36VDC
Advertisement
Table of Contents
Summary of Contents for LiteGear LiteDimmer Plus DC200 Duo
- Page 1 LITEDIMMER plus ac400 duo Ready to get started with your LiteDimmer Plus? LiteDimmer Plus DC200 Duo and LiteDimmer Plus AC400 Duo are our flagship Plus Series power units. Compatible with all LiteMat Plus, LiteTile Plus, and all Plus compatible “Powered by LiteGear” lighting products.
- Page 2 • Connect the Plus compatible fixture to the PL7 outpu (Be sure to observe wattage requirements for both t and the LiteDimmer Plus Dimmer ballast). • For LiteDimmer Plus DC200 Duo provide DC power t PowerCON connector. (Battery or Power Supply sold separately...
