Summary of Contents for MM CONCRETE WEBSTER

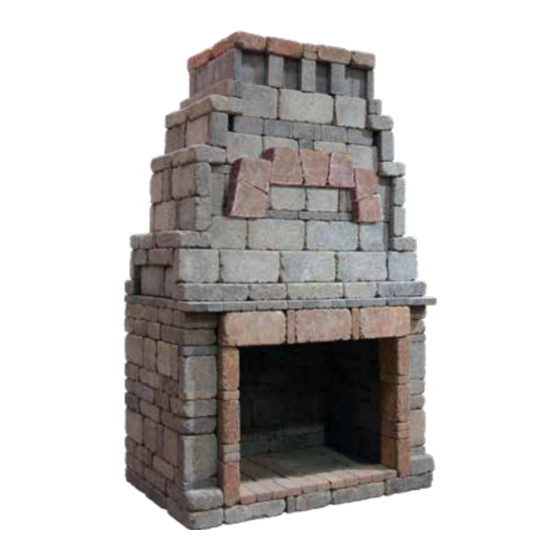

- Page 1 WEBSTER FIREPLACE Autumn Blend: 198-6278 Quarry Gray: 198-6275 Sienna: 198-6276 Tan: 198-6277 Approximate Weight: 7,360 lbs Approximate Size: 8' 3¾" H × 4' 11½" W × 3' 6" D mmconcrete.com...
-
Page 2: Additional Materials
CONCRETE BLOCK MATERIALS BELGIAN WALL BLOCKS PRODUCT DESCRIPTION QUANTITY COLOR LARGE MEDIUM SMALL WEDGE L Tumbled Belgian Wall Color of Choice Autumn Blend 179-3640 179-3724 179-3734 179-3639 L Tumbled Belgian Wall - Color 2 Color of Choice Quarry Gray 179-3650 179-3721 179-3731 179-3649... - Page 3 RESPONSIBILITIES: TOOL CHECK LIST: It is the responsibility of the owner to ensure compliance with all applicable laws, codes and regulations for any project. Proper safety precautions must be taken prior to and during the construction of each project. Level Please follow standard safety guidelines and wear necessary protective equipment when building and using Protective Equipment your new backyard addition.
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Fasten each layer of block together with ¼" - ⅜" bead of fire pit adhesive on adjacent block faces unless otherwise noted. Refer to the adhesive’s application instructions for proper use. Do not over apply adhesive. It may reduce effectiveness. Use mineral spirits to remove any unwanted adhesive. Follow suggestions on page 3 to build a proper foundation before starting your new project. -
Page 5: Fireplace Dimensions
TABLE OF CONTENTS FIREPLACE DIMENSIONS Materials List Tool Check List Foundation Guidelines Level 1 - Level 2 Level 3 - Level 4 Level 5 - Level 6 Level 7 - Level 8 Level 9 - Level 10 Level 11 - Level 12 Level 13 - Level 14 Level 15 - Level 16 Level 17 - Level 18... - Page 6 LEVEL 1 LEVEL 2 (22) Large Belgian Wall (7) Large Belgian Wall (4) Medium Belgian Wall (5) Medium Belgian Wall (8) Small Belgian Wall (2) Medium Belgian Wall - Color 2 (3) Small Belgian Wall (11) Small Belgian Wall - Color 2...
- Page 7 LEVEL 3 LEVEL 4 (3) Large Belgian Wall (7) Large Belgian Wall (7) Medium Belgian Wall (18) Medium Belgian Wall (9) Small Belgian Wall (6) Small Belgian Wall (4) Small Belgian Wall - Color 2...
- Page 8 LEVEL 5 LEVEL 6 (6) Large Belgian Wall (5) Large Belgian Wall (4) Medium Belgian Wall (6) Medium Belgian Wall (2) Medium Belgian Wall - Color 2 (2) Small Belgian Wall...
- Page 9 LEVEL 7 LEVEL 8 (4) Large Belgian Wall (8) Large Belgian Wall (8) Medium Belgian Wall (14) Medium Belgian Wall (2) Medium Belgian Wall - Color 2 (12) Small Belgian Wall (8) Small Belgian Wall (2) Small Belgian Wall - Color 2 Stacked Small Stacked Small Belgian Wall...
- Page 10 LEVEL 9 LEVEL 10 (3) 1¾”× 4’ Square Tube Steel (5) Large Belgian Wall (4) Medium Belgian Wall (16) Firebrick 6-packs (8) Small Belgian Wall See page 4 for instructions on firebrick installation.
- Page 11 LEVEL 12 LEVEL 11 (8) Large Belgian Wall (3) Large Belgian Wall - Color 2 (6) Medium Belgian Wall (2) Small Belgian Wall - Color 2 (2) Small Belgian Wall Glue blocks together before attaching them to the fireplace. Apply adhesive to the back side of the Belgian large wall blocks. Then use 2×4’s and straps to hold the keystones tight against the fireplace while adhesive drys.
- Page 12 LEVEL 13 LEVEL 14 (56) Small Belgian Wall (10) Large Belgian Wall (8) Medium Belgian Wall (4) Small Belgian Wall...
- Page 13 LEVEL 15 LEVEL 16 (2) Large Belgian Wall (6) Large Belgian Wall (2) Medium Belgian Wall (4) Medium Belgian Wall (6) Small Belgian Wall...
- Page 14 LEVEL 17 LEVEL 18 (2) 1¾"× 4’ Square Steel Tube (8) Large Belgian Wall (4) Medium Belgian Wall (4) Small Belgian Wall...
- Page 15 LEVEL 20 LEVEL 19 (5) Large Belgian Wall (6) Small Belgian Wall (3) Medium Belgian Wall (3) Small Belgian Wall...
- Page 16 LEVEL 22 LEVEL 21 (4) Medium Belgian Wall (3) Large Belgian Wall (6) Small Belgian Wall (5) Medium Belgian Wall (17) Small Belgian Wall...
- Page 17 LEVEL 24 LEVEL 23 (4) Large Belgian Wall (2) Large Belgian Wall (8) Medium Belgian Wall (2) Medium Belgian Wall (4) Small Belgian Wall (6) Small Belgian Wall...
- Page 18 LEVEL 25 LEVEL 26 (20) Small Belgian Wall (6) Large Belgian Wall (4) Medium Belgian Wall...
- Page 19 LEVEL 27 LEVEL 28 (16) Small Belgian Wall (38) Small Belgian Wall...
- Page 20 LEVEL 29 LEVEL 30 (4) Large Belgian Wall - Color 2 (7) Belgian Wedge - Color 2 (4) Medium Belgian Wall - Color 2 (4) Small Belgian Wall - Color 2 Glue blocks together before attaching them to them to the fireplace.
- Page 21 FIREPLACE ELEVATIONS Back View Front View Top View Left View Right View...
-
Page 22: Use And Maintenance
USE & MAINTENANCE With proper use and maintenance you can enjoy this new addition to your landscape for years to come. FIREPLACE USE: • When using your fireplace, always follow burning regulations in your area, keep the area free from combustible material and never leave a fire unattended.
