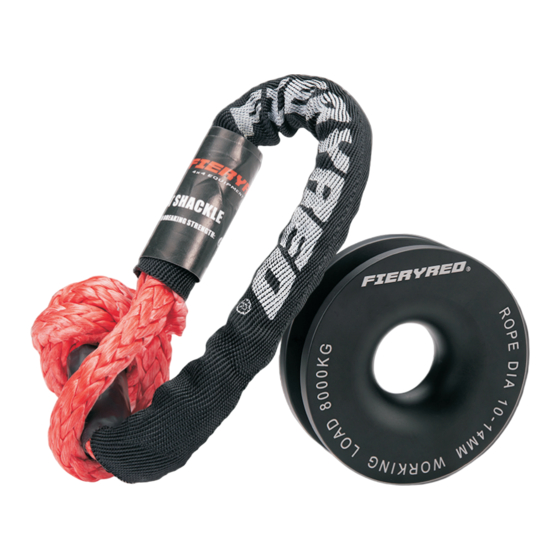

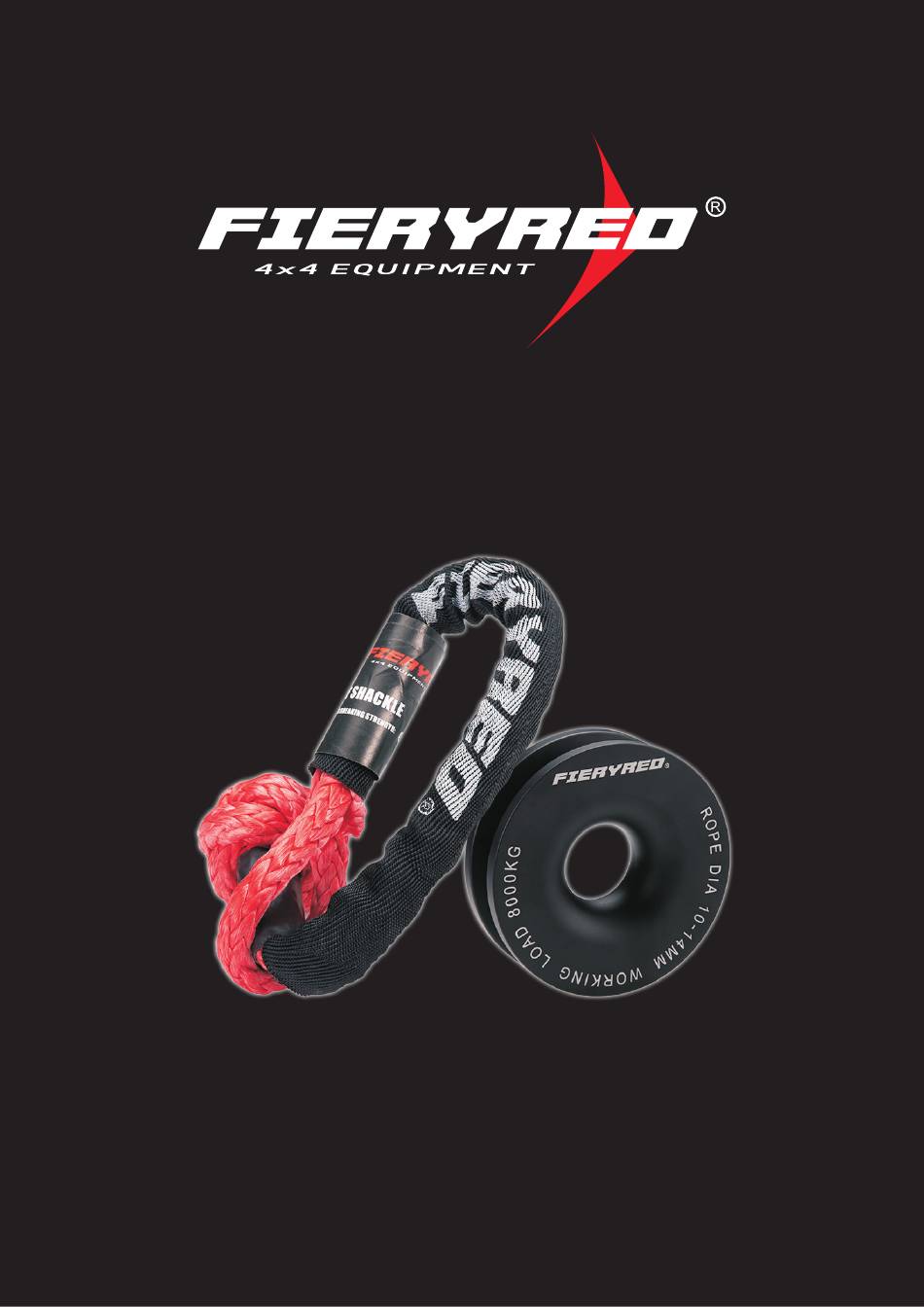

- Page 1 4X4 RECOVERY KIT Soft Shackle & Winch Ring INSTRUCTION MANUAL Please read this manual carefully before use K-WIN-RING100-S V1.0...
- Page 2 Fieryred, founded in March, 2016 and born of the passion to fulfill four-wheel drive lovers' demand for affordable, yet high quality 4x4 equipment, takes prides in designing, engineering and providing rock solid 4x4 products to let you rediscover the fun of off-roading.
- Page 3 WARNINGS AND SAFETY INSTRUCTIONS Only attach the soft shackle to recovery points which are designed for compatibility with soft shackles. This typically means they have rounded edges around the eye to prevent damaging the fibres of the soft shackle. The soft shackle is ideal for connecting snatch straps, kinetic ropes and winch ropes to recovery points, or for joining straps or ropes together.
- Page 4 SPECIFICATIONS Shackle Winch Ring Shackle Color: Vermilion Winch Ring Material: T6 6061 Aircraft Grade Aluminum Shackle Material:UHMWPE Winch Ring Surface Finish: E-Coating Shackle Rope Length (Without Knot & Eye): Diameter: 97mm 20.08'' (51cm) Shackle Rope Diameter: 0.98'' (25mm) Compatible Rope Diameter: 10-14mm Breaking Strength: 33,000 lbs (15,000kg) Working Load: 17,637lbs (8,000kg) Sleeve Color: Black...
- Page 5 If it fails to operate during the limited warranty period due to defects in materials or workmanship, Fieryred will, at its option, replace it with the same or similar product, or issue a refund. This limited warranty is provided by Fieryred and there are no other warranties, expressed or...
