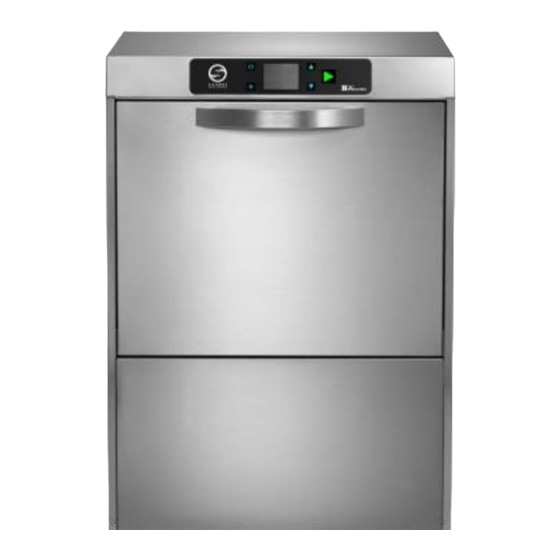

INSTALLATION INSTRUCTIONS
Read the ORIGINAL MANUAL OF INSTRUCTION supplied with the machine carefully before installing and
using the machine for the first time.
Models with Osmosis integrated
This is a safety alert symbol. The symbol alerts you to potential dangerous hazards.
All safety messages mean you must follow immediatly the instructions to avoid to
be seriously injured.
These instructions are for qualified technicians who install, commission, test and
possibly carry out maintenance on the machine.
Indicate suggestions for use, description of commands and proper
dishwasher cleaning and maintenance.

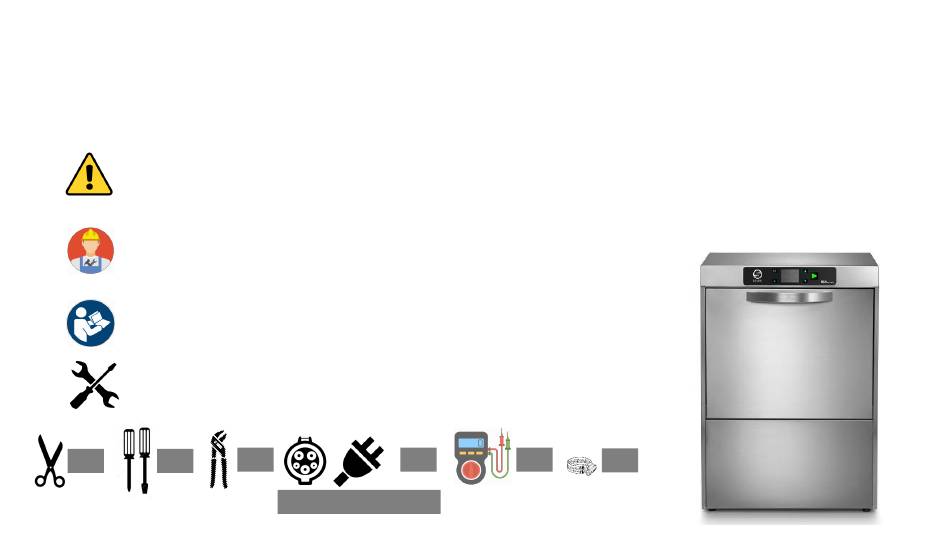

Recommended tools and parts for proper installation:
X 1
X 1
X 1
10/05/2019
(REV. 1 march 19 - annex of original manual of instruction).
X 1
SINGLE OR 3PHASES PLUG
X 1
X 1
1
Advertisement
Related Manuals for SILANOS Evolution
Summary of Contents for SILANOS Evolution
- Page 1 INSTALLATION INSTRUCTIONS (REV. 1 march 19 - annex of original manual of instruction). Read the ORIGINAL MANUAL OF INSTRUCTION supplied with the machine carefully before installing and using the machine for the first time. Models with Osmosis integrated This is a safety alert symbol. The symbol alerts you to potential dangerous hazards. All safety messages mean you must follow immediatly the instructions to avoid to be seriously injured.
- Page 2 10/05/2019...
- Page 3 SAFETY WARNINGS Read the original handbook carefully before installing and using the dishwasher for the first time. INLET WATER Ø 3/4 “ If the electrical and plumbing systems have to be adapted to install the dishwasher, DRAIN WATER Ø 1”1/4 “ these modifications must be carried out by ELECTRICAL CONNECTION authorized professionals.
- Page 4 INSTALLATION GENERAL WARNINGS Water supply temperature °C Max 30 If the electrical and plumbing systems have to be adapted to install the machine, these modifications must be Water supply hardness 7 – 12 °F carried out by authorised professionals. Water supply pressure 200/400 •...
-
Page 5: Water Connection
9 WATER CONNECTION Make sure the dynamic pressure of the mains water is minimum200 kPa to ensure the perfect operation of the machine. The temperature of the supply water must be maximum 30°C Each machine is supplied with 2 water filling hoses with threaded 3/4”fitting. The drainage hose is to be connected, after adding a siphon, directly to the drains. -
Page 6: Carbon Filter
9.2 WATER AND FILTER CONNECTION Install the carbon or mesh filter supplied on the water supply cock. The water hardness must be between 7 and 12°F and the maximum temperature 30°C. The filters must be replaced at least twice a year. Failed observance of these parameters will cause the internal osmotic membrane to deteriorate rapidly. - Page 7 10 LEVEL AND DOSING PIPES LEVEL THE DISHWASHER AND ADJUST FEETS Only use detergents and rinse aids specific for industrial machines. OSMOTIC WATER NEEDS SPECIFIC DETERGENT AND RINSE AID. RINSE AID DETERGENT Do not use normal washing up liquid. CRYSTAL PIPE RED PIPE Do not use detergents for domestic machines.
-
Page 8: Electrical Connection
11 ELECTRICAL CONNECTION The electrical connection must be carried out according to technical standards currently in force. Make sure the measured mains voltage matches that written on the technical data nameplate of the machine. You have to fit an appropriate omnipolar protection circuit breaker switch suitable for the input of the machine. This switch must be used exclusively for this utility and installed right next to it. - Page 9 TEMPERATURES DOSING Read the ORIGINAL MANUAL OF INSTRUCTION supplied with the machine carefully for setting temperatures and dosing...
