Summary of Contents for RADLEY 1282-405

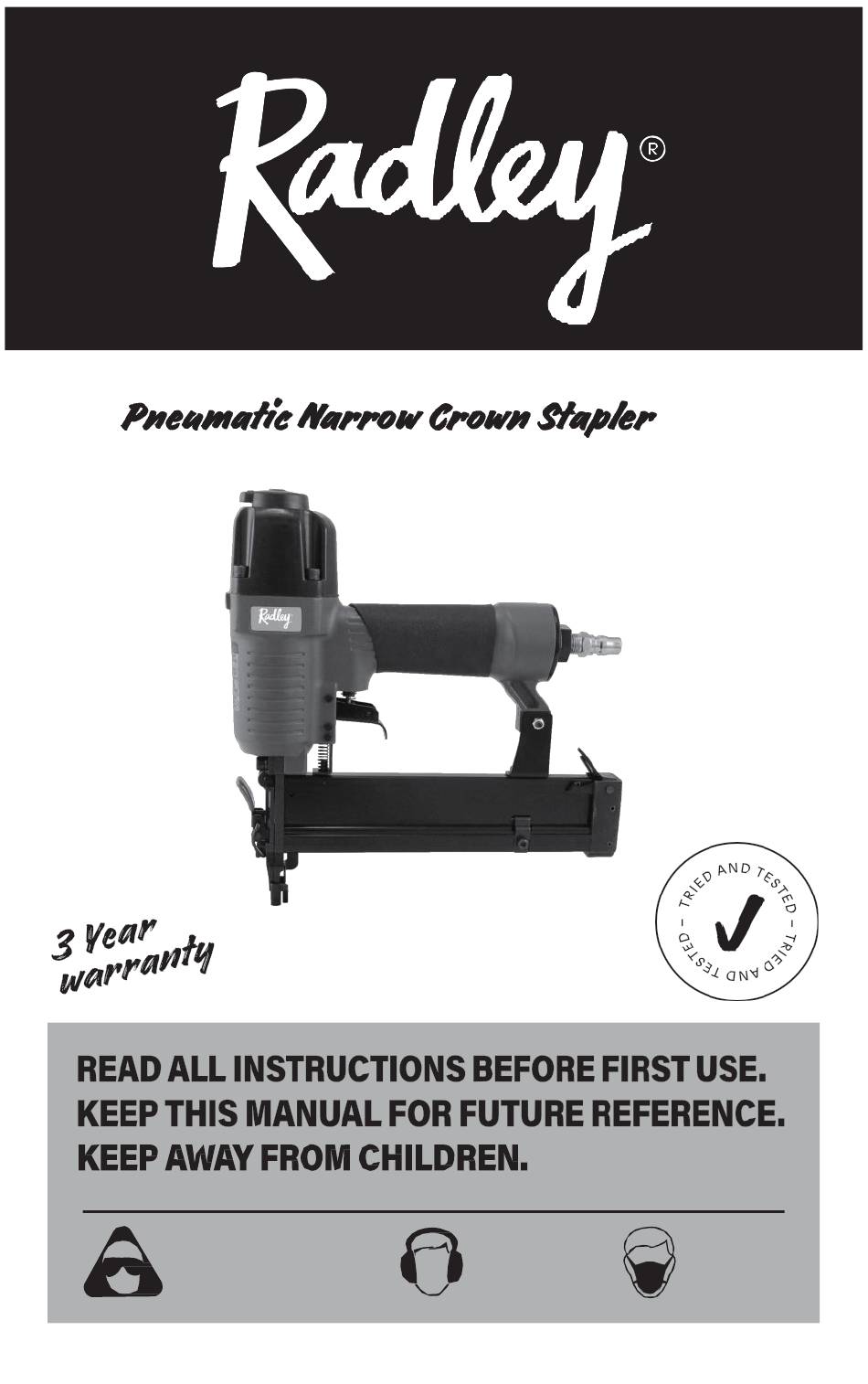

- Page 1 OWNER’S MANUAL 3 Year Limited Warranty WEAR CSA APPROVED WEAR EAR WEAR FACE EYE PROTECTION PROTECTION PROTECTION...
- Page 2 Magazine Capacity 18 Gauge /8 to 1- 1/2'' Long Fastener Capacity Staple 1/4" Narrow crown Max PSI 120PSI Average Air Consumption 0.9CFM @ 90PSI Working pressure 70-110 PSI Air inlet Recommended hose 1/4"or 3/8" Magazine angle 90° Weight 3.1lb (1.5kg) Call us on our toll-free customer support line: 1-866-349-8665 (Monday through Friday 9am –...
- Page 3 1282-405 Product Speci cations ..................1 Table of Contents ....................2 Symbols ........................7 Tool Specific Warnings ..................8 Know your 18Ga Pneumatic Narrow Crown Stapler ......... 9 Assembly and Operating .................. 10-14 Maintenance ......................15-17 Exploded View ......................18 Parts List .......................
- Page 4 This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it thoroughly before using the product. The symbols listed below are used to indicate this information. Potential hazard that will result in serious injury or loss of life.
- Page 5 1282-405 Do not use oxygen or any other combustible or bottled gas to power air-powered tools. Failure to observe this warning Oxygen can cause explosion and serious personal injury or death. Hydrogen Use only the compressed air to power the air-powered tools.
- Page 6 1282-405 Keep children away from the work area. Do not allow children to handle power tools. Do not use this tool in the presence of ammable liquids or gases. Sparks that are created during use may ignite gases. Keep air hose away from heat, oil, and sharp edges. Check air hose for wear before each use and ensure that all connections are proper.
- Page 7 1282-405 before performing any maintenance or changing accessories, when clearing a jammed fastener, when the tool is not in use, when it is being handed to another person, and when it is left unattended. Failure to comply may result in moderate injury or damage to equipment.
- Page 8 1282-405 • • • • • • • •...
- Page 9 1282-405...
- Page 10 1282-405 The 18 Gauge / ” Narrow Crow n Pneum at i c St apl er i s i deal f or al l general - purpose w ood f as t eni ng. The l i ght w ei ght , narrow body t ool i s eas y t o handl e, m aki ng i t i deal f or i ns t al l i ng t ri m i n t i ght areas .
-
Page 11: Air Compressor
1282-405 Always use clean, dry, regulated, compressed air at 4.8 to 7.5 bar (70 to 110 PSI) Do not exceed the maximum or minimum pressures. Operating the tool at the wrong pressure (too low or too high) will cause excessive noise or rapid wear of tool. - Page 12 1282-405 Read and follow all the safety instructions at the beginning of this manual. Inspect the air- powered tool prior to each use in order to: -Ensure that the proper power source is being used. -Verify that the tool is in proper working order.
- Page 13 1282-405 1. Disconnect the tool (1) from the air hose (2). 2. Take hold of the stapler rmly with one hand and use the other hand to press the latch (1) on the magazine (2) and slide it back to open. Insert a strip of staples into the magazine.
- Page 14 1282-405 Single-Sequential Actuation To operate the tool, first position the Workpiece Contact (nose of tool) on the work surface, WITHOUT PULLING THE TRIGGER. Depress the Workpiece Contact until the Workpiece contact (nose of tool) touches the work surface and then pull the trigger to drive a fastener. Do not press the tool against the work with extra force.
- Page 15 1282-405 If it is necessary to store the tool for an extended period of time, apply a generous amount of lubrication before storing. The tool should be allowed to run for approximately 30 seconds after lubricating, in order to ensure that the lubrication is uniformly distributed throughout the tool.
- Page 16 1282-405 If any of the following symptoms appear while the tool is in use, turn it off and disconnect it from the air supply immediately. Failure to comply will lead to serious injury or loss of life. Disconnect the tool from the air supply before making any adjustments.
- Page 17 1282-405 1. The bumper is worn. 1. Replace the bumper. The staples are 2. The air pressure is 2. Adjust the air pressure. being driven too high. too deep. The tool does 1. Verify that the air supply is 1. The air supply is not operate adequate.
- Page 18 1282-405...
- Page 19 1282-405 When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the tool. Any attempt to repair or replace electrical parts on this tool may create a safety hazard unless repairs are performed b a quali ed technician.
- Page 21 1282-405...
- Page 22 If this Radley tool fails due to a defect in material or workmanship within three years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. Two years for battery and charger. This warranty does not include expendable parts including but not limited to blades, brushes, belts, and light bulbs.
- Page 23 OWNER’S MANUAL 3 Year Limited Warranty on tool 1282-405 RADLEY TOOLS READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. WEAR CSA APPROVED WEAR EAR WEAR FACE EYE PROTECTION PROTECTION PROTECTION...
