Kinematic Company
1976 McCain Pkwy
Pelham, AL 35124
SIDELINER SETUP AND TAKEDOWN
1. SCOPE
1.1. To provide instruction for set up and takedown of SidelinER PRO.
2. REQUIRED COMPONENTS
2.1. SidelinER frame
2.2. SidelinER cover
2.3. Branding (optional)
2.4. Travel Case (optional)
2.5. Duffel (optional)

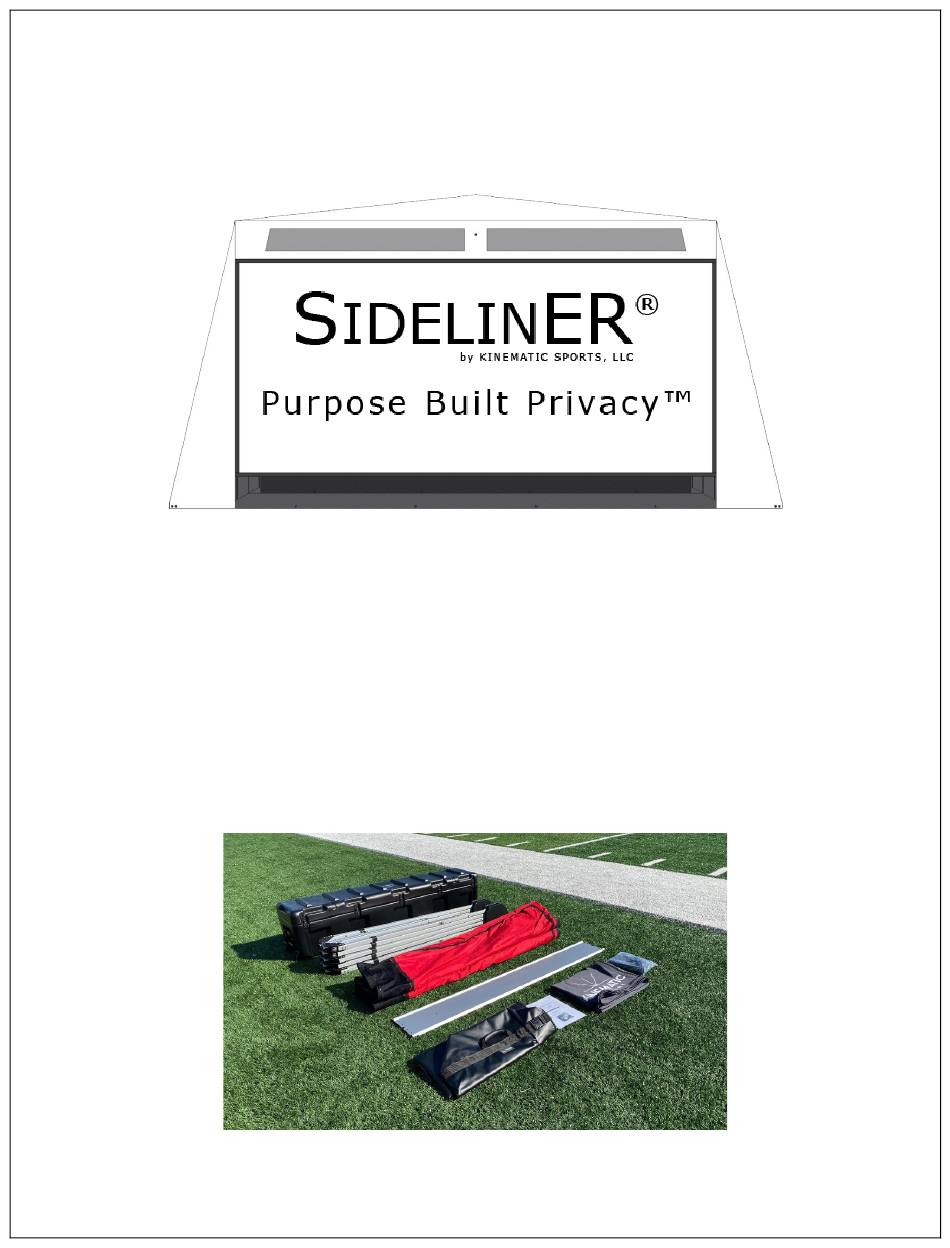

Figure 2 Required Components
Page 1
Document Number
1911
Revision: D

Advertisement

loading
Need help?

Need help?

Do you have a question about the SidelinER PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Kinematic SidelinER PRO

  • Page 1 1911 Pelham, AL 35124 Revision: D SIDELINER SETUP AND TAKEDOWN 1. SCOPE 1.1. To provide instruction for set up and takedown of SidelinER PRO. 2. REQUIRED COMPONENTS 2.1. SidelinER frame 2.2. SidelinER cover 2.3. Branding (optional) 2.4. Travel Case (optional) 2.5.

  • Page 2: Frame Assembly

    Revision: D 3. FRAME ASSEMBLY 3.1. Remove the SidelinER PRO frame from its shipping container and remove the protective foam pieces. 3.2. Unscrew the four knobs connecting the left and right hub. Separate them just enough for the studs to become free.
  • Page 3 Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D 3.4. Lay the frame on the ground and rotate the top two frame sections over to the opposite side. Figure 3.4 Lay Out the Frame 3.5. Push outward on all five upper sections until the truss system locks in place. There are 10 sliders that need to locked.
  • Page 4 Figure 3.7, may be necessary to align the holes in the vertical support with the holes in the hub. Remove the hub pins in Step 6.1 before operating your SidelinER PRO. Figure 3.7 Raise the Center Support 3.8.
  • Page 5 Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D Figure 4.1 Unfold the Cover 4.2. Place the center of the cover on the frame so the center aligns with the peak. There is a square reinforcement on the inside of the cover that should align with the peak hinge. The stitching is visible from the outside.
  • Page 6 4.4. Attach the cover to the lower frame supports. There are four lower snaps per quadrant (16 total). Figure 4.4 Snap the Bottom 4.5. Moving inside your SidelinER PRO, attach the cover to the overhead center support using the one-wrap Velcro located on the left and right of the peak.

  • Page 7: Final Inspection

    Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D Figure 4.6 Snap the Corners 4.7. Secure the diagonal supports to the cover utilizing the same method as Step 4.3. 5. BRANDING ATTACHMENT 5.1. Remove the branded panel from its shipping container.
  • Page 8 Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D Figure 6.1 Remove Hub Pins 6.2. Slowly cycle the frame to ensure there is no binding. The frame has been designed to rotate very easily. If you experience any binding or tension, STOP. Return the frame to its previous state and check for locking pins or obstructions.
  • Page 9 Revision: D Figure 6.3 Sandbag 7. TAKEDOWN 7.1. Kinematic Sports recommends the cover be removed before storage to prevent damage to the cover during takedown and transportation. 7.2. Begin takedown with SidelinER in its fully expanded position. Figure 7.2 Fully Expanded 7.3.
  • Page 10 Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D Figure 7.4 Remove the Crossmember 7.5. Unlock the truss system (10 total) on each support. Alternate left and right sides of the same support before moving to the next support.
  • Page 11 Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D Figure 7.5.2 Disengage the Truss System (Right Side) 7.6. Telescope the diagonal tubes down to their travel position. Figure 7.6 Telescope Diagonal Tubes 7.7. Unzip the sleeves found above the doors and lower the diagonal supports to the ground.
  • Page 12 Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D Figure 7.7 Unzip the Door Sleeves 7.8. Unzip the sleeves found on both sides of the peak. Figure 7.8 Unzip the Peak Sleeves 7.9. Unfasten the two snaps found at the top of the vertical tubes.
  • Page 13 Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D Figure 7.10 Horizontal Tube Snaps 7.11. Remove the cover. The frame will now be in a flat position with the cross supports partially angled to the inside.
  • Page 14 7.14. Lay both hubs flat and install the four knobs to the four threaded studs. Figure 7.14 Knob Installation 7.15. Place SidelinER in a Kinematic Sports approved transportation case or travel duffle. 7.15.1. SidelinER covers should never be stored wet for extended periods of time. If takedown occurs during or shortly after a period of rain, SidelinER should be set up at the first available opportunity and allowed to dry in order to prevent mildew.
  • Page 15 Kinematic Company Document Number 1976 McCain Pkwy 1911 Pelham, AL 35124 Revision: D CONTROLLED DOCUMENT REVISION HISTORY Revision: A Revision Created: 07/04/2018 Approved By: Patrick Powell Revision Details: Document Created Revision: B Revision Created: 07/20/2018 Approved By: Patrick Powell Revision Details: 1.
