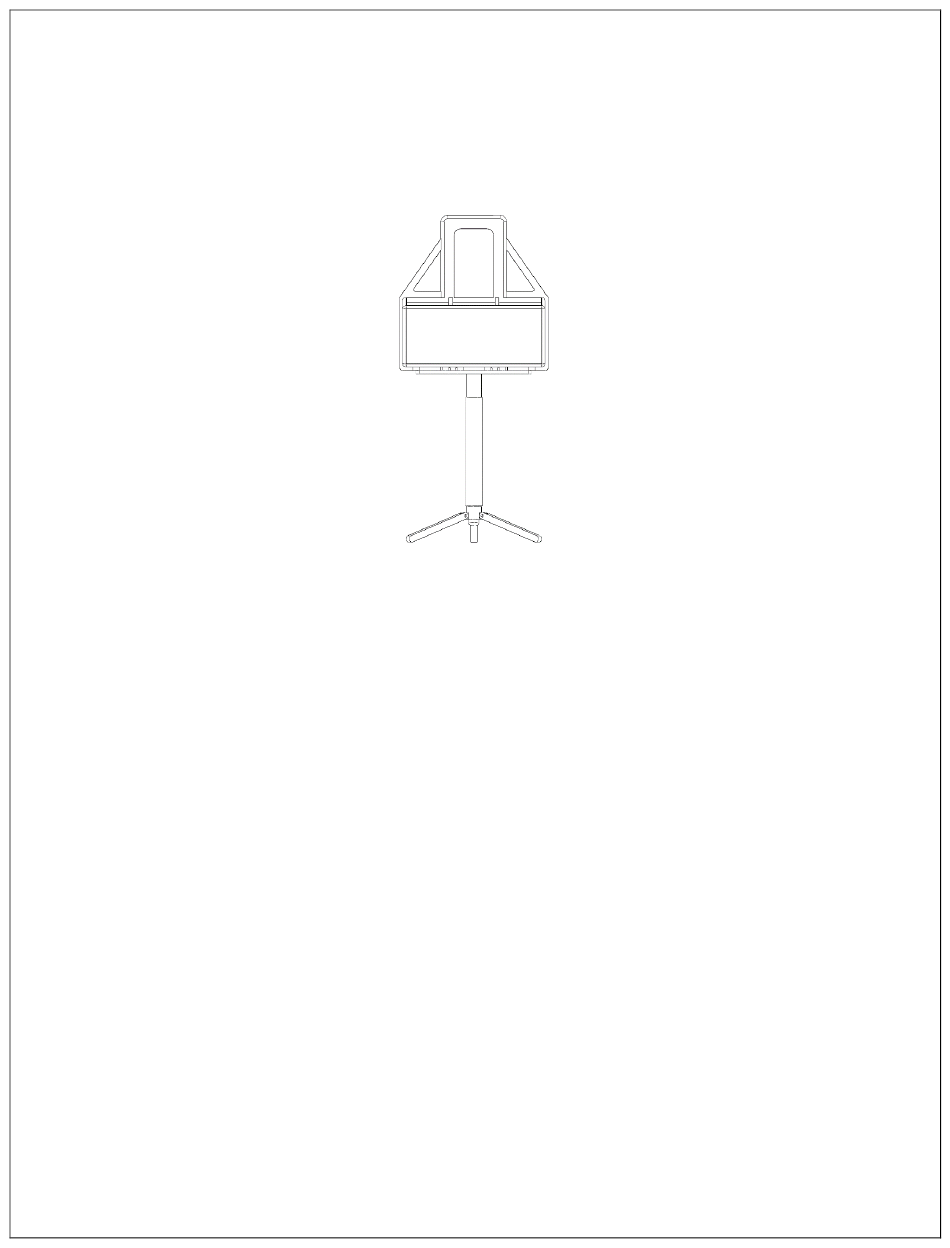

Kinematic Kickstand Installation Manual

Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
Kinematic Company
1976 McCain Pkwy
Pelham, AL 35124

1. SCOPE

1.1. To provide instruction for installing a Kickstand on a squeeze bottle caddy.

2. REQUIRED COMPONENTS

2.1. Kickstand Coupling Plate Set
2.2. Monopod
2.3. Monopod Base
2.4. Squeeze Bottle Caddy
2.5. 1/8" Allen wrench
2.6. Hardware Packet

3. SETUP

3.1. Place one of the coupling plates on a hard, level surface. This will be referred to as the bottom plate later
in the setup procedures.

3.2. Insert one of the larger hex nuts into the center cutout.

3.2.1. The thinner nut should be used on caddies where the center rib is flush with the caddy's feet.
3.2.2. The thicker nut should be used on caddies where the center rib is recessed above the caddy's feet.
KICKSTAND INSTALLATION
Page 1
Work Instruction (WI)
3874

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kickstand and is the answer not in the manual?

Questions and answers

Summary of Contents for Kinematic Kickstand

  • Page 1 3874 Pelham, AL 35124 Revision: A KICKSTAND INSTALLATION 1. SCOPE 1.1. To provide instruction for installing a Kickstand on a squeeze bottle caddy. 2. REQUIRED COMPONENTS 2.1. Kickstand Coupling Plate Set 2.2. Monopod 2.3. Monopod Base 2.4. Squeeze Bottle Caddy 2.5.
  • Page 2 Kinematic Company Work Instruction (WI) 1976 McCain Pkwy 3874 Pelham, AL 35124 Revision: A Figure 3.2 Positioning the Hex Nut 3.3. Place the caddy down onto the coupling plate. Figure 3.3 Positioning the Bottom Plate 3.4. Insert the second coupling plate through the top of the caddy and snap it down onto the bottom coupling plate.
  • Page 3 Kinematic Company Work Instruction (WI) 1976 McCain Pkwy 3874 Pelham, AL 35124 Revision: A 3.5. Lay the caddy on its side. 3.6. Insert a screw into each of the four slots in the bottom plate. Install a locknut onto each screw and finger tighten.
  • Page 4 Kinematic Company Work Instruction (WI) 1976 McCain Pkwy 3874 Pelham, AL 35124 Revision: A CONTROLLED DOCUMENT REVISION HISTORY Revision: A Revision Created: 01/31/2022 Approved By: Patrick Powell Revision Details: Document Created Revision: B Revision Created: XX/XX/XXXX Approved By: Patrick Powell Revision Details: 1.
