Summary of Contents for HYBRID POWER BATT PACK

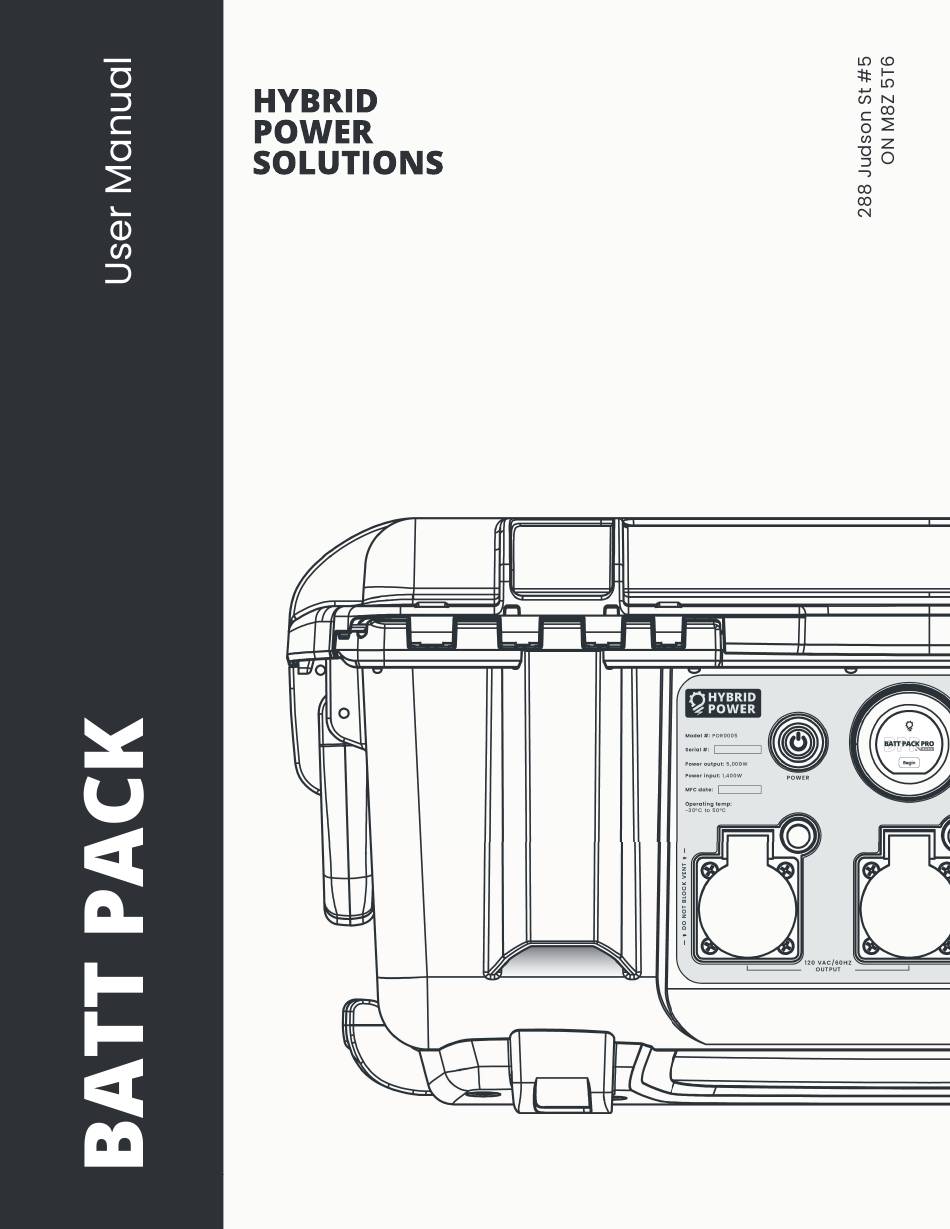

- Page 1 Manufactured by: hybridps.ca Batt Pack Pro - User manual - English...
- Page 2 Batt Pack Pro - User manual - English...
- Page 3 SHOCK HAZARD: Possible shock or death if used improperly, when damaged or used by untrained personnel. FLAMMABLE HAZARD: Lithium ion batteries contain flammable liquid electrolyte that may vent, ignite and produce sparks when subjected to high temperatures (> 150 °C (302 °F)), when damaged or abused (e.g., mechanical damage or electrical overcharge).
- Page 4 Manual INDEX Batt Pack - User manual - English...
- Page 5 CONTENT PAGE Introduction Safety Information Configuration Operation Solar Panel Purchasing + Wiring Guide Hardwire Instructions for Backup Power Troubleshoot Multipurpose DC Input Manual Warranty...
- Page 6 Batt Pack - User manual - English...
- Page 7 In case of damage inform us immediately. The Batt Pack is delivered to you in a ready to use state with 30% energy (+/-5%). However, please make sure you read through this user manual carefully. If you have further questions regarding the Batt Pack, please contact HPS.
- Page 9 This adapter can be supplied by HPS or other reputable suppliers. We do not include a GFCI as the Batt Pack may be used in various scenarios that either do, or do not require this device. The following is a general outline from the National Electrical Code (NEC).
- Page 10 10h. If the unit does not turn ON, please contact HPS technical support for further assistance. If internal components are heard/ believed to be loose inside/ rattling, please call HPS technical support. Batt Pack - User manual - English...
- Page 12 Designed to deliver the full potential of batteries by delivering 5000W of power. With an average life cycle of 8 to 20 years (depending on usage). Idle consumption of the Batt Pack is around 50W when in standby mode and should be added to your run time calculations.
- Page 13 3.3. Technical Specifications of the Batt Pack Pro Power 5,000W Bypass Power 1,200W 7,000W (500ms) Surge Power Sine Wave Pure Sine Wave 10,000W (10ms) Output Voltage Loaded Motor Capacity +3HP Threshold 64.7cm x 50.8cm x 30cm Energy 5.1kWh Dimensions [25.5in x 20in x 11.8in]...
- Page 14 3.4. Technical Specifications of the Batt Pack series Batt Pack Energy Batt Pack Pro Power 3,000W 5,000W 4,500W (500ms) 7,000W (500ms) Surge Power 6,000W (10ms) 10,000W (10ms) Loaded Motor Capacity +2HP +3HP Energy 2.5kWh 5.1kWh Chemistry LiFePO4 Cycles +3500 Cycles...
- Page 15 3.5. Batt Pack Energy General Dimensions 25.6cm [10.1in] 50.2cm [19.8in] 40.8cm [16.1in] Batt Pack - User manual - English...
- Page 16 3.6. Batt Pack Pro General Dimensions 30cm [11.8in] 64.7cm [25.5in] 50.8cm [20in] Batt Pack - User manual - English...
- Page 17 3.7. Batt Pack Control Board & Settings Indicator Product Details Touchscreen Display Control Knob Power Switch Output Port Circuit Breakers Input Charge Port Solar/Alternator Port Ventilation Opening Batt Pack - User manual - English...
- Page 18 Charging Screen Screen mode The charging screen shows the power inputted to the Batt Charging current Pack from the charging shown in Kilowatt port. Unit indicator Actual screen configurations may change after software updates. Batt Pack - User manual - English...
- Page 19 Screen mode This screen shows the Output power shown in amount of power the Kilowatt-hour Batt Pack is supplying to the connected device. Unit indicator Actual screen configurations may change after software updates. Batt Pack - User manual - English...
- Page 20 °F heating blanket using Temperature unit an average of 50W selector. Degrees °F of power in a -30°C selected [-22°F] environment. -22 °F 122 °F Actual screen configurations may change after software updates. Batt Pack - User manual - English...
- Page 21 2. Scan the QR code provided with the product (Make sure to be in the proximity of the device as the app use bluetooth to communicate). 3. Choose the wifi from the list and enter the ssid. 4. Press confirm to send wifi credentials to the Batt Pack. 3.8.2 Visualize Data 1. Go to https://portal.hybridps.ca 2.
- Page 23 When using the system in cold temperatures (below 0°C), discharge power may be limited and run time can be affected by up to 40%. The Batt Pack includes our Polarshield protection when using the system in sustained temperatures lower than 0°C [22°F] and will keep the battery warm.
- Page 24 Just as a car battery will be depleted and need to be replaced after prolonged storage with no charging, the Batt Pack will do the same. Always ensure that you charge the product after use and turn the unit off. A battery stored fully discharged may permanently damage the product.
- Page 25 4.4. Transporting and Shipping If shipping units is required, please ensure to list the Batt Pack with your shipper as a hazardous goods and follow all required precautions and regulations. The Batt Pack is a UN38.3 certified, class UN3481 (lithium ion battery in equipment). It is the shipper’s responsibility to ensure all paperwork and required packaging is in order.
- Page 26 4.7. Starting Motors Please exercise caution when powering motors with the Batt Pack. Most motors require 2-3 times their continuous operating amperage at start-up. Certain motors may require more amperage than can be produced. Note that the surge power of 10,000W is only sustained for 10ms and may not be long enough for some motors.
- Page 28 Connector Type 5.1.1. How to choose cable Cable selection is based on required distance from panel to Batt Pack. All 10AWG Solar Extension Cables with a MC4 connection are compatible with the Batt Pack. Please ensure you purchase a pair of cables; 1x for positive and 1x for negative.
- Page 29 Option 2. Low voltage power (12/24V): 18V & 36V DC A multimeter set to DC Voltage should be used to check panel voltage when exposed to sunlight to ensure the voltage is within the product specifications before plugging into the Batt Pack. Batt Pack - User manual - English...
- Page 30 Energy A multimeter set to DC Voltage should be used to check panel voltage when exposed to sunlight to ensure the voltage is within the product specifications before plugging into the Batt Pack. Batt Pack - User manual - English...
- Page 31 Legend A multimeter set to DC Voltage should be used to check panel voltage when exposed to sunlight to ensure the voltage is within the product specifications before plugging into the Batt Pack. Batt Pack - User manual - English...
- Page 32 A multimeter set to DC Voltage should be used to check panel voltage when exposed to sunlight to ensure the voltage is within the product specifications before plugging into the Batt Pack. Batt Pack - User manual - English...
- Page 34 3. AC Input 2 from the Automatic Transfer Switch is connected to the main panel power source (Mains/Shore Power). 4. AC Input 1 from the Automatic Transfer Switch is plugged into the Batt Pack output port. No special tools or plugs required (see manual).
- Page 36 Switch ON but gauge is off and no power charging. If the problem persists, connect unit via is being output. Wi-Fi to computer and check for any errors. Ensure unit is plugged in to charge during this process.. Batt Pack - User manual - English...
- Page 38 *24VDC version available via special order. 8.2. Input Source The alternator charging system allows for various DC inputs to charge the Batt Pack. The system will draw all available amperage up to 850W and is not current limited. It is therefore essential that the source has a current limiting device or allows for the maximum charging capability (up to 65A on 12V battery).
- Page 39 8.2.1 High Speed Vehicle Charger 13cm [5.1in] 22cm [8.6in] 3.5cm[1.3in] 7.5cm[2.9in] 7.5cm[2.9in] Charger Mounting Pattern Batt Pack 12AWG wire 3’ (1m) long output 10’ (3m) long input Starter Battery 6AWG wire [Optional] Ignition Circuit Breaker/Fuse Circuit Batt Pack - User manual - English...
- Page 40 12V, a battery isolator should be used. Please see the diagram in the next section. A low voltage disconnect rated for the appropriate amperage may also be used. Batt Pack - User manual - English...
- Page 41 Battery 8.5. Battery Isolation If the input source can be overdrawn by the Batt Pack, a battery isolator should be used to protect this input source. The following is the general wiring for a battery isolator, but specific instructions are provided by the chosen isolator manufacturer.
- Page 43 Please refer to this user manual to ensure proper user operation and operating conditions, which will ultimately prolong the life of the Batt Pack unit. The warranty does not cover negligence to this manual’s directions. Hybrid Power Solutions (HPS) warrants its products against defects in material and workmanship.
- Page 44 • Low voltage incident. 9.4 Recycling Please return the product to HPS for safe recycling. If the battery within the system is suspected to be damaged, please recycle at the closest electronics recycling facility. Batt Pack - User manual - English...
