Next MODE 857326 Manual

Next MODE 857326 Manual

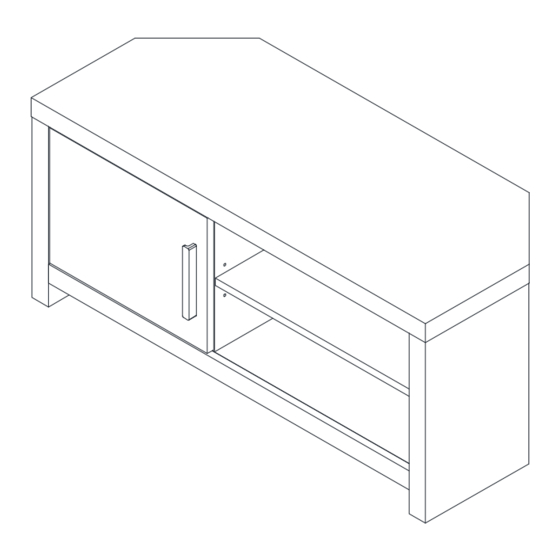

Corner tv unit

Advertisement

Quick Links

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is
found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of two persons is required to assemble this product.
PRODUCT INFORMATION
• Made from honeycomb board, hollow board , partical board & MDF with a wood effect finish.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if
necessary.
• Please do not apply adhesive substrates for example , sticky tape to the product.
• Please do not apply adhesive substrates for example , sticky tape to the product.
857326 MODE CORNER TV UNIT
857326 MODE CORNER TV UNIT
857326 MODE CORNER TV UNIT
857326 MODE CORNER TV UNIT
ASSEMBLY INSTRUCTIONS.
Page 1 of 5

Advertisement

loading

Summary of Contents for Next MODE 857326

  • Page 1 857326 MODE CORNER TV UNIT 857326 MODE CORNER TV UNIT 857326 MODE CORNER TV UNIT 857326 MODE CORNER TV UNIT ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0333 777 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is...
  • Page 2 FITTINGS PARTS STEP ONE 1. Insert 16 × cambolts (D) into panels 1, 2, 3 & 5 and tighten with a screwdriver. Page 2 of 5...
  • Page 3 STEP TWO 1. Glue and insert 2 x wooden dowels (A) into panel 2. 2. Attach panel 11 to panel 2. 3. Insert 3 x camlocks (C) into panel 2 and tighten with a screwdriver. Ensuring the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
  • Page 4 STEP FIVE 1. Glue(B) and insert 8 x wooden dowels (A) into panels 3, 4, 5, 6 & 7. 2. Attach panel 1 to panels 3, 4, 5, 6 & 7 . 3. Insert 8 x camlocks (C ) into panels 3, 4, 5, 6 & 7 and tighten with a screwdriver.
  • Page 5 STEP EIGHT 1. Insert 6 x plastic fasteners (L) into the back panel grooves and tighten with screws provided. Next Retail Ltd, Desford Road, Enderby, Leicester, LE19 4AT Page 5 of 5...
