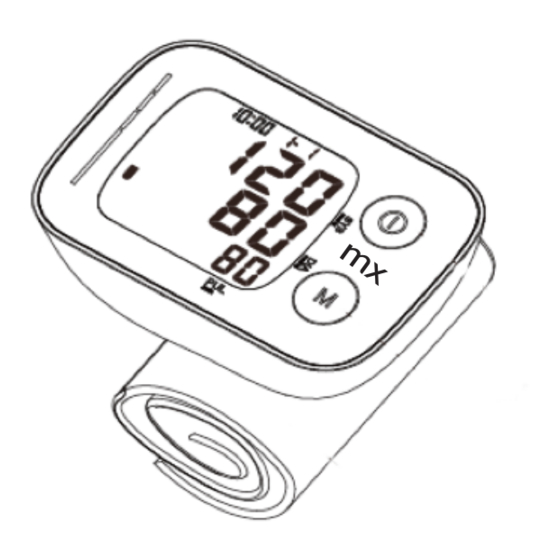

- Page 1 WRIST BLOOD PRESSURE MONITOR USER MANUAL MODEL: MX86007 Arrythmia TABLE OF CONTENTS Multi-users BP Indicator Detection (IHB) 120 Memories...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 CONTENTS AND DISPLAY INDICATORS . -
Page 3: Important Information
IMPORTANT INFORMATION NORMAL BLOOD PRESSURE FLUCTUATION All physical activity, excitement, stress, eating, drinking, smoking, body posture and many other activities or factors (including taking a blood pressure measurement) will influence blood pressure value. Because of this, it is mostly unusual to obtain identical multiple blood pressure readings. -
Page 4: Contents And Display Indicators
CONTENTS AND DISPLAY INDICATORS Low Battery Group Symbol Release Air Symbol Blood Pressure Level Classification Indicator Irregular Heartbeat Symbol "START/STOP" Button "MEMORY" Button Cuff INTENDED USE This fully Automatic Electronic Blood Pressure Monitor is for use by medical professionals or at home to measure the diastolic and systolic blood pressures and pulse rate of an adult individual by using a non-invasive technique in which an inflatable cuff is wrapped around the wrist. -
Page 5: Contraindication
CONTRAINDICATION It is inappropriate for people with serious arrhythmia to use this Electronic Sphygmomanometer. PACKAGE CONTENTS 1 Blood Pressure Monitor With Attached Wrist Cuff 1 Operation Guide 1 Plastic Bag PRODUCT DESCRIPTION Based on Oscillometric methodology and silicon integrated pressure sensor, blood pressure and pulse rate can be measured automatically and non- invasively. -
Page 6: Specifications
SPECIFICATIONS 1. Product name: mx™ Wrist Blood Pressure Monitor 2. Model: MX86007 3. Classification: Internally powered, Type BF applied part,IP22,No AP or APG,Continuous operation 4. Machine size: Approx. 89mm x 60mm x 31mm 5. Cuff circumference: 14cm - 19.5cm(5 1/2" - 7 11/16") 6. -
Page 7: Notice
NOTICE 1. Read all of the information in the operation guide and any other literature in the box before operating the unit. 2. Stay still, calm and rest for 5 minutes before blood pressure measurement. 3. The cuff should be placed at the same level as your heart. 4. - Page 8 blood pressure monitor be kept 30 cm away from other wireless devices, such as WLAN unit, cell phone, microwave oven, etc. It can’t be used near active HF SURGICAL EQUIPMENT and the RF shielded room of an ME SYSTEM for magneticresonance imaging, where the intensity of EM DISTURBANCES is high.
- Page 9 — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. 17. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference...
-
Page 10: Setup And Operating Procedures
SETUP AND OPERATING PROCEDURES BATTERY LOADING a. Open battery cover at the back of the monitor. b. Load two “AAA” size batteries. Please pay attention to polarity. c. Close the battery cover. • When the screen shows the battery symbol replace all batteries with new ones. -
Page 11: Clock And Date Adjustment
d. Press the button “START/STOP” repeatedly, the year, month, day, hour and minute will blink in turn, see picture 2- 2 & 2-3 & 2-4 & 2-5 & 2-6. While the number is blinking, press the button “MEM” to increase the number, keep on pressing the button "MEM", the number will increase faster. -
Page 12: Connecting The Cuff To The Monitor
3. CONNECTING THE CUFF TO THE MONITOR The cuff is attached to the monitor when it is packaged. Should the cuff become unattached, align the two plugs and four brackets of the cuff with the plug sockets and bracket sockets of the monitor and press the cuff to the monitor until the plugs and brackets are securely attached. -
Page 13: Applying The Cuff
4. APPLYING THE CUFF a. Place the cuff around a bare wrist 1-2cm above the wrist joint on the palm side of the wrist. b. While seated, place the arm with the cuffed wrist in front of your body on a desk or table with the palm up. If the cuff is correctly placed, you can read the LCD display. -
Page 14: Displaying Stored Results
b. Then the current memory bank is displayed. Press “MEM” button to change over to other bank. Confirm your selection by pressing “START/STOP” button. The current bank can also be confirmed automatically after 5 seconds with no operation. c. Then the monitor inflates the cuff until sufficient pressure has built up for a measurement. - Page 15 c. Press the “MEM” button again, and the screen will display the average value of all the results which is measured from 18h00 to 20h00 in last 7 days in the current user memory zone. (See picture 7-5). If no result is stored from 18h00 to 20h00 in last 7 days, the screen display “0”...
-
Page 16: Deleting Measurements From The Memory
8. DELETING MEASUREMENTS FROM THE MEMORY When a result is displayed, hold the “MEM” button in for three seconds, all results in current bank will be deleted. Press the button “START/STOP”, and the monitor will turn off. 9. ASSESSING HIGH BLOOD PRESSURE FOR ADULTS The following guidelines for assessing high blood pressure (without regard to age or gender) have been established by the World Health Organization (WHO). -
Page 17: Technical Alarm Description
10. TECHNICAL ALARM DESCRIPTION The monitor will show 'HI' or 'Lo' as a technical alarm on the screen with no delay if the determined blood pressure (systolic or diastolic) is outside the rated range specified in SPECIFICATIONS. In this case, you should consult a physician or check if your operation violated the instructions. -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The cuff position was not Apply the cuff correctly and correct or it was not properly try again. tightened Review the “BODY POSTURE Body posture was not correct DURING MEASUREMENT” during testing sections of the instructions and re-test. -
Page 19: Maintenance
PROBLEM POSSIBLE CAUSE SOLUTION Measure again after five Pressure sensor minutes. If the monitor is still The screen shows Er A parameter error abnormal, please contact the local distributor or the factory. No response when you Remove the batteries for five Incorrect operation or strong press button or load minutes, and then reinstall all... -
Page 20: Explanation Of Symbols On Unit
CLASSIFICATION AND EXPLANATION OF SYMBOLS Symbols Meaning Warning / Caution / Note Type BF equipment Consult instructions for use The operation guide must be read Manufacturer Date of manufacture Serial number Disposal of Electrical & Electronic Equipment (WEEE): Do not treat this product as a household waste. -
Page 21: Electromagnetic Compatibility Information
ELECTROMAGNETIC COMPATIBILITY INFORMATION TABLE 1 - EMISSION Phenomenon Compliance Electromagnetic environment CISPR 11 RF emissions Group 1, Home healthcare environment Class B Harmonic IEC 61000-3-2 Home healthcare environment distortion Class A Voltage IEC 61000-3-3 fluctuations and Home healthcare environment Compliance flicker TABLE 2 - ENCLOSURE PORT Phenomenon... - Page 22 TABLE 3 – PROXIMITY FIELDS FROM RF WIRELESS COMMUNICATIONS EQUIPMENT Test Band Immunity test levels frequency (MHz) (MHz) Professional healthcare facility environment 380-390 Pulse modulation 18Hz, 27V/m 430-470 FM, ±5kHz deviation, 1kHz sine, 28V/m 704-787 Pulse modulation 217Hz, 9V/m 800-960 Pulse modulation 18Hz, 28V/m 1720 1700-1990...
- Page 24 Exclusively manufactured for and distributed by: Medinox London Limited. Solar House,282 Chase Road, London N14 6NZ . www.medinox.co.uk MX Health ™ is an exclusive trademark of Medinox London. Andon Health Co.,Ltd, No 3 Jinping Street, YaAn Road, Nankai District, Tianjin, 300190, China iHealth Labs Europe SAS, 36 rue de Ponthieu, 75008, Paris, France.
