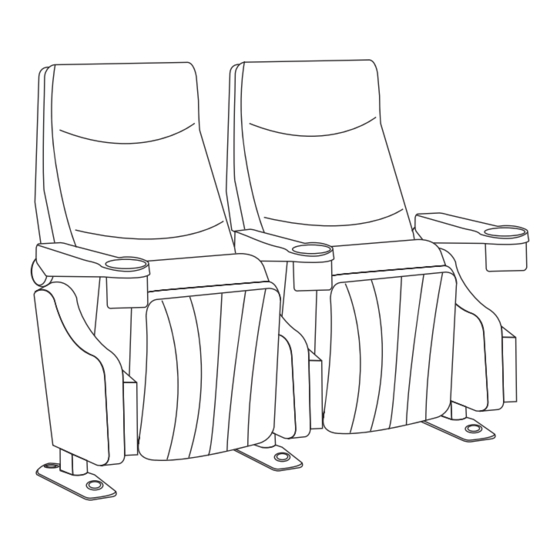

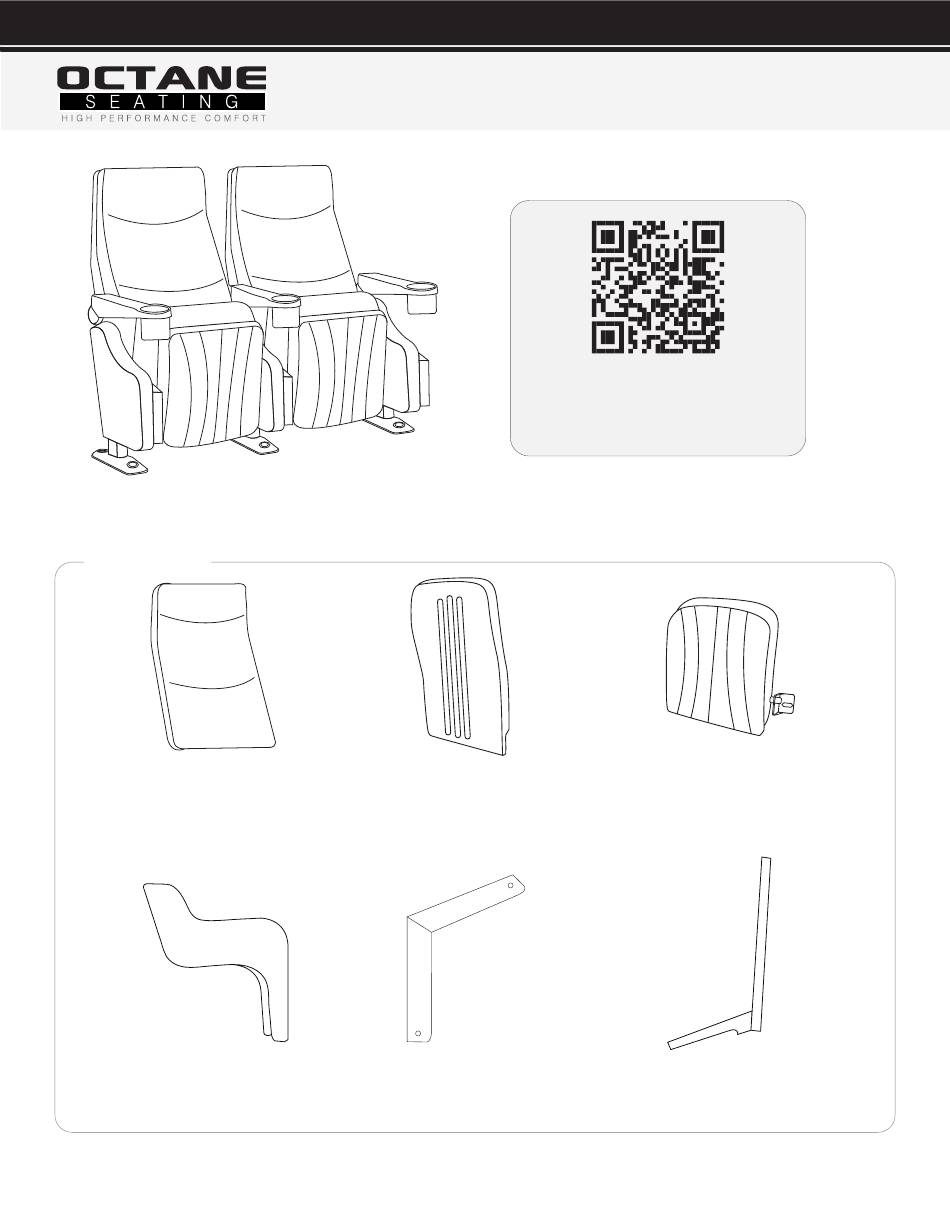

- Page 1 OCTANE Venue Assembly Instructions Scan this QR code for an instructional video. https://vimeo.com/340769321/ ca918e0ff2 Parts List Seat Back Cushion Seat Back Shell Seat Cushion Leg Cover Trim Support Bars VENUE-ASSEMBLY-INSTRUCTIONS-V.2022-1...
- Page 2 OCTANE Venue Assembly Instructions Parts List Continued Right Chair Leg Middle Chair Leg Left Chair Leg Hardware Hex Nut Washers Short Screws Long Screws Short Pointed Screws (M12) (M12) (M6 x 25mm) (M6 x 40mm) (5mm x 20mm) Long Pointed Screws...
- Page 3 OCTANE Venue Assembly Instructions Set the Positioning 23.62” in 23.62” in Place Right Chair Leg (G) into the desired placement (do not attach to floor). Measure 23.62” in (600mm) then place the Middle Chair Leg (H). Measure 23.62” (600mm), then place Left Chair Leg (I). Measure- ment is from centerline bolt to the next centerline bolt.
- Page 4 OCTANE Venue Assembly Instructions Attach the Support Bars to the Seat Back Cushion Align the back of the Seat Back Cushion (A) to the brack- ets on the back of the Support Bars (F) x 2. Use the Short Screws (L) to secure. Repeat for all seats.
- Page 5 OCTANE Venue Assembly Instructions Secure the Seat Back to the Chair Legs Use the Hex Nuts (J) and Washers (K) to at- tach the Support Bars (F) onto the Chair Legs. Note: At this stage only secure the back bolt.
- Page 6 OCTANE Venue Assembly Instructions Securing the Seat Cushion Use the Hex Nuts (J) and Washers (K) to at- tach the Seat Cushion (C) to the bolts that are towards the front of Chair Legs. Attach the Leg Cover Use the Leg Cover (D) to hide the Chair Leg Hardware for the Middle Chair Legs (H).
- Page 7 OCTANE Venue Assembly Instructions Attaching the Trim The Trim (E) is used on the outer Left and Right Chair Legs (G) & (I). Attach the Trim (E) with Hex Screws (P) on the corresponding Chair Legs. Attach the Seat Back Shell Slide the Seat Back Shell (B) on to the Support Bars (F) x 2 with the Seat Back Cushion (A) attached.
- Page 8 OCTANE Venue Assembly Instructions Secure the Seat Back Shell Insert the Long Pointed Screw (O) into the hole on the back of the Seat Back Shell (B) to secure. VENUE-ASSEMBLY-INSTRUCTIONS-V.2022-1...
