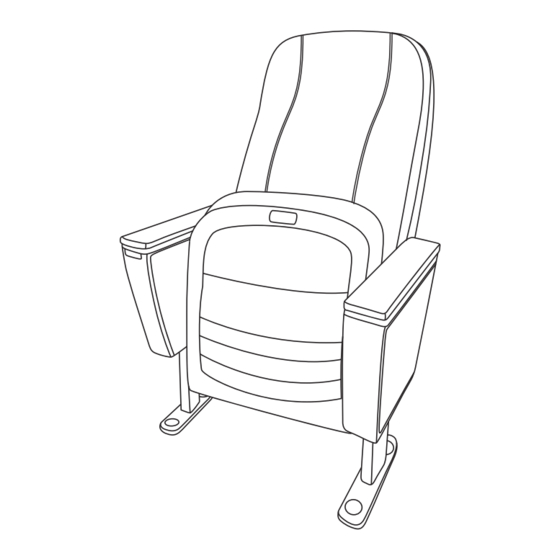

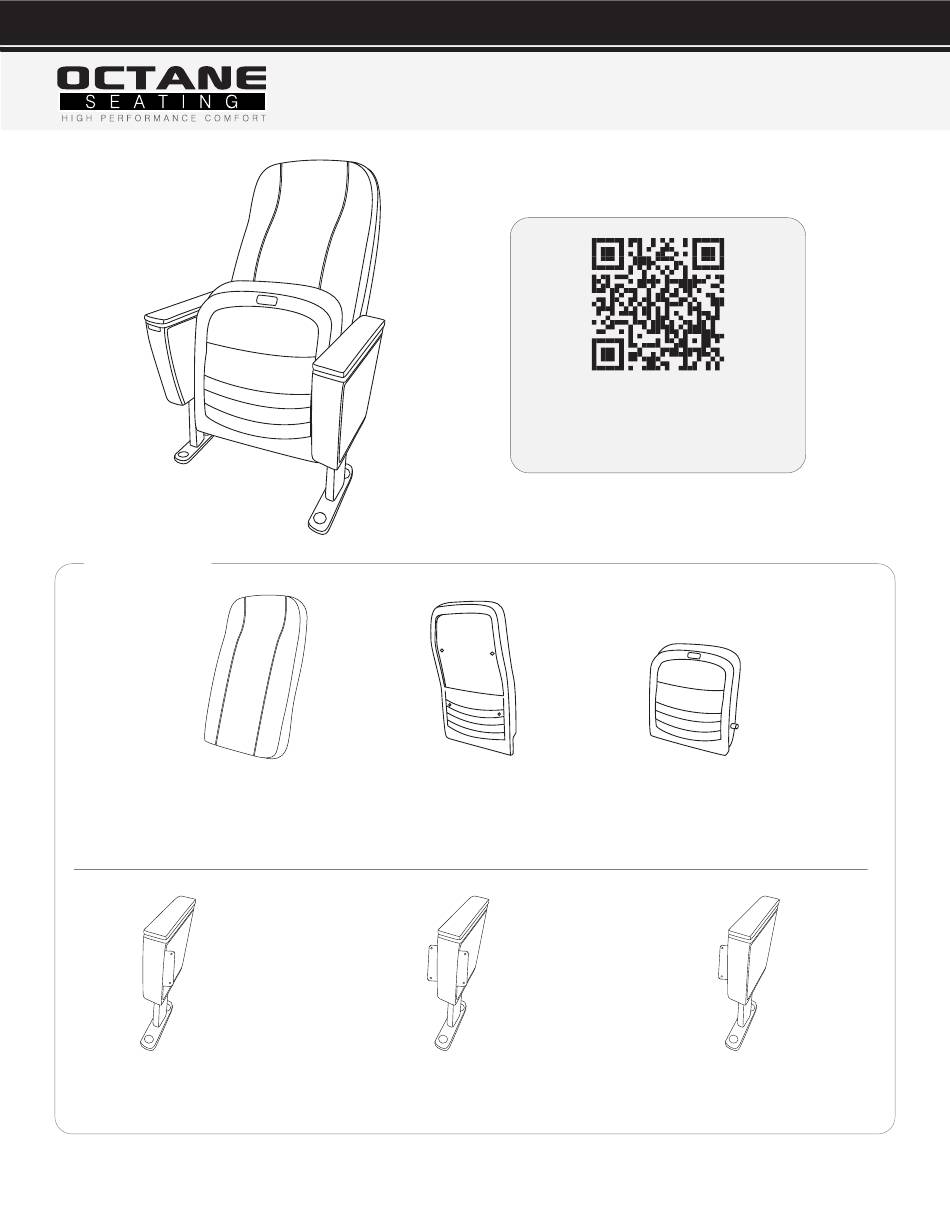

- Page 1 OCTANE The 5009 Series Assembly Instructions Scan this QR code for an instructional video. https://vimeo.com/760329424/ fa155f6ccc Parts List Seat Back Cushion Seat Back Shell Seat Cushion Right Chair Leg Middle Chair Leg Left Chair Leg THE-5009-SERIES-ASSEMBLY-INSTRUCTIONS-V.2022-1...
- Page 2 OCTANE The 5009 Series Assembly Instructions Hardware Hex Screw Short Screws Long Screws Small Plastic Caps Concrete Anchors Large Plastic Caps Example 1 (Single Chair) Step 1: Align the Seat Back Cushion (A) to the Right Chair Leg (D) and Left Chair Leg (F) brackets.
- Page 3 OCTANE The 5009 Series Assembly Instructions Example 2 (Multiple Chairs) Step 1: Align the first Seat Back Cushion (A) to the Right Chair Leg (D) and first Middle Chair Leg (E) brackets. Step 2: Use the Hex Screws (G) to secure the first Seat Back Cushion (A) to the Chair Legs (D) & (E) using the pre-drilled holes before moving on to the next Seat Back Cushion (A).
- Page 4 OCTANE The 5009 Series Assembly Instructions Attach the Seat Back Shell Attach Seat Back Shell (B) to Seat Back Cushion (A) Using the Short Screws (H) to se- cure the top section of the seat back and the Long Screws (I) to secure the bottom section of the seat back.
- Page 5 OCTANE The 5009 Series Assembly Instructions Attaching the Seat Cushion Use the Allen key to secure the Seat Cushion (C) to the Chair Legs. Securing to the Floor Use the Concrete Anchors (K) to secure the feet of the Chair Legs to the floor.
