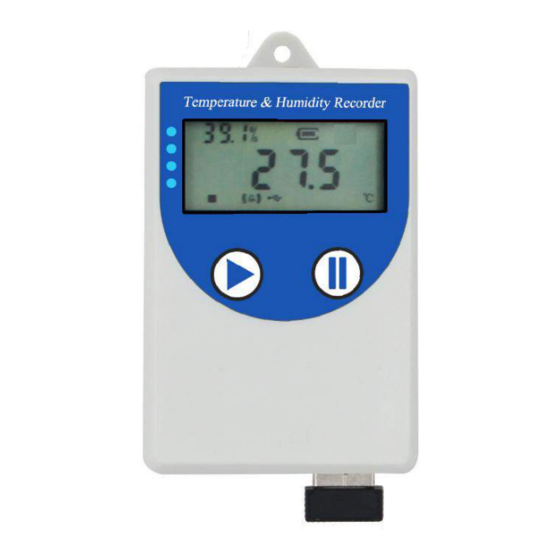

- Page 1 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 COS-04-X USB type temperature and humidity recorder User manual Shandong Renke Control Technology Co., Ltd www.renkeer.com...
- Page 2 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 Shandong Renke Control Technology Co., Ltd www.renkeer.com...
-
Page 3: Table Of Contents
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 Table of Contents 1. product description..........................4 1.1Features..........................4 1.3Product number........................4 1.3Technical Parameters......................5 2. Quickly record data with the recorder............错误！未定义书签。 3. Obtain logger record data........................6 4.Functional description..................错误！未定义书签。 5.Instructions.....................错误！未定义书签。 5.1Key Description........................8 5.2Start record.......................... -
Page 4: Product Description
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 1.product description The recorder is mainly used to monitor the temperature and humidity data of food, medicine, chemical products and other products during storage and transportation. It is widely used in all aspects of warehousing and logistics cold chain, such as reefer containers, refrigerated trucks, refrigerated bags, Cold storage, laboratories, etc. -
Page 5: Technical Parameters
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 1.3 Technical Parameters Equipment DC5V powered or built-in battery power supply Recording 260000 group capacity Probe -20~+60℃ built-in type temperature Probe Measuring range external -40~+80℃ type humidity 0~100%RH temperature ±0.3℃（25℃） measurement... -
Page 6: Obtain Logger Record Data
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 3.Unplug the USB cable, take the device to the environment to be tested, and press and hold Key waiting“ "Lights up to start recording. 3.4. Exit the USB Recorder Management System. -
Page 7: Functional Description
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 4. Functional Description Serial Description number Wheel display humidity and system time Is it in the parameter modification mode prompt Remaining battery display Wheel display temperature and number of stored Whether online Temperature or humidity alarm prompt Shandong Renke Control Technology Co., Ltd... -
Page 8: Start Record
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 Record status is stopped Record status is in record state If the recorder does not operate for 20 seconds, it automatically enters the low power mode. The screen refresh time is slowed down to 1 second to refresh. -
Page 9: Function Display Item Description
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 interface“ ”When the symbol is lit, the recording is stopped. 5.4Function display item description Short press under the main interface ，Enter the password, the default password is 000, long press ，Can enter the menu setting interface。... - Page 10 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 After a button operation of 20S in a certain setting interface, the device will automatically enter the main interface of temperature and humidity display. 3.Set the temperature calibration value After entering this interface, display the current temperature calibration value, short press “Right click”...
- Page 11 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 5S. After the interface is stable, short press“Right click”to page down to enter“5. Set humidity upper limit” interface, long press “Right button” to enter the lower limit of setting temperature again. Press and hold the "left button" to return to the temperature and humidity display interface.
- Page 12 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 the time, press“Right button”to save the current setting value. After the setting is successful, the interface will flash 5S. After the interface is stable, press the“Right click”button to enter the “9.
-
Page 13: Data Management Software Instructions
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 b.Set the normal recording interval After entering this interface, the current password is displayed. Short press “Right click” to page down to enter “C. Set alarm record interval” interface, short press “Left button” to page up to enter “A set buzzer alarm enable”, long Press “Right button”... - Page 14 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 Click "Report", select the start and end time of the data to be exported, click "Refresh", and then select the exported format (TXT/XLS/PDF) to save the data to the specified path (take PDF as an example), prompting the export success.
-
Page 15: Save Data
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 6.2save data After importing the data, click "Save to Database" Shandong Renke Control Technology Co., Ltd www.renkeer.com... -
Page 16: Query Data
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 Name the database file for future query, click "OK" to save the data successfully.。 6.3 Query data For the data that has been saved to the database, you can query it through the USB recorder management system, click the toolbar "query"... - Page 17 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 Double-click the query to the results to perform the "View Data", "View Curve", "Rename", "Delete Record" and "Export" operations. Shandong Renke Control Technology Co., Ltd www.renkeer.com...
-
Page 18: Set The Recorder Parameters
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 6.4 Set the recorder parameters Connect the device to the computer via the USB cable and click on the "Device Configuration" toolbar. After editing the device parameters, click “Write Device” to write the parameters to the recorder. -
Page 19: View Current Device Status
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 MAC: Factory default, not modifiable Device time: can synchronize the clock time of the recorder Normal recording interval: set the interval at which the recorder stores data (minimum 5S) Alarm recording interval: set the recording interval after the temperature and humidity of the... -
Page 20: Clear Device Data
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 MAC address: MAC address of the current device Software version number: version of the current software Hardware version number: version of the device Device time: the current time of the device... - Page 21 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 Shandong Renke Control Technology Co., Ltd www.renkeer.com...
-
Page 22: Installation Notes
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 7.Installation Notes The device can be hung wherever it can be hung, use a lanyard to hang the device Shandong Renke Control Technology Co., Ltd www.renkeer.com... -
Page 23: Contact Information
COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 . Contact information Shandong Renke Control Technology Co., Ltd. Address: 2 / F, East Block, Building 8, Shun Tai Plaza, High-tech Zone, Jinan City, Shandong Province Post code: 250101 Phone: 400-085-5807 Website: www.renkeer.com... - Page 24 COS-04-X USB Temperature and Humidity Recorder User Manual V1.1 Shandong Renke Control Technology Co., Ltd www.renkeer.com...
