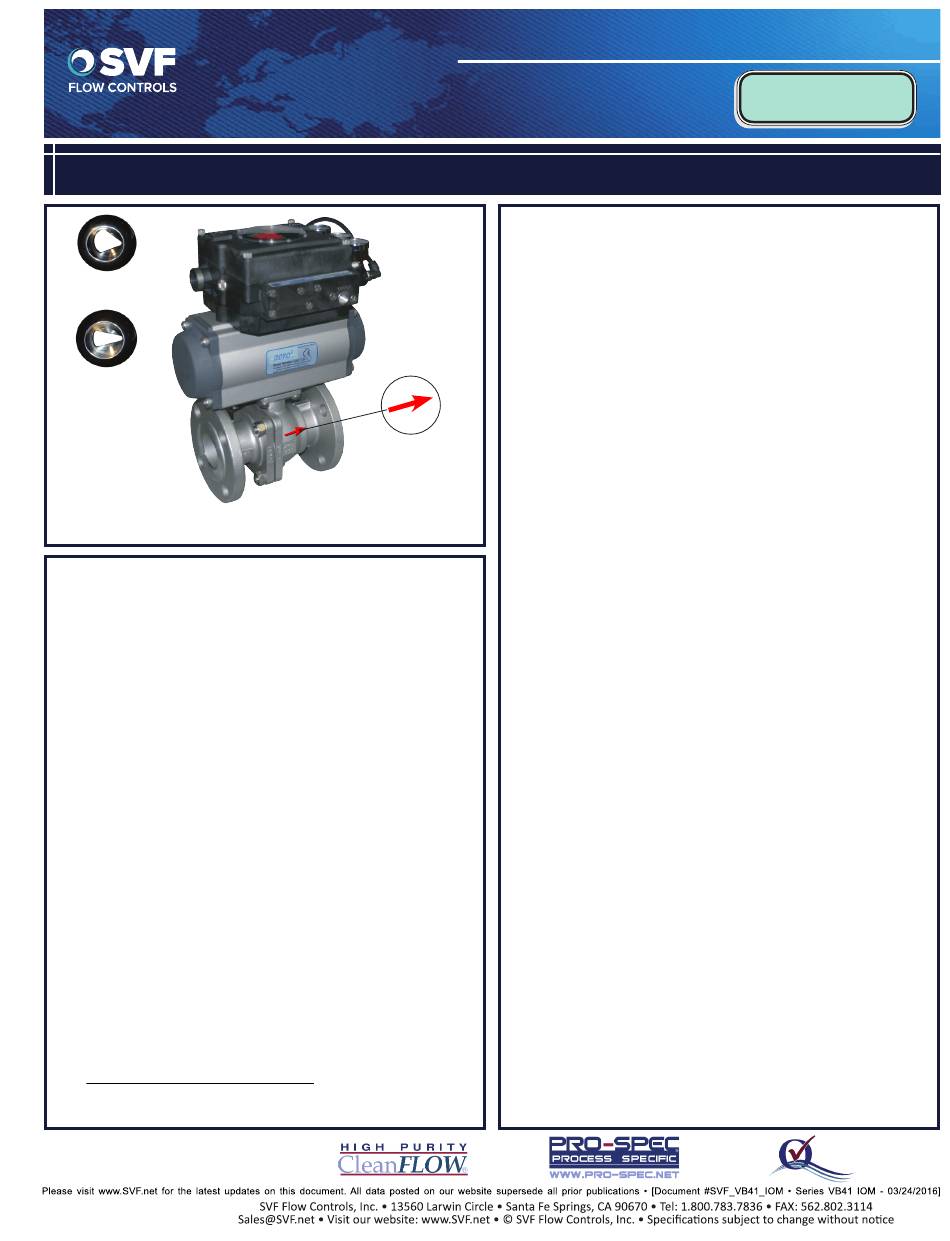

Installation, OPERATION & MAINTENANCE FOR SVF SERIES VB41 BALL VALVES
60 O V Ball
30 V Ball
O

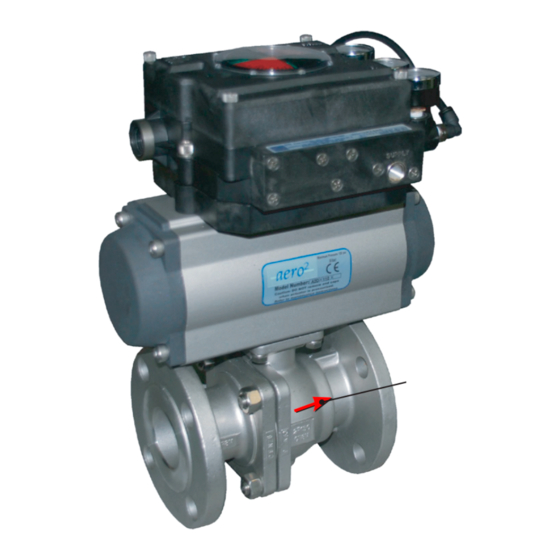

VB41 Automated Package
(2" Valve shown with aero

GENERAL

SVF Ball valves have been designed and engineered to
provide long lasting and trouble free service when used
in accordance with the instructions and specifications
herein.
The following instructions refer only to SVF Series VB41
Control "V" Port Ball Valves.
Keep protective cover in place until moment of
installation. Valve performance depends upon
preventing of damage to ball surface. Upon removal
of cover, make sure that the valve is completely open
and free of obstruction.
If requested, valves can be shipped from the factory
containing a silicon based lubricant which aids in the
assembly of the valve. This may be removed with a
solvent if found intolerable.
Certain ferrous valves are phosphate and oil dipped
during the course of manufacture, but they are
completely non-toxic and the valves are quite safe to
use for edible or potable products.
STORAGE:
All manual valves are shipped in the fully open position
with protective end caps (covers). Keep all protective
packaging, flange covers, or end caps attached to
the valves during storage. To avoid damage to the seat
due to contact with the balls edge, leave the valve in
the fully open or closed position during storage. It is
recommended to keep the valves in a clean and dry
environment until ready for use.
