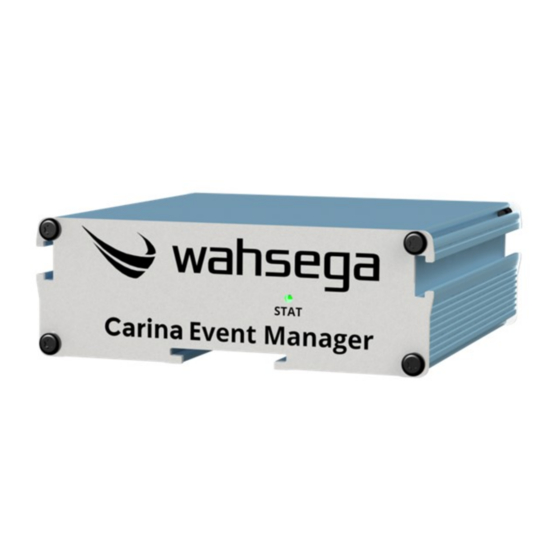

- Page 1 Carina Event Manager Installer’s Guide Getting Started This step-by-step guide will help you install your Wahsega Event Manager. Event Manager Installation Guide Page 1 11.11.2020...
-
Page 2: What's In The Box
What’s in the Box (1) Carina Event Manager (1) 2-Pin male connector (1) Ferrite cable clamp Event Manager Installation Guide Page 2 11.11.2020... -
Page 3: What You Will Need
What You Will Need PoE power Power-over-Ethernet (PoE 802.3af) switch +9-16VDC power Network cable (Cat 5e or Cat 6) Event Manager Installation Guide Page 3 11.11.2020... - Page 4 Wiring Power Option A: To use Power-over-Ethernet (POE 802.3af), route a Cat 5e or Cat 6 Ethernet cable from a PoE switch or injector to the LAN port. Option B: Alternately, use the included 2-pin male connector to connect +9-16VDC and Ground wires for power. Use standard (unpowered) Ethernet for data.
- Page 5 Dimensions Front Rear Event Manager Installation Guide Page 5 11.11.2020...
- Page 6 Side Event Manager Installation Guide Page 6 11.11.2020...
- Page 7 Standards Compliant This product is designed and manufactured in the USA. ROHS compliant Temperature rating -40C to +60C. Event Manager Installation Guide Page 7 11.11.2020...
- Page 8 Wahsega Carina Event Manager WL-EM-CAR Installation Guide Event Manager Installation Guide Page 8 11.11.2020...
