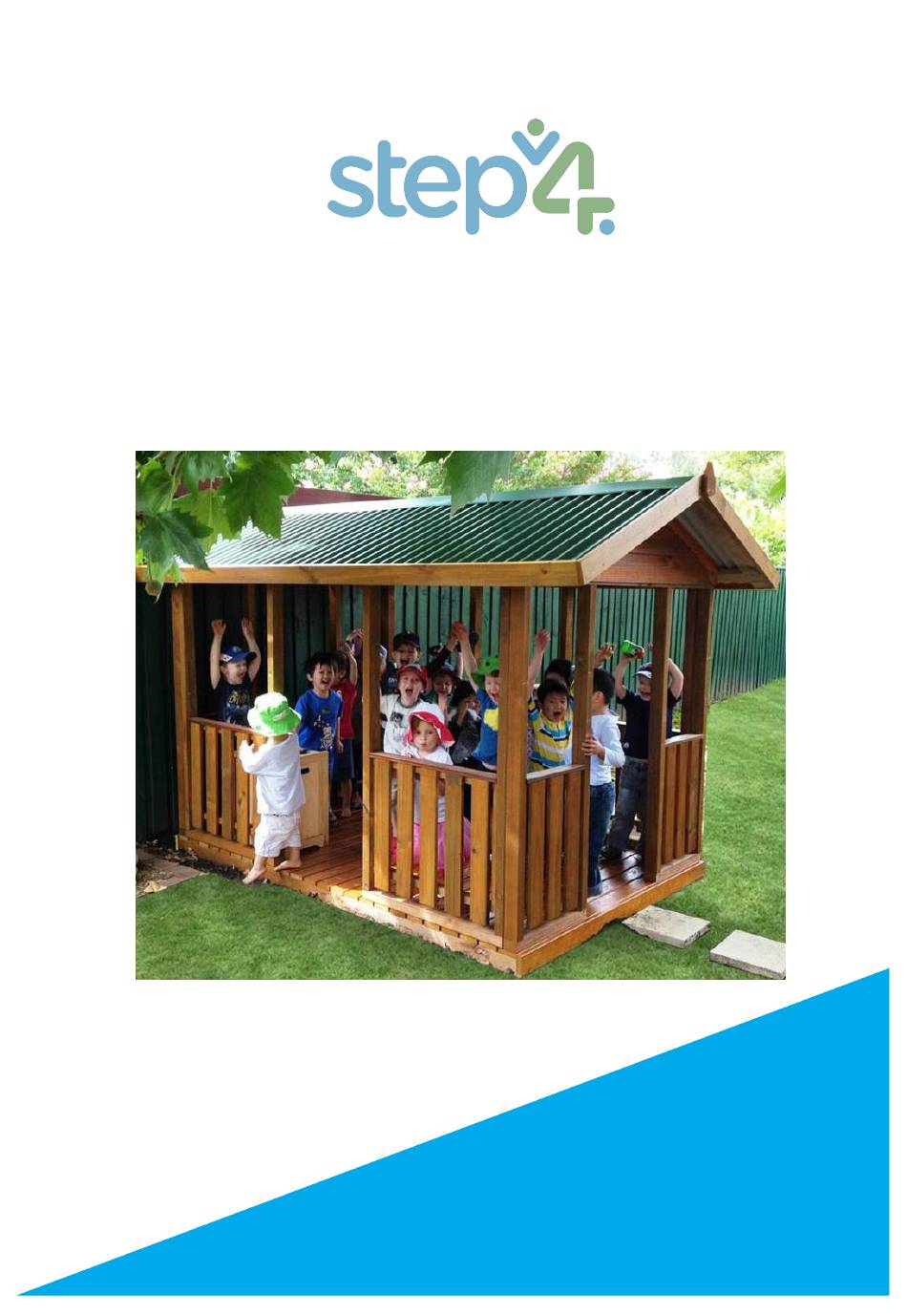

- Page 1 ACTIVITY FORT INSTRUCTION MANUAL...
- Page 2 BUTTON SCREWS = 22 Qty. 20mm NEO SCREWS = 42 Qty. 40 mm CHIPBOARD SCREWS = 45 Qty. 50mm ROOFING SCREWS = 42 Qty. 75mm BATTEN SCREWS = 60 Qty. 100mm BATTEN SCREWS = 34 Qty. FINIALS BUGLE BIT (Hex PHILIPS HEAD 5/16 BIT BULK...
- Page 3 COMPONENTS Balustrade (4 Qty.) Fort Floor Attachment Fort Floor 1700 × 2460 mm 1520 x 780 mm 1700 x 620 mm Side Stiffeners (4 Qty.) Fort Wall (2 Qty.) 1700 × 1565 mm 640 × 140 × 35mm Gable (2 Qty.) 1700 × 385mm Floor Decking 1700 ×...
- Page 4 L Channel (2 Qty.) 2730 × 58 mm Roof Capping 2730 × 203 mm Roof Batens (4 Qty.) 2735 × 90 × 35 mm Roof Trims (4 Qty.) Corri Sheet (7 Qty.) Skylight 1040 × 70 × 20 mm 1000 × 850 mm 1000 ×...
- Page 5 Take the Fort Floor and the Fort Floor attachment and push them together. Once pushed together, center the Floor Joiners over where the floors meet, and attach with 4 (E) screws. Do this for each floor joiner. Total Screws = 20 Qty. of (E)
- Page 6 To construct the 2300mm Fort Wall, you must take a Balustrade connector, and attach 2 of the Balustrades on each side using (F) screws, as shown. Do this twice to get both 2300mm Fort Walls. Total Screws = 8 Qty. of (F) Now that all the seperate components are complete, flip the Fort Floor, and attach one of the 1700mm Fort Walls to the Fort Floor.
- Page 7 Attach a 2300mm Fort Wall to the 1700mm Fort Wall. Total Screws = 3 Qty. of (F) Attach the other 2300mm Fort Wall to the 1700mm Fort Wall. Total Screws = 3 Qty. of (F)
- Page 8 Attach the final 1700mm Fort Wall to the already standing 2300mm Fort Walls. Total Screws = 6 Qty. of (F) Attach the both 2300mm Fort Walls to the Fort Deck. Do this on both sides. Total Screws = 4 Qty. of (F) for each wall. 8 in total.
- Page 9 Screw the final 1700mm Fort Wall to the Fort Floor. Like the first Fort Wall to Fort Floor, ensure the screws are screwed through to the floor joists. Total Screws = 2 Qty. of (F) 2(E) 2(E) 2(F) DETAIL A Fit the Side Stiffeners as shown in Detail B for all four edges.
- Page 10 C(2) C(2) Screw the bottom chord of the Gable to the top plate of a 1700mm Fort Wall. Total Screws = 2 Qty. of (E) and 4 Qty. of (C) C(2) C(2) Screw the bottom chord of the Gable to theTop plate of the other 1700mm Fort Wall Total Screws = 2 Qty.
- Page 11 ROOF ASSEMBLING C (2) C (2) C (2) C (2) C (2) DETAIL C C (2) C (2) C (2) a - 4 Qty. of Roof Battens b - 4 Qty. of Roof Trims C (2) Assemble the Roof components by spacing the Roof Battens at 760mm and join the 'a' and 'b' with 2 (C) screws.
- Page 12 Attach the 2300mm Fort Walls to the Roof as shown. Roof trim angles need to fit exactly and the roof must have equal overhangs on both sides. Total Screws = 6 Qty. of (E) Attach the Gable to the Roof as shown. Do this on both sides. Total Screws = 2 Qty.
- Page 13 (A)10 Attach the Roof Capping with 1 row of 5 screws on each side of Corri Total Screws = 10 Qty. of (A) Attach the L Channel with 5 (A) screws to the Corri Sheet. Do this on both sides. Total Screws = 5 Qty.
- Page 14 C ( 2 ) Attach the Finials with 2 (C) screws to the Roof front. Do this to the back as well. Total Screws = 2 Qty. of (C) each side. 4 in total.
