Summary of Contents for SoaringXX Wingstand GIGA

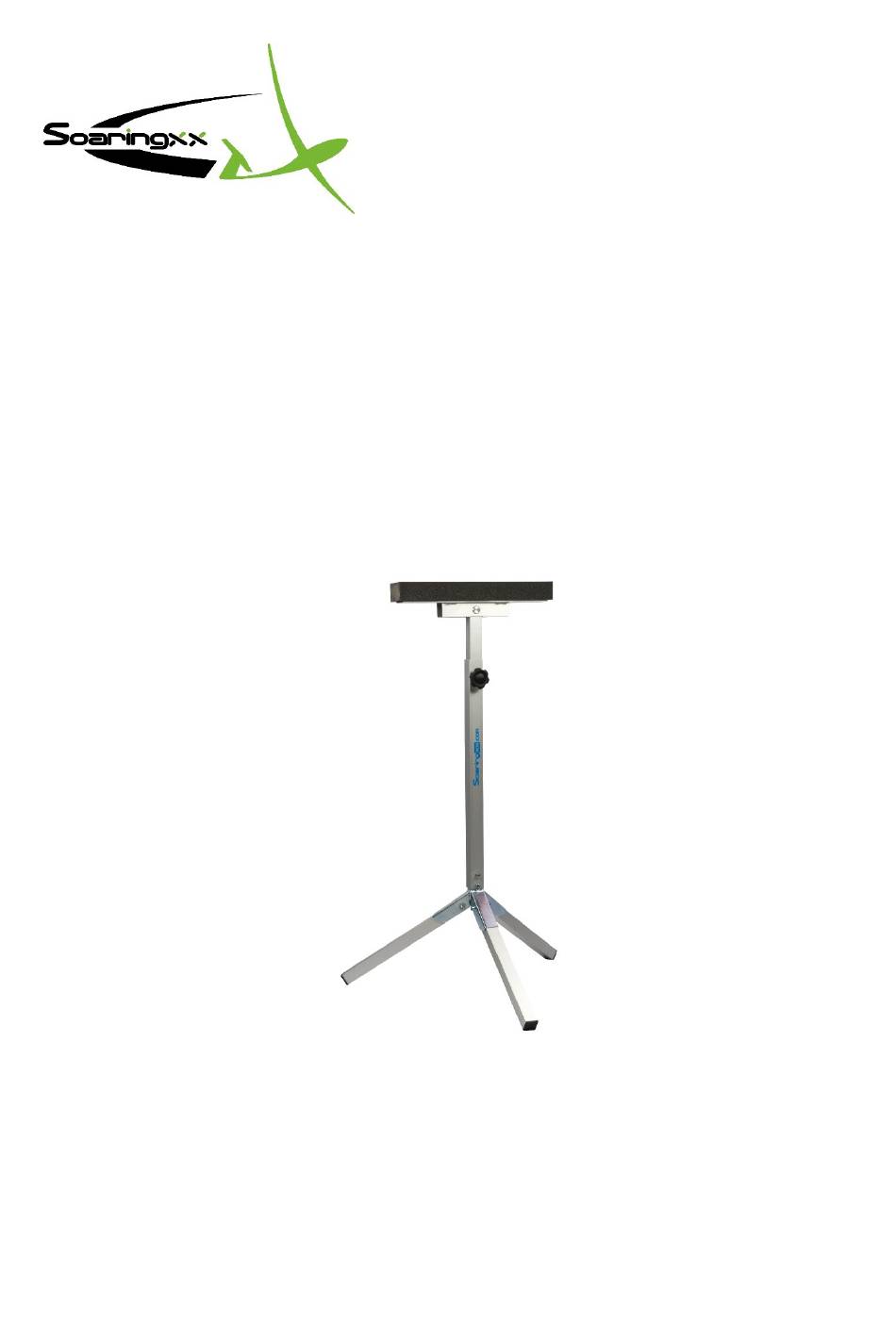

- Page 1 Wingstand GIGA Manual Version 1.1...
- Page 2 Table of Contents 1. Important instructions / safety ................3 2. Packing list ......................3 3. Basics ........................4 4. Technical Specifications ..................4 5. Assembly / disassembly ..................5 6. Use / handling ....................... 6 7. Warranty ........................ 8...
- Page 3 It is highly recommended to read the manual before assembling and using the wingstand! SoaringXX is not liable for any damage caused by a lack of responsibility and improper use of its products. 2. Packing list The Wingstand package contains the following parts: ...
- Page 4 3. Basics The Wingstand is a light and compact wing supporter that is used for assembly and disassembly of a gliders. It is made out of an anodized aluminium to ensure a lightweight and sturdy construction. It is a 6 piece assembly that is easy to assemble and disassemble.
- Page 5 5. Assembly / disassembly Assembly of the Wingstand 1) Screw-in the steel tripod to the extendable stem. Use 2 crews, 2 washers (24 mm) and 2 nuts. 2) Screw-in all three legs to the steel tripod. Use 3 screws, 3 washers (24 mm) and 3 nuts.
- Page 6 3) Attach the wingrest to the extendable stem by pressing to the black plastic button on the top of the stem and insert it into the dedicated socket on the wingrest. Wingrest should be vertically when stored and horizontally when used.
- Page 7 Step 3: Extend aluminium stem and set the appropriate height of the wingrest which varies from glider to glider. To lock the aluminium stem at the right height tighten the screw on the side of the stem with your hands. Step 4: Set the wingstand on the ground to the appropriate distance from the cabin (depend on the wing length) and it is ready to use.
- Page 8 Some states do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. SoaringXX retains the exclusive right to repair or replace the unit or software, or to offer a full refund of the purchase price, at its sole discretion.
