- Page 1 Model FS-1200 UV/IR Flame Simulator User Guide 6021 Innovation Blvd, Shakopee, MN 55379 , USA Phone: +1 (973) 239 8398 Website: www.spectrex.net Email: spectrex.csc.rmtna@emerson.com...
- Page 3 Legal Notice The SPECTREX SharpEye Flame Simulator described in this document is the property of Rosemount. No part of the hardware, software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, without prior written permission of Rosemount.
-
Page 5: Table Of Contents
Table of Contents Table of Contents .................... v List of Figures ....................vii List of Tables ....................vii About this Guide ..................9 Release History ..................9 Glossary and Abbreviations ..............10 Product Overview ..................13 Flame Simulator Compatibility with Flame Detector Models ......13 Features and Benefits ................ - Page 6 3.9.4 EMI Compatibility ................27 Technical Support ..................32 SharpEye™ UV/IR Flame Simulator User Guide...
- Page 7 List of Figures Figure 1: Flame Simulator Side View ..............16 Figure 2: Flame Simulator Rear View ..............17 Figure 3: Flame Simulator Front View ..............17 Figure 4: Flame Simulator Battery Replacement ............ 25 List of Tables Table 1: Detection Ranges per Detector/Flame Simulator ........23 TM380102 Rev.
-
Page 9: About This Guide
About this Guide About this Guide This guide describes the SharpEye Flame Simulator and its features, and provides instructions on how to operate and maintain the simulator. Release History Prepared by Approved Date Revision History December 2015 First Release Ian Buchanan... -
Page 10: Glossary And Abbreviations
Serial communications protocol using Master-Slave MODBUS messaging Not Applicable N.C. Normally Closed NFPA National Fire Protection Association Normally Open N.O. National Pipe Thread Part Number Radio Frequency Interference RTSP Real Time Streaming Protocol Safety Integrity Level SharpEye™ UV/IR Flame Simulator User Guide... - Page 11 About this Guide Abbreviation/Term Meaning Unified Coarse Thread Volts Alternating Current TM380102 Rev. (Ad), September 2020...
-
Page 13: Product Overview
SPECTREX flame simulators emit electromagnetic radiation in a unique sequential pattern corresponding to and recognizable as fire by specific SharpEye Flame Detector models. This allows for testing under real fire conditions without the associated risks of an open flame. -
Page 14: Features And Benefits
Operates at least 100 tests before battery recharge is necessary Principles of Operation The FS-1200 includes a halogen lamp that emits UV and IR energy. This energy is accumulated by a reflector and directed towards the detector. The FS-1200 does not include a laser diode. It includes only a mechanical sight, as the user can see the spot from the simulator and should aim the spot toward the center of the detector. - Page 15 Product Overview TM380102 Rev. (Ad), September 2020...
-
Page 16: Simulator Structure

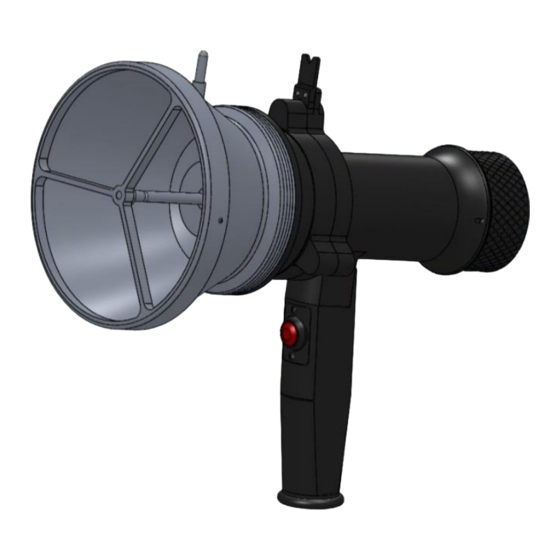

The battery compartment includes a battery pack containing 4 lithium-ion batteries, measuring a total of 14.8VDC and 2.6Ah. To charge or replace the battery pack, follow the instructions in section 3.6 on page 23. Figure 1: Flame Simulator Side View SharpEye™ UV/IR Flame Simulator User Guide... -
Page 17: Figure 2: Flame Simulator Rear View
Product Overview Figure 2: Flame Simulator Rear View Figure 3: Flame Simulator Front View TM380102 Rev. (Ad), September 2020... -
Page 18: Certification Instructions
Examples of aggressive substances: acidic liquids or gases that may attack metals or solvents, or may affect polymeric materials. • Examples of suitable precautions: routine inspections, establishing resistance to specific chemicals from the material’s data sheets. SharpEye™ UV/IR Flame Simulator User Guide... -
Page 19: Specific Conditions Of Use
Product Overview 2.6.2 Specific Conditions of Use • The dimensions of the flameproof joints are other than the relevant minimum or maximum values required by Table 3 of IEC/EN 60079-1:2014 for IIB + H2, as detailed below: Minimum Width Maximum Gap Flamepath Description Type of Joint “L”... -
Page 21: Operation Instructions
Operation Instructions Operation Instructions Ordering Information The P/N of the Flame Simulator Kit is 380114-2. The kit is supplied in a carry case that includes: • Flame Simulator FS-1200 • Charger • Tool Kit • Technical Manual TM380102 Unpacking Verify that you have received the following components: •... -
Page 22: Operating Instructions
60 seconds, following which the equipment cannot be operated for a minimum period of 30 seconds. 3.4.2 Fault Status • Low Battery – When the battery is lower than 12.3 VDC, the lamp won’t be activated. SharpEye™ UV/IR Flame Simulator User Guide... -
Page 23: Detection Ranges
Operation Instructions Detection Ranges Table 1: Detection Ranges per Detector/Flame Simulator Detector Testing Distance Sensitivity Model Detector Types (ft/m) Setting (ft/m) FS-1200 40/40C-LB 10/3 50/15 23/7 40/40C-L4B 42/13 12/4 40/40D-LB 10/3 50/15 23/7 93/28 46/14 40/40D-L4B 42/13 12/4 40/40U-UB, 40/40L-LB,... - Page 24 To remove the battery, follow steps 1-4 in "To Charge the Battery" section. Insert the new battery pack in the simulator housing. Use only a SPECTREX battery pack, P/N 380004. Follow steps 9-11 in "To Charge the Battery" section. Simulator Battery Pack SharpEye™ UV/IR Flame Simulator User Guide...
-
Page 25: Maintenance
Operation Instructions Back Compartment Cover Locking Disc Figure 4: Flame Simulator Battery Replacement Maintenance • Ensure the flame simulator is charged before operation. The LED will flash twice to indicate that the battery is fully charged. • Ensure the reflector and window are clean. •... -
Page 26: Troubleshooting
Charging time: 2hr at 2A 3.9.3 Physical Specifications • Dimensions: 9” x 7.3” x 5.35” / 230 x 185 x 136 mm • Weight: 5.5lb/2.5kg • Enclosure: aluminum, heavy duty copper free, black zinc coating. SharpEye™ UV/IR Flame Simulator User Guide... - Page 27 Operation Instructions • Explosion proof enclosure: ATEX and IECEx Ex II 2 G D Ex db ib IIB + H2 T4 Gb Ex ib tb IIIC T135°C Db -20°C to +50°C / -4°F to +122°F cCSAus Class I, Zone 1, AEx db ib op is IIB+H2 T4 Gb -20°C ≤...
