Summary of Contents for Kathrein LTECOMPB1

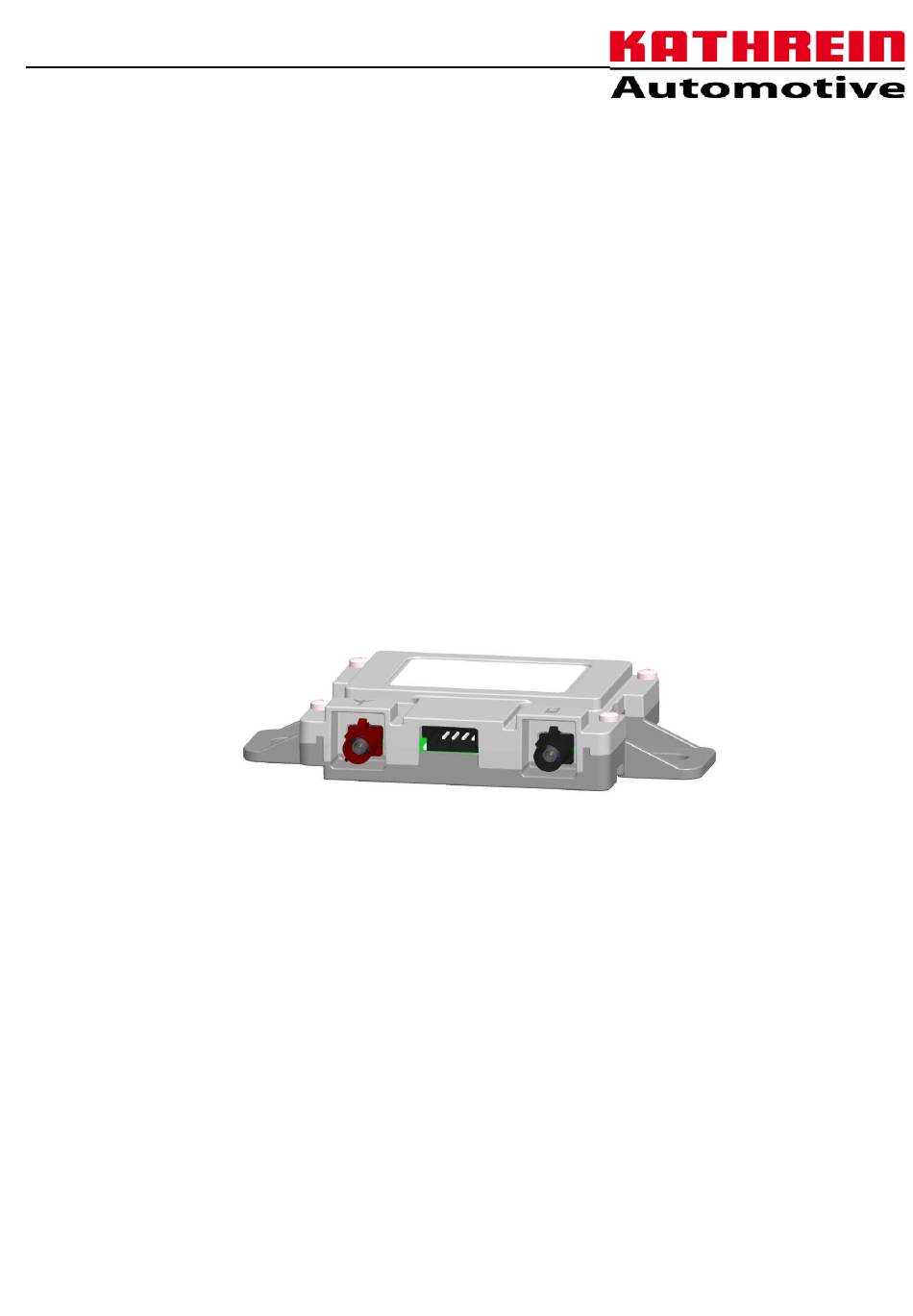

- Page 1 Cellular Signal Booster (Compensator) LTECOMPB1 BMW Part Number: 8 735 008 Kathrein Part Number: 50110340 Page 1...
- Page 2 Contents Introduction ............................3 Installation Options ..........................3 Antenna Kitting ........................... 4 Compensator Specifications ....................... 4 Safety and Recommendations ......................7 Page 2...
- Page 3 1. Introduction The Compensator is a mobile consumer Signal Booster which operates on the frequencies and in the market areas of multiple licenses and will be integrated in the car only by the car-manufacturer or in case of replacement by a professional garage. The end-user does not have to do any installations or adjustments.
- Page 4 9273669 Ant 3: ECU-01 R1-US-3G + ANT 3G TEL GPS SDARS 9395306-01 + 9303036-03 4. Compensator Specifications General Specifications Model Number LTECOMPB1 Antenna/Cradle Connectors FAKRA (male) DIN 72594-1/ISO 20860-1 DC Connector MQS-Type Impedance 50 Ohm Power Requirements DC 9 V - 16 V; 500 mA; 2,5 A peak max.
- Page 5 Bypass State Min. Typ. Max. Parameter Condition Unit Value Value Value 698 MHz – 1 GHz -3.6 -2.6 -1.6 Gain G (Bypass) 1 GHz – 2.2 GHz -5.5 -4.5 -2.5 Gain Uplink Min. Max. Parameter Condition Unit Value Value Band 2 22.8 Band 4 22.8...
- Page 6 Output Power Uplink Max. Parameter Condition Unit Value Band 2 Band 4 Band 5 Band 12/17 Pout Uplink Band 13 Band 2 Band 5 Output Power Downlink Max. Parameter Condition Unit Value Band 2 Band 4 Pout Band 5 Downlink Band 12/17 Band 13 Each Compensator is individually tested and factory set to ensure FCC compliance and...
- Page 7 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by KATHREIN Automotive could void the authority to operate this equipment. Page 7...
- Page 8 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
