INSTALLATION AND SERVICE MANUAL
For Installation of Kios Inground uplight Square 220mm. and Square 216mm. LED
Model. KI-60506 and KI-60516

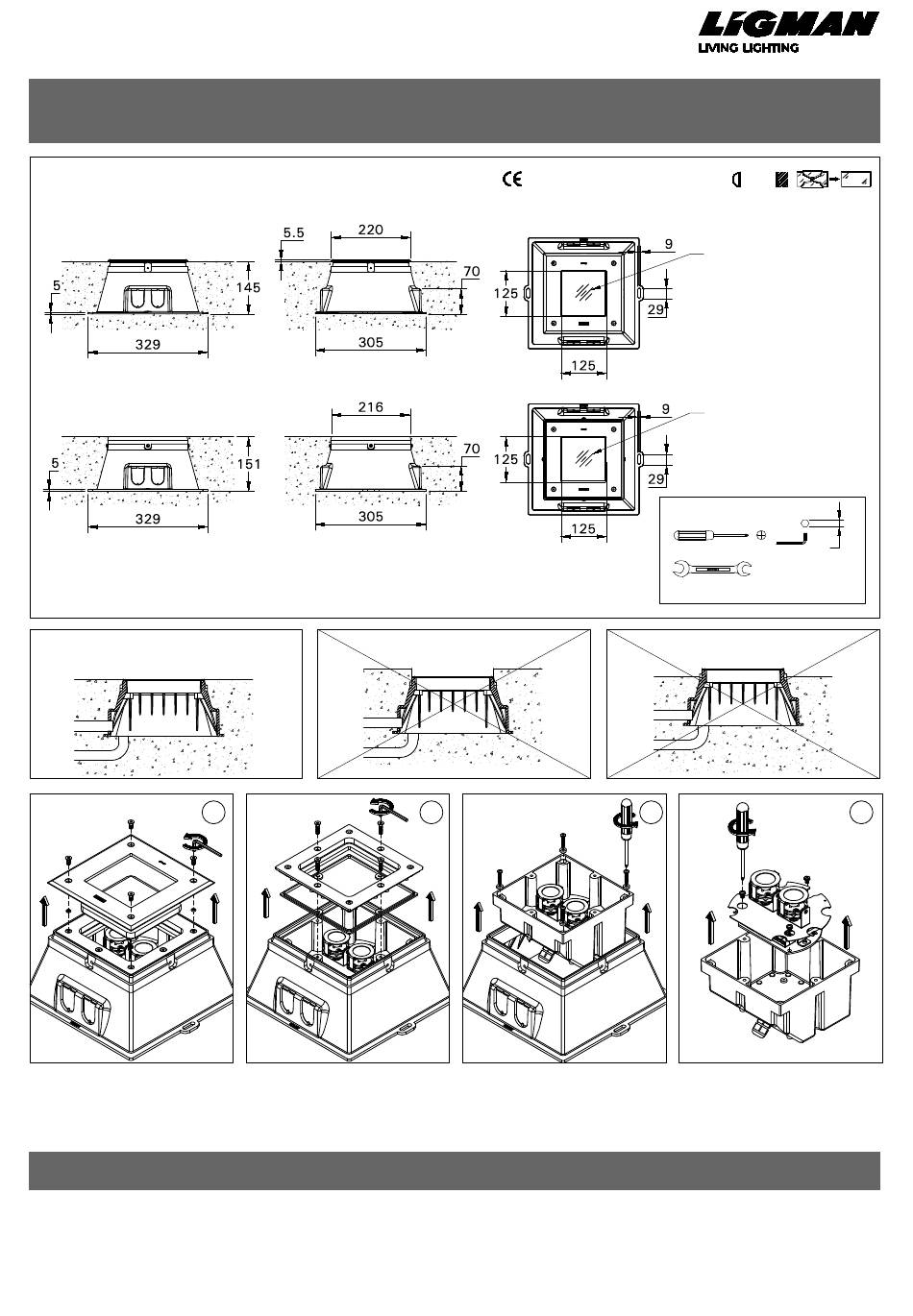

Product drawing (dimensions)
EMBOSS FRAME KI-60506
FLAT FRAME KI-60516
OK YES
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-13 standard.
Technical amendments and modifications techniques reserved.
