Summary of Contents for Tech Controllers EU-RP-4

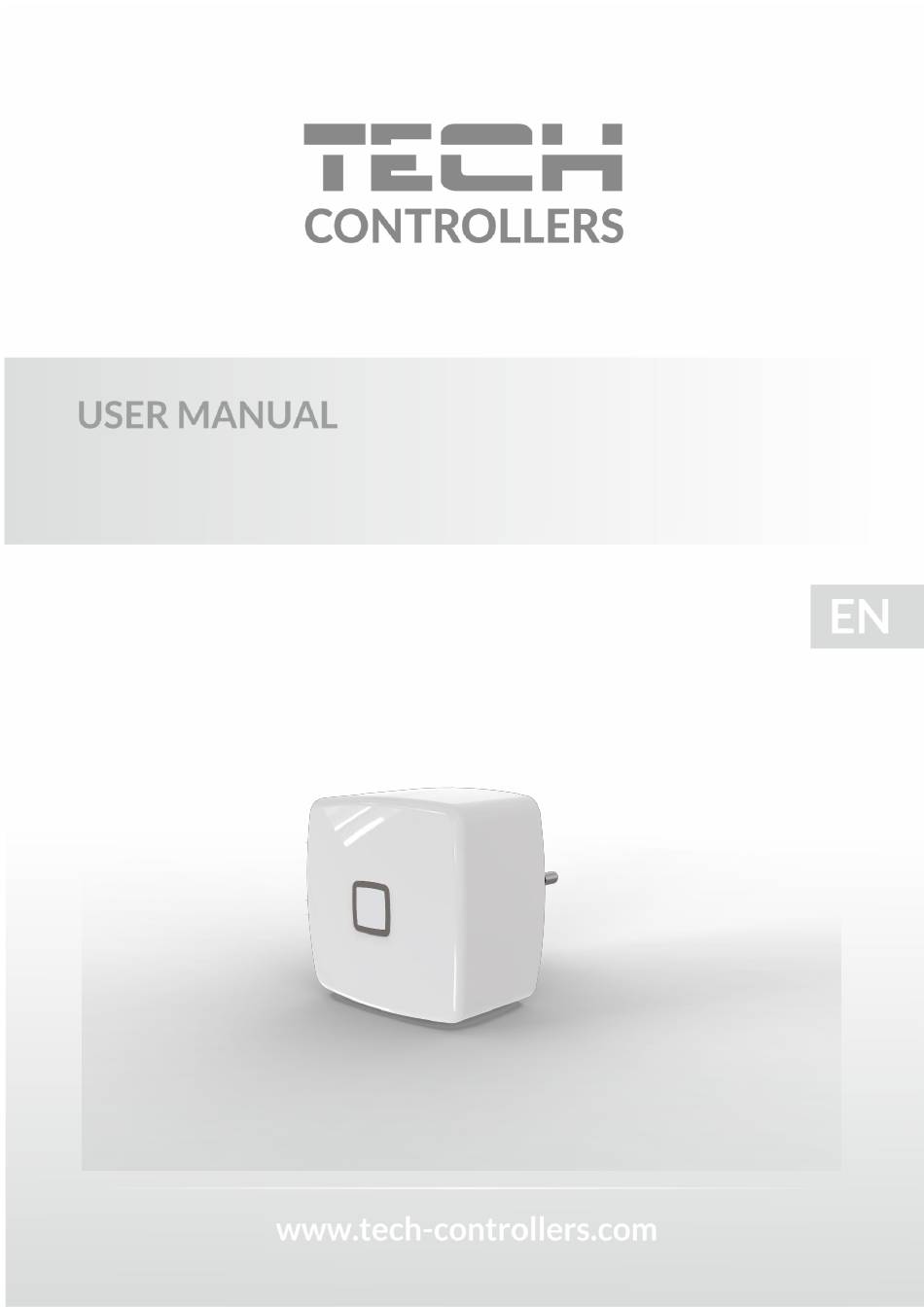

  • Page 1 EU-RP-4...
  • Page 2 TABLE OF CONTENTS I. Safety ....................................3 II. Device description ................................4 III. How to use the device ..............................5 1. Registration ................................... 5 2. Advanced settings ................................. 6 IV. Technical data .................................. 6 KN.20.10.07...
  • Page 3 SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference.
  • Page 4 II. DEVICE DESCRIPTION The RP-4 repeater is a wireless device which strengthens the network signal between registered devices in order to extend its range. The device works perfectly with connections that are constantly disturbed, e.g. through other devices operating on the same frequency or some solutions used in construction, e.g. concrete walls that suppress the signal. Features of the device: ...
  • Page 5 III. HOW TO USE THE DEVICE REGISTRATION In order to register devices in one repeater, follow these steps: 1. Connect RP-4 to the power supply socket. 2. Press the registration button on RP-4 – the control lights are flashing clockwise. 3.
  • Page 6 ADVANCED SETTINGS It is possible to connect many repeaters in a chain. In order to register another repeater, follow these steps: Connect the first RP-4 to the power supply socket. Press the registration button on the first RP-4 – the control lights are flashing clockwise. Press the registration button on the transmitting device (EU-C-8r room sensor or room regulator etc.) Once steps 2 and 3 have been performed properly, the device animation will change - the control lights will start flashing anti-clockwise.
  • Page 7 EU Declaration of conformity Hereby, we declare under our sole responsibility that EU-RP-4 manufactured by TECH, head- quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the...
