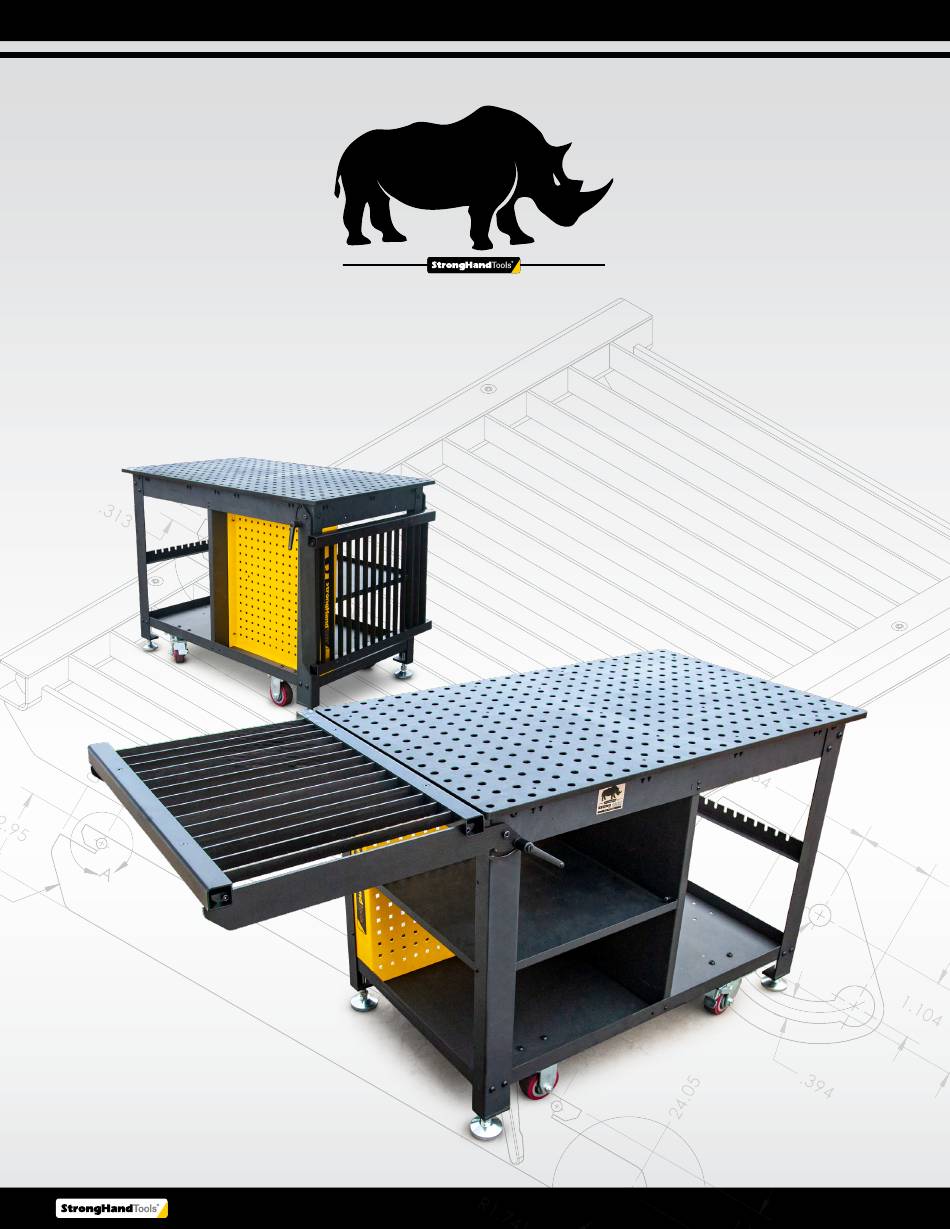

- Page 1 RHINO CART ® MO BI LE F IXT UR ING STATI ON RHINO CART ® MO BI L E FI XT UR ING STATI ON PLASMA CUTTING TRAY INSTRUCTION MANUAL PART NO.: TPL3021 1.562.949.8625 | www.stronghandtools.com | sales@stronghandtools.com | 8750 Pioneer Blvd., Santa Fe Springs, CA 90670 U.S.A.
- Page 2 PART LISTS RHINO CART PART NO.: TPL3021 ® MOBI LE FI XTURI NG S TATI ON RHINO CART ® MOBI LE FIXTUR ING S TATION Part # Name Qty. Pivoting Support Arm Bottom Angle Bracket Top Angle Bracket Plasma Cutting Slat Threaded Backplate Spacer, Ø20 Adjustable Handle...
- Page 3 ASSEMBLY INSTRUCTION RHINO CART PART NO.: TPL3021 ® MO B ILE FIX TURI NG S TATIO N RHINO CART ® M O B ILE FI XTU RING S TATIO N Unscrew the three M10 screws located on the Rhino Cart frame shown in the image.
- Page 4 ASSEMBLY INSTRUCTION ASSEMBLY INSTRUCTION RHINO CART PART NO.: TPL3021 ® MOBI LE FI XTURI NG S TATI ON RHINO CART ® Take one of the original M10 screws removed in step 1 and screw it MOBI LE FIXTUR ING S TATION back in through the top hole.
- Page 5 ASSEMBLY INSTRUCTION ASSEMBLY INSTRUCTION RHINO CART PART NO.: TPL3021 ® MO B ILE FIX TURI NG S TATIO N Once completely engaged, take a socket head screw (Part#: 10) and RHINO CART ® M O B ILE FI XTU RING S TATIO N a nut (Part#: 11) and tightened them onto the holes on the tabs of the support arm.
- Page 6 ASSEMBLY INSTRUCTION RHINO CART PART NO.: TPL3021 ® MOBI LE FI XTURI NG S TATI ON Pull up on the assembly so that it pivots 90º. While holding it, take one of the RHINO CART ® handles and pass the threaded end through the large hole of the slot on the MOBI LE FIXTUR ING S TATION support arm.
