OPERATING MANUAL
DMX Relay Interface 3206R-HP RDM
VERSION 3206R-HP Mk8.10 115-230V AC
(C) SOUNDLIGHT 1996-2023 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE RE-
PRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF
THE OWNER *
ALL STATEMENTS WITHIN THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND
ARE BELIEVED TO BE ACCURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIB-
ILITY FOR ERRORS OR OMISSIONS. * THE USER HAS TO CHECK THE SUITABILITY OF THE EQUIP-
MENT FOR THE INTENDED USE. SOUNDLIGHT EXPRESSLY EXCLUDES ANY RESPONSIBILITY FOR
DAMAGES - DIRECT OR INDIRECT - WHICH MAY OCCUR DUE TO MISUSE, UNPROPER INSTALLA-
TION, WRONG OPERATING CONDITIONS AND NON-COMPLIANCE TO THE INSTRUMENT'S INSTRUC-
TIONS, AS WELL AS DISREGARD OF EXISTING SAFETY STANDARDS AND REGULATIONS.
SOUNDLIGHT
Bennigser Strasse 1 D-30974 Wennigsen Tel. 05045-912 93-11
The DMX Company
Advertisement
Table of Contents
Related Manuals for SOUNDLIGHT 3206R-HP
Summary of Contents for SOUNDLIGHT 3206R-HP
- Page 1 DMX Relay Interface 3206R-HP RDM VERSION 3206R-HP Mk8.10 115-230V AC (C) SOUNDLIGHT 1996-2023 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE RE- PRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER *...

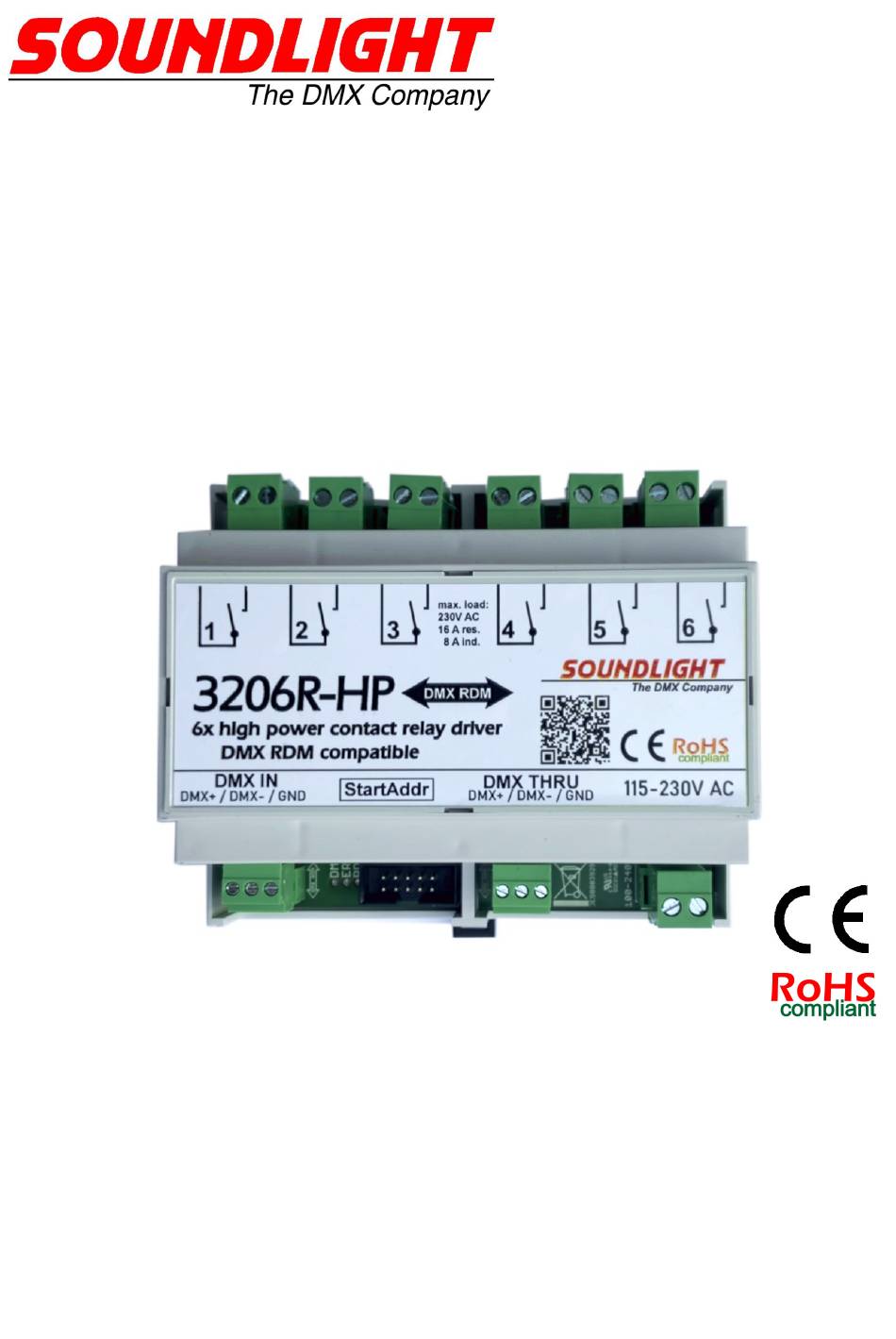

- Page 2 The SOUNDLIGHT 3206R-HP is a cost-effective solution for many purposes. APPLICATIONS The DMX relay decoder 3206R-HP is ideally suited for all kinds of signal switching applications. It features six potential-free high-power N.O. output contacts and high noise immunity. Applications include signal switching and power switching in entertainment lighting systems for theatre, stage and television.
- Page 3 DMX interfaces, pcb and DIN rail mount alike. SAFE SWITCHING The 3206R-HP Mk8 has been designed to provide the hightest performance level and safe switch- ing. Please note, that DMX512 data transmission must be considered as being a standard for fast entertainment lighting effects.
- Page 4 CONNECTORS The decoder 3206R-HP consists of these input and output connectors: CN13 POWER SUPPLY 115...230V AC L, 115-230V AC 50/60 Hz N, 115-230V AC 50/60 Hz Switching output 1 COMMON N.O. Switching output 2 COMMON N.O. Switching output 3 COMMON N.O.
-
Page 5: Signal Indicators
Start address boards are valuable tools and can be used wit many SOUNDLIGHT devices. The DMX relay decoder 3206R-HP has been preset to DMX start address 001. If another start ad- dress is required, it must be set using a start address board 3000P, 3003P, 3005P, 3006P or 3008P. -
Page 6: Rdm Functions
RDM FUNCTIONS: For a full description of all RDM functions available pls refer to our RDM MANUAL, which is avail- able for free download at www.soundlight.eu/produkte/manuals FUNCTION PROGRAMMING If you do not own a DMX RDM controller, some options may be programmed using a standard start address board 3000P. -
Page 7: Programming Codes
DMX RDM The 3206R-HP RDM ist kompatible with ANSI E1-20 DMX RDM Version 1.0. Please note some special properties of devices complying with DMX RDM: - DMX HOLD properties are not supported by RDM standard ANSI E1-20. A factory specific com- mand (DMX HOLD) has been added to compensate these restraints. -
Page 8: Technical Data
Storage Temperature: 0...70°C Operating Temperature: 0...50°C Order code: 3206R-HP RDM CE CONFORMITY This DMX relay interface is microprocessor controlled and uses high frequency (8 MHz quartz). The interface has been tested in our EMC lab to comply with EN55015 and IEC65/144. -
Page 9: Limited Warranty
- connection to wrong voltage or current; - misuse. SERVICE There are no parts within the DMX relais card 3206R-HP which require the user's attention. Should your unit require servicing, please send it to the factory, freight paid. END OF LIFETIME When the useful lifetime of this product has been reched, it must be disposed of properly.
