PCB Piezotronics ICP 355A44 Installation And Operating Manual page 16

4
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
B
.32 [8.0]
.04 [1.0]
A
3.) RECOMMENDED MOUNTING TORQUE 1 TO 2 IN-LBS [11 TO 23 N-cm]
2.) MOUNTING SURFACE SHOULD BE FLAT TO WITH .001 [0.03] TIR OVER
FOR BEST RESULTS
1.) DRILL PERPENDICULAR TO DATUM "A" TO WITHIN
4
3
 .46 [11.7]
1-72 X .41 SHCS STAINLESS STEEL
WITH SAFETY WIRE HOLE
STAINLESS STEEL WASHER

.46 [11.7]
MOUNTING HOLE PREPARATION
 .0625 [1.59]
A
1-72 UNF-2B

.75 [19.1] WITH A MINIMUM FINISH OF 63 [1.6]
 1 
3
 .13 [3.3]  MIN
 .09 [2.3]  MIN
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN INCHES
DECIMALS XX ±.01
XXX ±.005
ANGLES  2 DEGREES
FILLETS AND RADII
.003 - .005
2
REV
NR
WHITE: SIGNAL (+)
SHIELD
WHITE/BLUE: GROUND (-)
2 CONDUCTOR EFTE
JACKET Ø.102 [2.59] X 20 ft [6 m]
TERMINATING IN PIGTAILS
DRAWN CHECKED
DIMENSIONS IN MILLIMETERS
JDM 11/14/17 JDM 11/14/17
[ IN BRACKETS ]
TITLE
DECIMALS X ± 0.3
XX ± 0.13

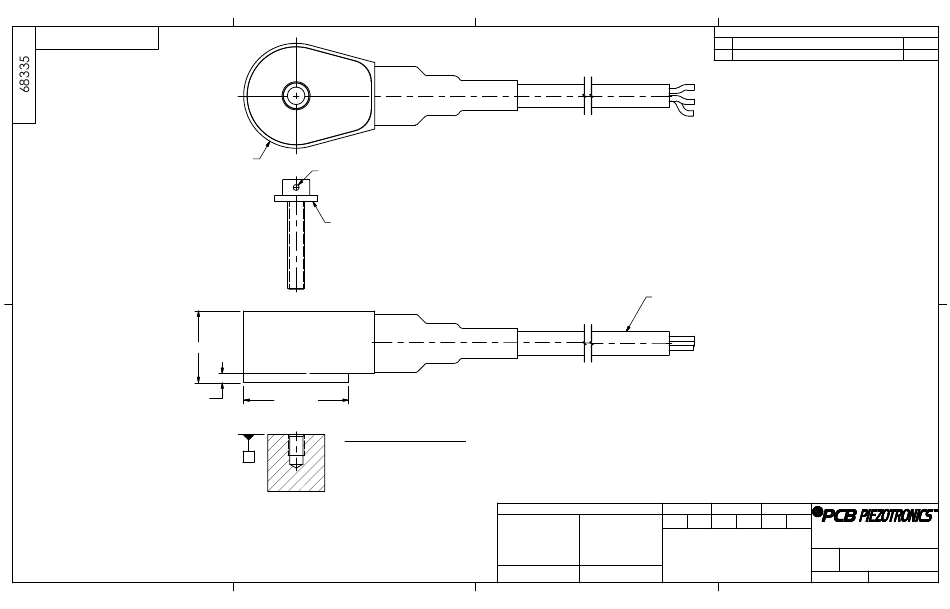

INSTALLATION DRAWING
ANGLES  2 DEGREES
MODEL 355A44
RING ACCELEROMETER
FILLETS AND RADII
0.07 - 0.13
2
1
REVISIONS
DESCRIPTION DIN
RELEASED TO DRAFTING 47437
B
A
ENGINEER
RMB 11/14/17
3425 WALDEN AVE. DEPEW, NY 14043
(716) 684-0001 E-MAIL: sales@pcb.com
DWG. NO.
CODE
68335
IDENT. NO.
52681
SCALE: 4X SHEET 1 OF 1
