PCB Piezotronics ICP 337A31 Installation And Operating Manual page 13

Model Number
337A31
Performance
Sensitivity (±5 %)
Measurement Range
Frequency Range (±5 %)
Frequency Range (±10 %)
Resonant Frequency
Broadband Resolution (1 to 10000 Hz)
Non-Linearity
Transverse Sensitivity
Environmental
Overload Limit
Temperature Range

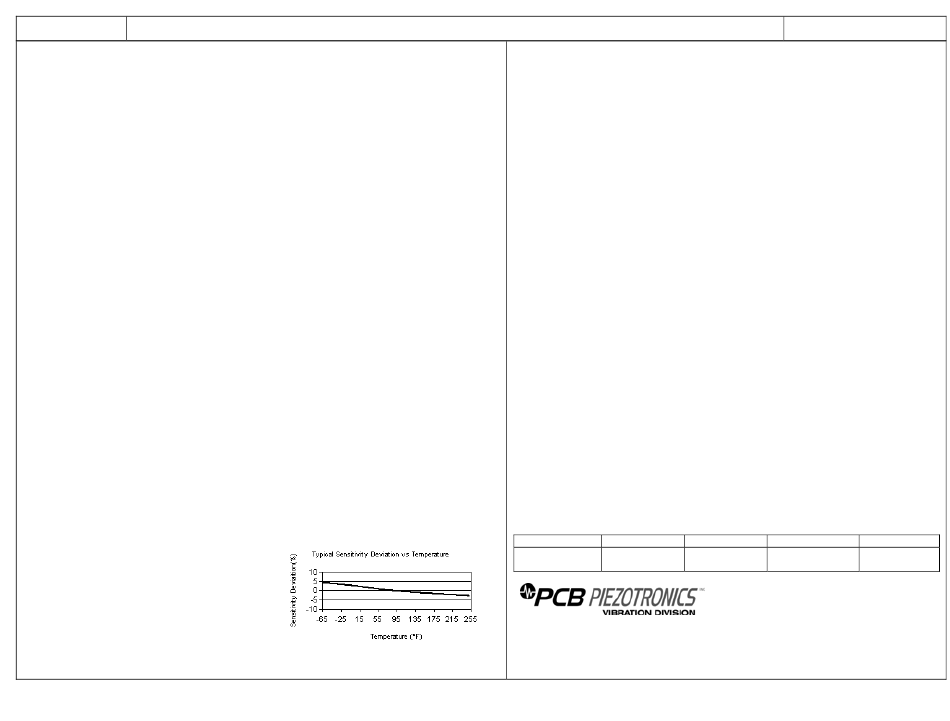

Temperature Coefficient of Sensitivity
Base Strain Sensitivity
Electrical
Excitation Voltage
Constant Current Excitation
Output Impedance (@4mA)
Output Bias Voltage
Discharge Time Constant
Settling Time (within 10% of bias)
Spectral Noise (1 Hz)
Spectral Noise (10 Hz)
Spectral Noise (100 Hz)
Spectral Noise (1 kHz)
Electrical Isolation (Case)
Physical
Size (Height)
Weight (with cable)
Sensing Element
Sensing Geometry
Housing Material
Sealing
Size (Length x Width)
Cable Termination
Cable Length
Cable Type
Mounting
®
ICP ACCELEROMETER
ENGLISH SI
10 mV/g 1.02 mV/(m/s²)
±500 g pk ±4905 m/s² pk
1 to 2000 Hz 1 to 2000 Hz
.5 to 5000 Hz .5 to 5000 Hz
>50 kHz >50 kHz
0.01 g rms 0.10 m/s² rms
≤1 % ≤1 %
≤5 % ≤5 %
±5000 g pk ±49033 m/s² pk
-65 to 250 °F -54 to 121 °C
≤0.02 g/°F ≤0.35 m/s²/°C
0.04 g/µε 0.40 (m/s²)/µε
18 to 30 VDC 18 to 30 VDC
2 to 20 mA 2 to 20 mA
≤150 Ohm ≤150 Ohm
8 to 12 VDC 8 to 12 VDC
.5 to 2 sec .5 to 2 sec
<5 sec <5 sec
2
2000 µg/√Hz 19620 (µm/sec /√Hz
2
450 µg/√Hz 4415 (µm/sec /√Hz
2
100 µg/√Hz 981 (µm/sec /√Hz
2
50 µg/√Hz 491 (µm/sec /√Hz
≥200 MOhm ≥200 MOhm
.41 in 10.4 mm
3.2 oz 90.7 gm
Quartz Quartz
Shear Shear
Stainless Steel Stainless Steel
Welded Hermetic Welded Hermetic
1.22 in x .84 in 31.0 mm x 21.3 mm
Blunt cut Blunt cut
120 in 3048 mm
042 2-cond 042 2-cond Shielded
Shielded
Through Hole Through Hole
Optional Versions (Optional versions have identical specifications and accessories as listed
for standard model except where noted below. More than one option maybe used.)
Notes
[1] Typical.
[2] Zero-based, least-squares, straight line method.
[1] [3] Estimated value.
[2] [4] See PCB Declaration of Conformance PS023 for details.
Supplied Accessories
42489-01 Bushing, 3/16" ID (1)
42489-02 Bushing, 1/4" ID (1)
[1]
[1]
[1]
[1]
[1]
[3]
Entered: LLH Engineer: MO
Date: Date:
11/03/2009 10/26/2009
Revision B
ECN #: 31693
Sales: LLH Spec Number:
Date: 42544
11/03/2009
