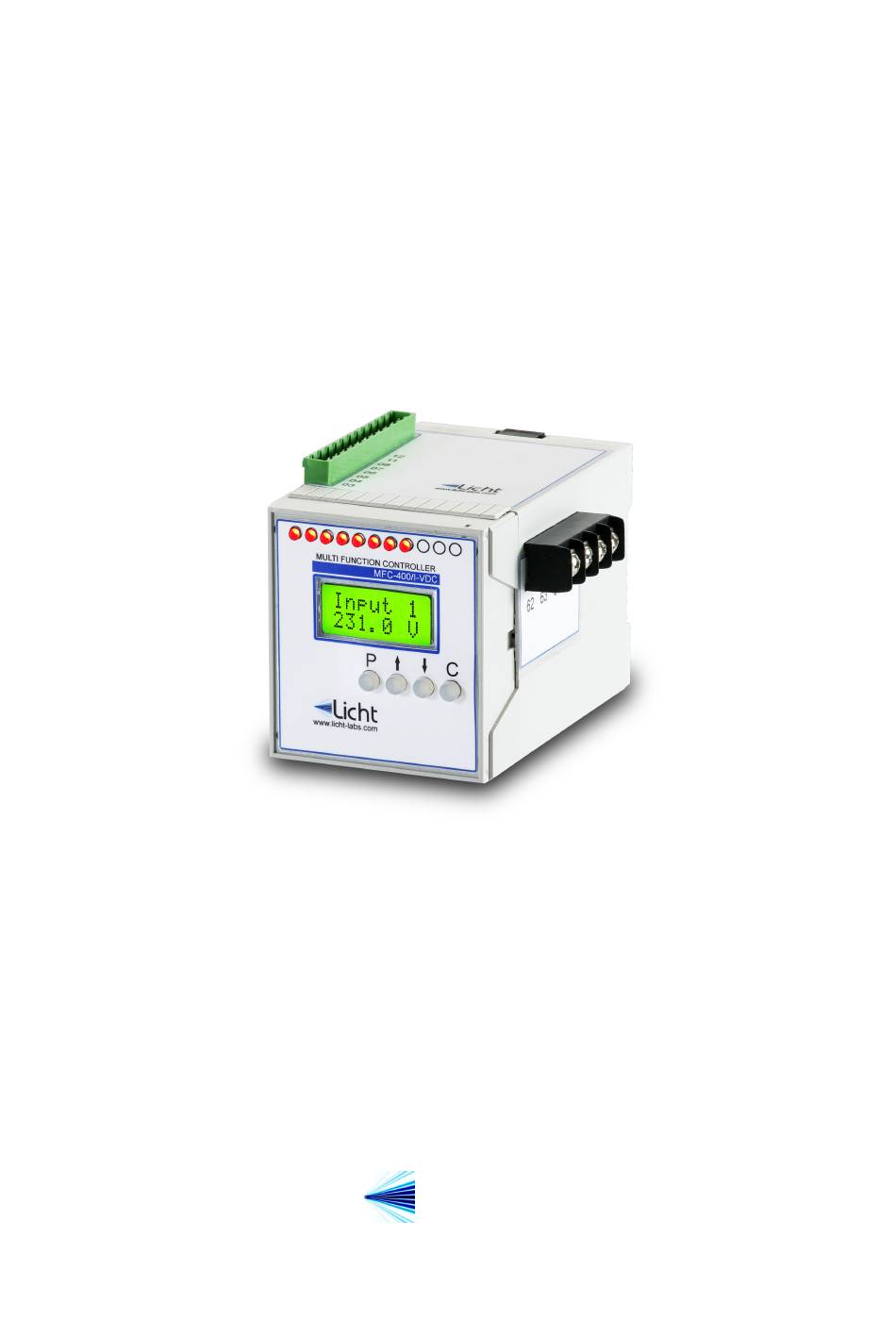

- Page 1 Voltage Indicator/Transducer models MFC-400/I-VAC and I-VDC Technical Manual Licht...
-
Page 2: Table Of Contents
Contents Introduction Front panel indication Configuration Parameter reset Programmable parameters General parameters Current outputs (option) MODBUS protocol DNP3 protocol (option) Language Specifications Connection diagrams MODBUS registers Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual... -
Page 3: Introduction
The MFC-400/I-VAC and MFC-400/I-VDC are precise, highly reliable and versatile mi- crocontrolled devices designed to read, display and retransmit AC or DC voltage values. Each MFC-400/I-VAC or I-VDC features one isolated RS-485 port, which can be used for communication using the MODBUS or DNP3 protocols. -
Page 4: Front Panel Indication
Licht http://www.licht-labs.com info@licht-labs.com 2 Front panel indication During operation, the MFC-400/I-VAC or I-VDC displays its voltage measurement. The presented value is equal to the measured voltage multiplied by the Sampling Factor para- meter. Figure 2.1 Front Panel Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual... -
Page 5: Configuration
3 Configuration Parameterization The MFC-400/I-VAC and MFC-400/I-VDC feature 4 keys to access their functions. The procedure to configure any parameter is as follows: 1. Press the P key to enter the parameters menu. 2. Enter the currently configured 4 letter password one letter at a time, using the keys to select each letter and P to advance between letters. -
Page 6: Programmable Parameters
4 Programmable parameters The MFC-400/I-VAC and MFC-400/I-VDC were developed to provide the user with the greatest possible flexiblity, such that all supervision and configuration can be executed on-site or remotely through the existing communication channels. We define all user-configurable parameters below. -
Page 7: Dnp3 Protocol (Option)
Parameter: Application Layer Confirmation Options: Only when transmitting events or multi-fragment responses, Always. Description: Selects when the MFC-400 outstation should request application layer confirmations. Parameter: Maximum Inter-Octet Gap Options: 2 to 100 ms. Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual... -
Page 8: Language
4.5 Language Parameter: Language Options: Portuguese (PT_BR), English (EN_US). Description: Language of the messages and menus displayed on the MFC-400’s front panel. Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual... -
Page 9: A Specifications
Communication RS-485 - MODBUS RTU or DNP3 Communication 9600, 19200, 38400, 57600, 115200 bps 8N1, 8E1, 8O1, 8N2 2 lines with 16 characters each (5 mm). Displays LCD with backlight or VFD. Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual... -
Page 10: B Connection Diagrams
Licht http://www.licht-labs.com info@licht-labs.com B Connection diagrams Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual... - Page 11 Licht http://www.licht-labs.com info@licht-labs.com Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual...
- Page 12 RS-485 pairs must be terminated at both ends by 120 Ω resistors. Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual...
- Page 13 RS-485 devices must be connected in a bus topology. No other network topology (tree, star, ring, etc.) is acceptable. j. Dry contact inputs (if applicable) must free of potentials. Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual...
-
Page 14: Cmodbus Registers
1: 0-5 mA Current Loop - Output Scale 2: 0-10 mA 3: 0-20 mA 4: 4-20 mA Current Loop - Full Scale 1 to 1000 V Measured Voltage 0.0 to 1000.0 V Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual... - Page 15 Licht http://www.licht-labs.com info@licht-labs.com Rev. A0 (20–05–09) MFC-400/I-VAC and I-VDC Technical Manual...
