Warning
: Before starting any work ensure
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician. Do not
mount fixtures vertically.
J-box
(by others)
1/4-20 x1"
Aiming screw
End cap
#8-32 x.75"
Cap screw
(x2)
All extra large fixtures require additional bracing/structure around J-box to support fixture.
1.
Securing Power side Pendant to Ceiling
J-box
(by others)
Mounting plate
Canopy
1. Remove canopy and allow it slide down pendant.
2. Using appropriate fasteners(by others), secure mounting
plate to structure/ bracing around J-box.
3. For mounting plate dimensions refer to page three(3).
ADY080864 REV B(ECN080377)

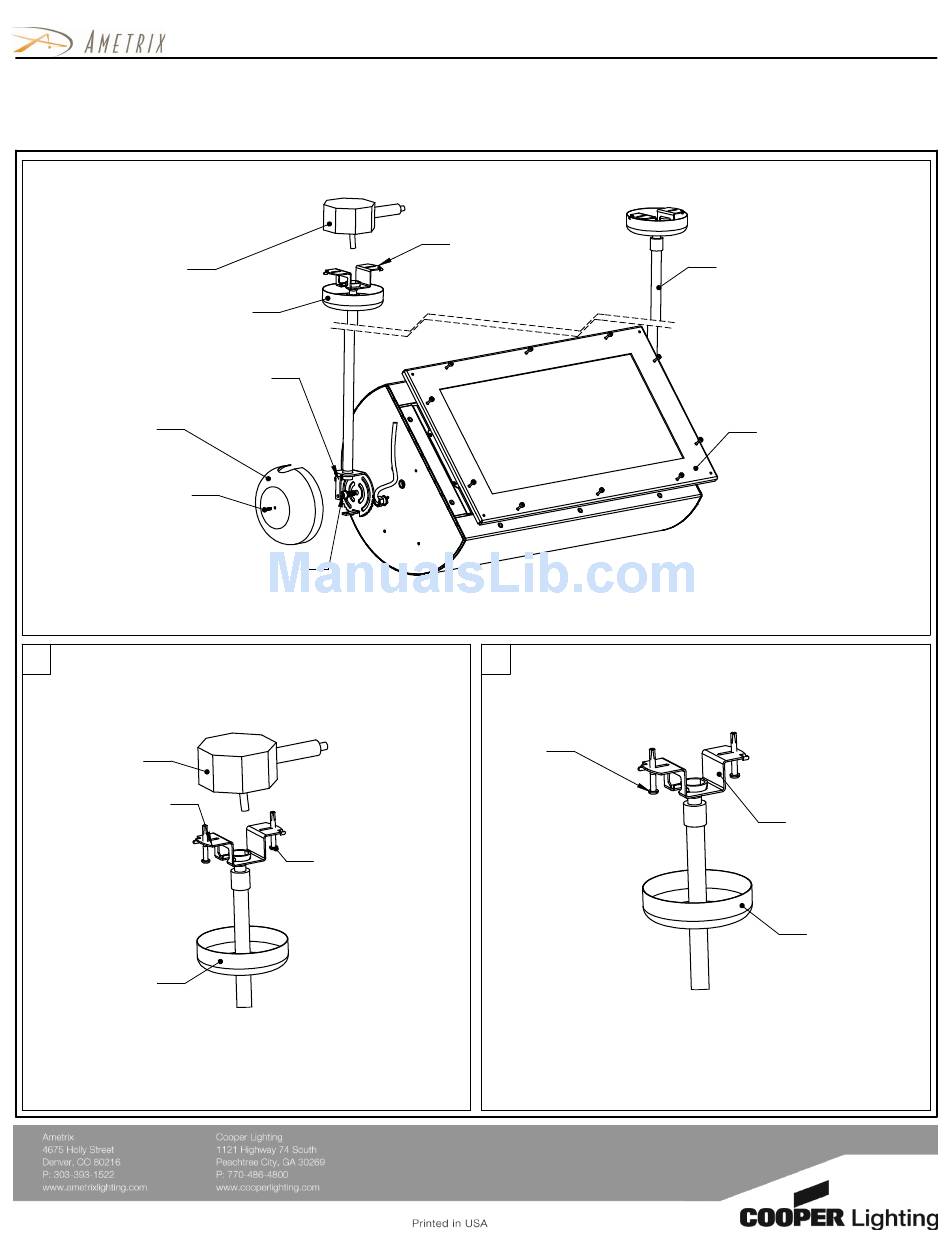

Exploded View and Part Call-Out
Canopy
3/8-16 x1"
Hex end screw
(x2)
Appropriate fasteners
(by others)
(x2)
Mounting bracket
Attention:
2.
Securing non-Power side Pendant
Appropriate fasteners
(by others)
(x2)
1. To mount non-power side pendant, use dimensions provided
on page three(3).
2. Using appropriate fasteners(by others), secure mounting plate
to structure/ bracing in ceiling.
Installation Instructions
Sheet 1 of 3
Roundel, XL
INDOOR
PS
(Pendant Swivel)
Visor and Non-Visor
Pendant length dependant
on order(multiple sections
may be required, consult
factory for coupler and
safety wire installation
requirements).
Fixture door
Mounting plate
Canopy
Advertisement
Table of Contents
Related Manuals for Ametrix ADY080864
Summary of Contents for Ametrix ADY080864
-
Page 1: Installation Instructions
1. Remove canopy and allow it slide down pendant. 2. Using appropriate fasteners(by others), secure mounting plate to structure/ bracing around J-box. 3. For mounting plate dimensions refer to page three(3). ADY080864 REV B(ECN080377) Exploded View and Part Call-Out Mounting bracket Attention:... - Page 2 3. To adjust angle of fixture head, loosen both 1/4-20 x1" aiming screws. 4. Rotate fixture head to desired angle and secure with both 1/4-20 x1" aiming screws. 5. Replace end cap using 8-32 x.75" end screw. ADY080864 REV B(ECN080377) Canopy Fixture wire 3/8-16 x1"...
- Page 3 (inches/ m m ) 27/ 685.8 250W 27/ 685.8 400W 27/ 685.8 400W 27/ 685.8 750W 27/ 685.8 1000W ADY080864 REV B(ECN080377) Mounting Plate Dimensions 32 " 744.07 " 62.08 1 32 32 " 49.92 36.95 Lamping Size Chart (lamps provided by others)
