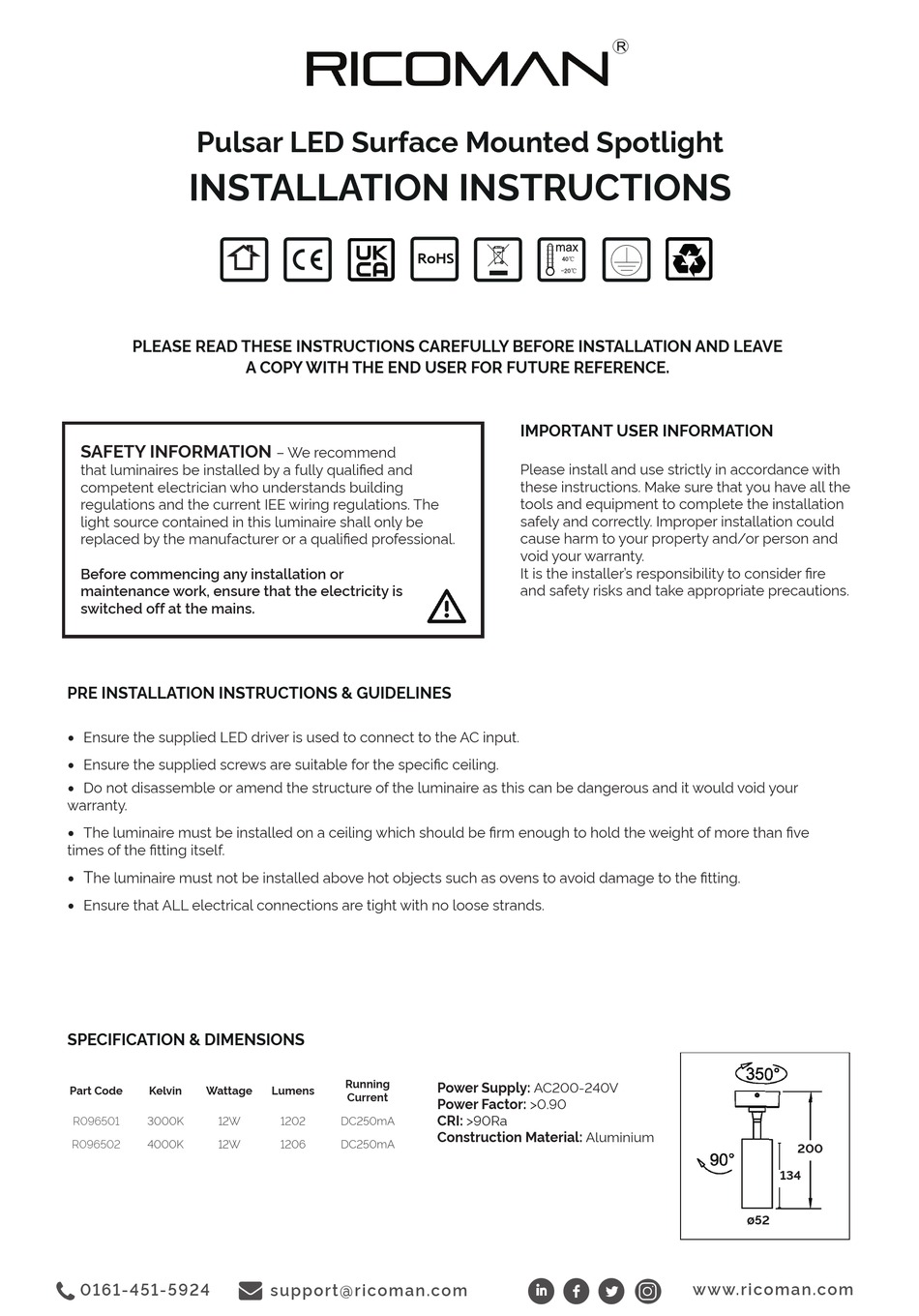

RICOMAN R096501 Installation Instructions

Pulsar LED Surface Mounted Spotlight
INSTALLATION INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND LEAVE

SAFETY INFORMATION

that luminaires be installed by a fully qualified and
competent electrician who understands building
regulations and the current IEE wiring regulations. The
light source contained in this luminaire shall only be
replaced by the manufacturer or a qualified professional.
Before commencing any installation or
maintenance work, ensure that the electricity is
switched off at the mains.
PRE INSTALLATION INSTRUCTIONS & GUIDELINES
•
Ensure the supplied LED driver is used to connect to the AC input.
•
Ensure the supplied screws are suitable for the specific ceiling.
•
Do not disassemble or amend the structure of the luminaire as this can be dangerous and it would void your
Warranty.
•
The luminaire must be installed on a ceiling which should be firm enough to hold the weight of more than five
times of the fitting itself.
•
T
he luminaire must not be installed above hot objects such as ovens to avoid damage to the fitting.
•
Ensure that ALL electrical connections are tight with no loose strands.
SPECIFICATION & DIMENSIONS
Part Code Kelvin Wattage
R096501 3000K 12W
R096502 4000K 12W
0161-451-5924
RoHS RoHS
A COPY WITH THE END USER FOR FUTURE REFERENCE.
– We recommend
Running
Lumens
Current
1202 DC250mA
1206 DC250mA
support@ricoman.com
IMPORTANT USER INFORMATION
Please install and use strictly in accordance with
these instructions. Make sure that you have all the
tools and equipment to complete the installation
safely and correctly. Improper installation could
cause harm to your property and/or person and
void your warranty.
It is the installer's responsibility to consider fire
and safety risks and take appropriate precautions.
Power Supply: AC200-240V
Power Factor: >0.90
CRI: >90Ra
Construction Material: Aluminium
i f l
200
134
∅52
