Summary of Contents for Bionix B4000

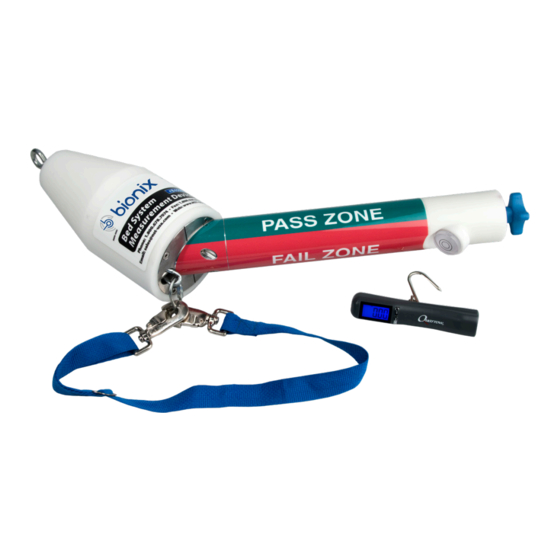

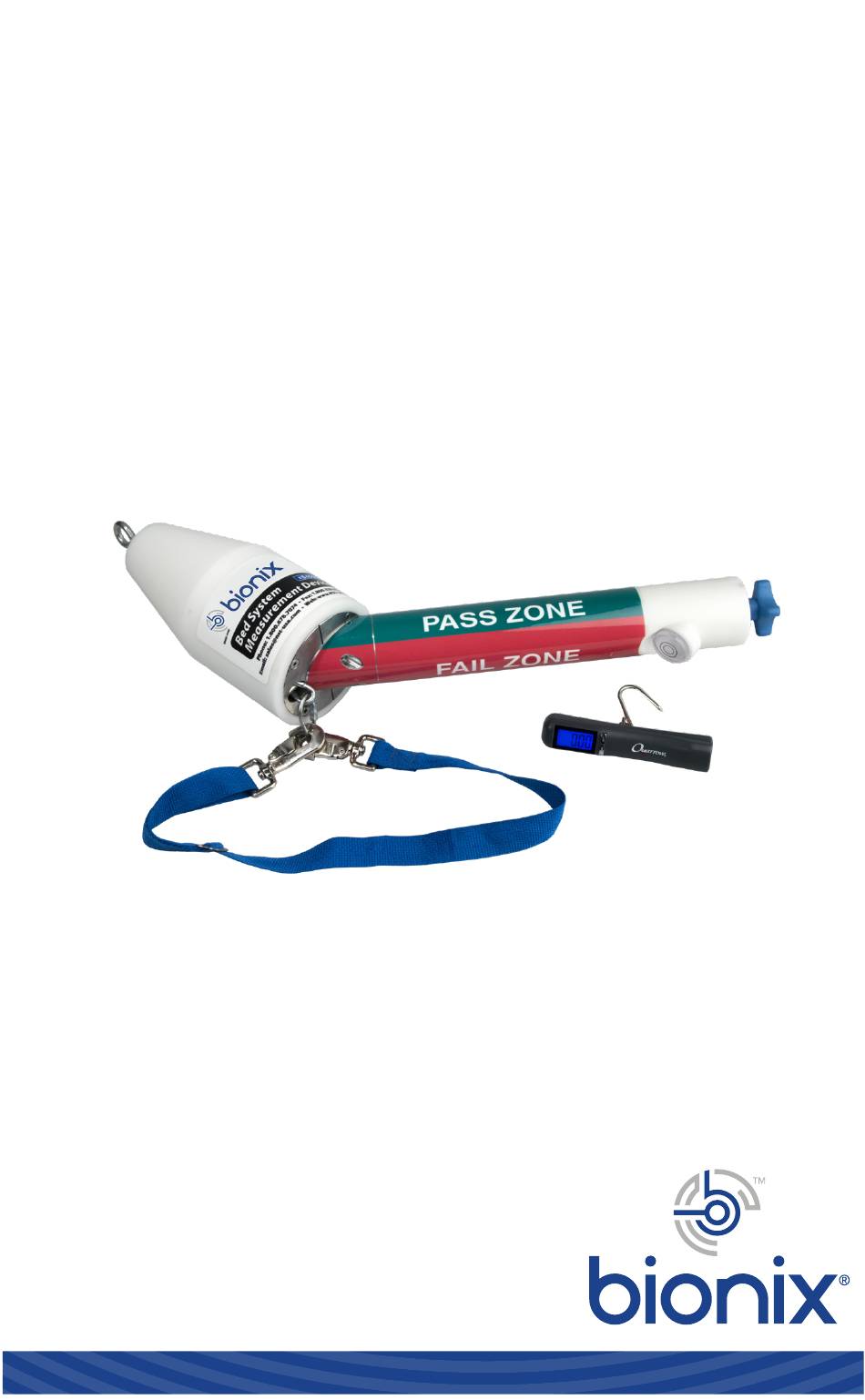

- Page 1 B4000 Bed System Measurement Device INSTRUCTION MANUAL INNOVATIVE SOLUTIONS FOR EVERYDAY PROBLEMS...
-
Page 2: Test Methods
System Dimensional Guidelines to Reduce Entrapment”. These guidelines aid in the design of new bed systems and assess entrapment risks associated with hospital bed systems. In response to these guidelines, Bionix offers the innovative Bed System Measurement Device. Test Methods Zone 1: Potential head entrapment within the rail........ - Page 3 Assemble and Disassemble the Cone and Cylinder Tool • Personal Safety: To avoid injury, use care when pulling the tool through openings in the bed rails. If the tool suddenly pulls To disassemble: through, you could lose your balance and fall. 1.
- Page 4 Zone 2: Potential head entrapment between the the space (figure 3). bottom of the rail and the top of the compressed 3. If the tool does not pull mattress, and between the rail supports or next to a through freely, attach the single support.
- Page 5 Zone 3: Potential head entrapment between the 5. From the inside of the rail, insert the cone, small end first, into the gap between the mattress and the lower edge, between the rail edge of the mattress and the inside of the rail. supports.
- Page 6 Zone 4: Potential neck entrapment between the top 6. Determine whether the cone’s center sinks completely of the compressed mattress and the bottom of the below the surface of the mattress. - Repeat test on all Rails rail at the end of the rail. 7.
- Page 7 4. Position the tool so that the base of the cone is flush or even with the edge of the mattress (figure 10a). 5. Slide the cone and cylinder towards the rail until it touches the rail or support and let the weight of the cone compress the mattress (figure 10b).
- Page 8 • Replace the Device with another Device http://www.ute.kendal.org/learning/documents/ clinicalguidance_siderails.pdf The obligation of Bionix to repair or replace at its option is the sole and exclusive remedy for this limited warranty. 3) Additional information is also available at Extent of Limited Warranty http://www.Bionix.com...
- Page 9 ©2019 Bionix Development Corp. 996 Old Eagle School Road - Suite 1118 Wayne, PA 19087 - U.S.A. Phone: 800.678.7072 | Fax: 800.539.9319 Email: stsales@bionix.com | bionix.com RM95-4000 | Rev. A INNOVATIVE SOLUTIONS FOR EVERYDAY PROBLEMS...
