- Page 1 VerA M User Manual Systems: VerA M...
-
Page 2: Table Of Contents
4. SPECIFICATIONS ......................................8 5. SYSTEM OPERATION ....................................9 5.1. Rigging ........................................9 5.2. Setting up the VerA M system using stands...........................9 5.3. Powered connections ..................................10 5.3.1. VerA M connection panels ..............................10 5.3.2. VerA M connection examples ..............................11 5.3.3 Balanced and unbalanced line inputs. -
Page 3: Panel A. Dimensions
PANEL A. DIMENSIONS VerA M VerA M top VerA M Sub VerA M User Manual rev 1.00... - Page 4 This page was intentionally left empty VerA M User Manual rev 1.00...
-
Page 5: Safety Instructions
INSTALLING OF THIS UNIT MUST BE PERFORMED ONLY BY QUALIFIED TRAINED PERSONNEL FOLLOWING APPLICABLE SAFETY RULES. DO NOT ALLOW INSTALLATION OF THIS UNIT IF INSTALLATION HARDWARE IS BROKEN, BENT, PARTS ARE MISSING, OR IS OTHERWISE DAMAGED. VerA M User Manual rev 1.00... -
Page 6: Regulatory Information
EN 61000-4-4:2012 EN 61000-3-2:2006 /A1:2009 /A2: 2009 EN 61000-4-5:2006 EN 61000-3-3:2013 EN 61000-4-6:2014 EN 61000-3-11:2000 EN 61000-4-11:2004 EN 61000-3-12:2011 EN 60065:2002/A1:2006/A11:2008/A2:2010/ EN 55103-2:2009/IS:2012 A12:2011 Bila Tserkva, Alexey Asanov 22 January 2019 For compliance questions: info@mag-audio.com VerA M User Manual rev 1.00... -
Page 7: About Vera M

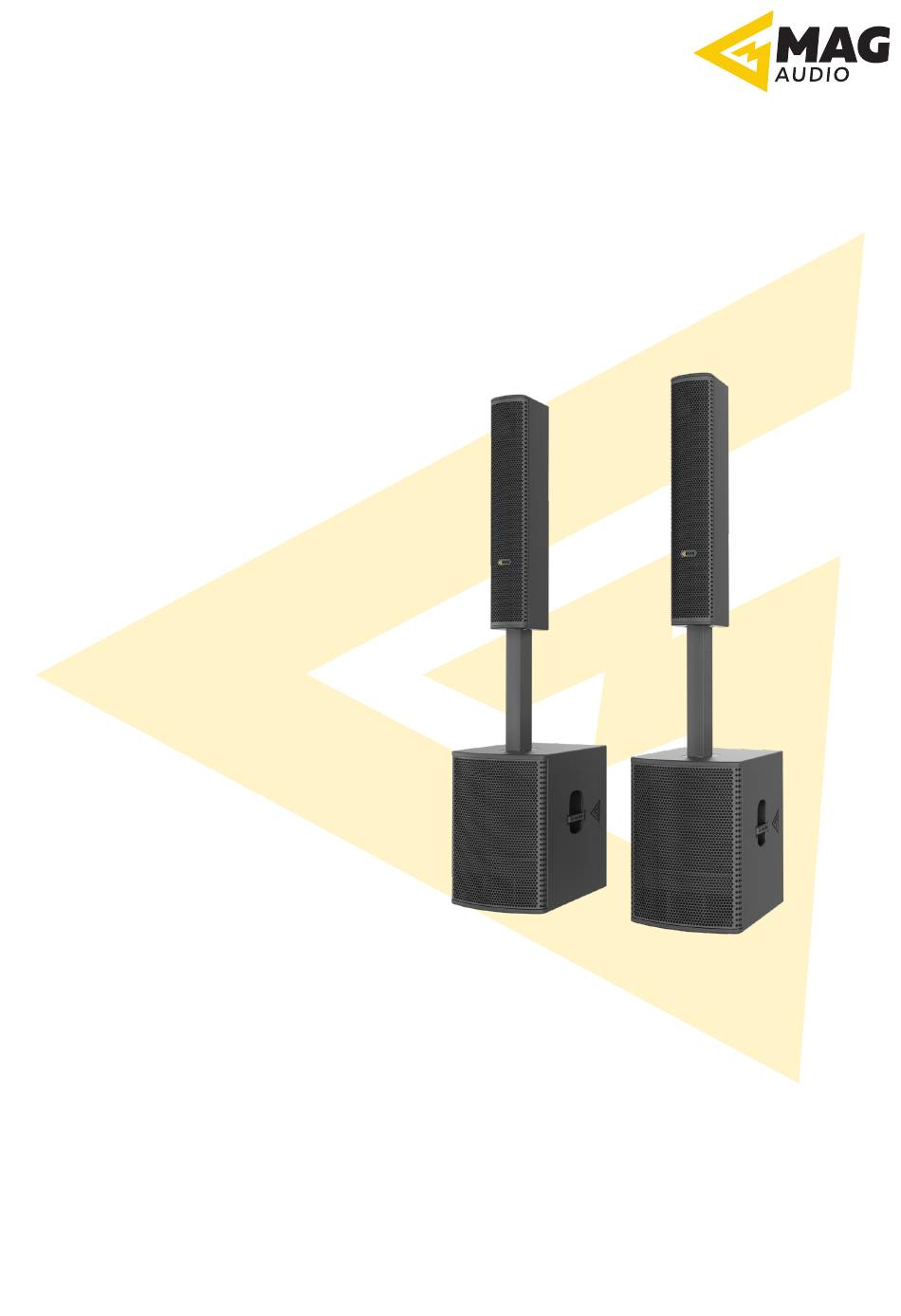

Vera M is the complete solution where a portable, powerful, and reliable sound system is a must-have. It features quad 6” plus 1” low distortion driver satellites and two effective 15” subwoofers. Driven by integrated Powersoft®... -
Page 8: Specifications
VerA M Type Powered speaker set Frequency Response (−10dB) 42 - 20000 Hz Max SPL 132 dB (one VerA M sub + one VerA M top) Sub driver 15” Top drivers 4x 6” + 1” Coverage (HxV) 90° x 40° (one side) -
Page 9: System Operation
5.1. Rigging VerA M system is a ready plug&play speaker set that comes with two stands to place the VerA M top on the VerA M sub. The stand also houses the connecting speaker cable so VerA M is simple to connect, simple to use, and easy to transport. -
Page 10: Powered Connections
5.3. Powered connections VerA M powered set is equipped with highly efficient class D amplifiers with built-in DSP providing all necessary protection and processing for instant set-up and operation. VerA M nominal mains power specifications: AC 220V, 50/60 Hz. Nominal voltage tolerance: 100 - 250 V. -
Page 11: Vera M Connection Examples
5.3.2. VerA M connection examples Mono source VerA M connection Stereo source VerA M connection VerA M User Manual rev 1.00... -
Page 12: Balanced And Unbalanced Line Inputs
5.3.3 Balanced and unbalanced line inputs. VerA M Sub subwoofers are equipped with XLR INPUT and XLR LINK connectors for signal connection. The use of balanced XLR connector cables is recommended. In case when balanced XLR connections are not available, an unbalanced XLR connection is acceptable. -
Page 13: Standard Contents
6. STANDARD CONTENTS Please check the complement of your VerA M system upon receiving the package. Standard contents of VerA M system: System Item Quantity VerA M Sub-BK VerA M Top-BK VerA M-BK HLS-01-BK (Stand) VerA M user manual Packaging set... -
Page 14: Warranty And Assistance
If your device needs repair contact your MAG Audio dealer or distributor. Occasionally, due to the nature of the failure, it might be necessary to return defective products to MAG Audio for repair. In this case, before shipping, please kindly contact your MAG Audio distributor or dealer, or MAG Audio directly. -
Page 15: Notes
9. NOTES VerA M User Manual rev 1.00... - Page 16 2 Merezhna str., Bila Tserkva, Kyiv region, 09100, Ukraine Tel./Fax.: +38 044 2774789 e-mail: info@mag-audio.com www.mag-audio.com...
