Owner's Manual

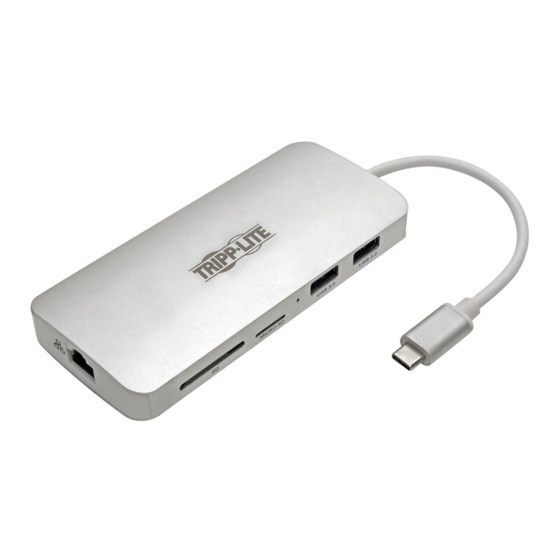

USB 3.2 Gen1 USB-C
Aluminum Docking Station
with PD Charging
Model: U442-DOCK11-S
Este manual esta disponible en español en la página de
Tripp Lite: tripplite.com/support
Ce manuel est disponible en français sur le site Web de
Tripp Lite : tripplite.com/support
Русскоязычная версия настоящего руководства
tripplite.com/support
PROTECT YOUR INVESTMENT!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA
Copyright © 2021 Tripp Lite. All rights reserved.
tripplite.com/support
1
®
11/9/2021 11:53:19 A
11/9/2021 11:53:19 A
Advertisement
Table of Contents
Related Manuals for Tripp Lite U442-DOCK11-S
Summary of Contents for Tripp Lite U442-DOCK11-S
- Page 1 Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com/support Русскоязычная версия настоящего руководства представлена на веб-сайте компании Tripp Lite по адресу: tripplite.com/support PROTECT YOUR INVESTMENT! Register your product for quicker service and ultimate peace of mind.
-
Page 2: Package Contents
Package Contents • U442-DOCK11-S • Owner’s Manual Optional Accessories • N201-Series Cat6 Gigabit Snagless Patch Cables • P566-Series HDMI to DVI Adapter Cables • P569-XXX-CERT* Series High Speed HDMI Cables • U322-Series USB A/B Device Cables • U326-Series USB Micro-B Device Cables •... -
Page 3: System Requirements
System Requirements • Computer with USB-C port that supports USB ® DisplayPort Alternate Mode • DVI* or HDMI monitor • Ethernet network with speeds up to 10/100/1000 Mbps *Requires an adapter. See Optional Accessories for more information. USB Type-C and USB-C are registered trademarks of ®... -
Page 4: Product Features
Product Features • Supports USB DisplayPort Alternate Mode for connecting an HDMI monitor • Supports connection of a DVI monitor (HDMI to DVI adapter required, sold separately) • HDMI port supports 4K UHD video resolutions up to 3840 x 2160 @ 30 Hz •... - Page 5 Product Features • Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading • Supports Wake-on-LAN • Plug and play—no software, drivers or external power supply required 11-038-9337B3-EN.indd 5 11-038-9337B3-EN.indd 5 11/9/2021 11:53:20 A 11/9/2021 11:53:20 A...
-
Page 6: Product Overview
Product Overview USB-C Connector RJ45 Ethernet with Built-In Cable Network Port USB-A Ports 4K HDMI Port Micro SD Memory USB-C Data/ Card Slot Charging Port SD/MMC Memory (Optional) 5V DC Card Slot Power Jack 11-038-9337B3-EN.indd 6 11-038-9337B3-EN.indd 6 11/9/2021 11:53:20 A 11/9/2021 11:53:20 A... -
Page 7: Installation
• If additional power is required for your installation, the U442-DOCK11-S is compatible with user-supplied 5V DC power jacks equipped with a 3.5 x 1.35 x 9.5 mm output plug with a positive tip and negative sleeve. - Page 8 Installation 1. Connect the built-in USB-C cable to USB-C port on your laptop, tablet or other device. 2. Use an HDMI cable to connect a monitor or display to the unit’s HDMI port. 3. Connect USB peripherals to the unit’s USB-A hub ports.
-
Page 9: Specifications
Specifications Input Connectors 1x USB-C (Male) DC Port DC Power (Female) Output Connectors USB-A 2x USB-A (Female) USB-C 1x USB-C (Female) HDMI 1x HDMI (Female) Memory Cards 1x Micro SD, 1x SD/MMC Ethernet 1x RJ45 Environmental Operating Temperature 32° to 131°F (0° to 55°C) Operating Humidity 10% to 85% RH, Non-Condensing... -
Page 10: Warranty And Product Registration
Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. - Page 11 Warranty and Product Registration Product Registration Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply.
- Page 12 Warranty and Product Registration Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE)
