General Description
The Gotop GT-1613-MTGN is a complete
GPS&GLONASS engine module that features
super sensitivity, ultra low power and small form
factor. The GPS&GLONASS signal is applied to
the antenna input of module, and a complete
serial data message with position, velocity and
time information is presented at the serial
interface with NMEA protocol or custom
protocol.
Its –165dBm tracking sensitivity extends
positioning coverage into place like urban
canyons and dense foliage environment where
the GPS&GLONASS was not possible before.
The
small
form
consumption make the module easy to integrate
into portable device like PNDs, mobile phones,
cameras and vehicle navigation systems.
Applications
 LBS (Location Based Service)
 PND (Portable Navigation Device)
 Vehicle navigation system
 Mobile phone
www.gotop-zzu.com
factor
and
low
Page 1 of 32
GPS&GLONASS Receiver Module

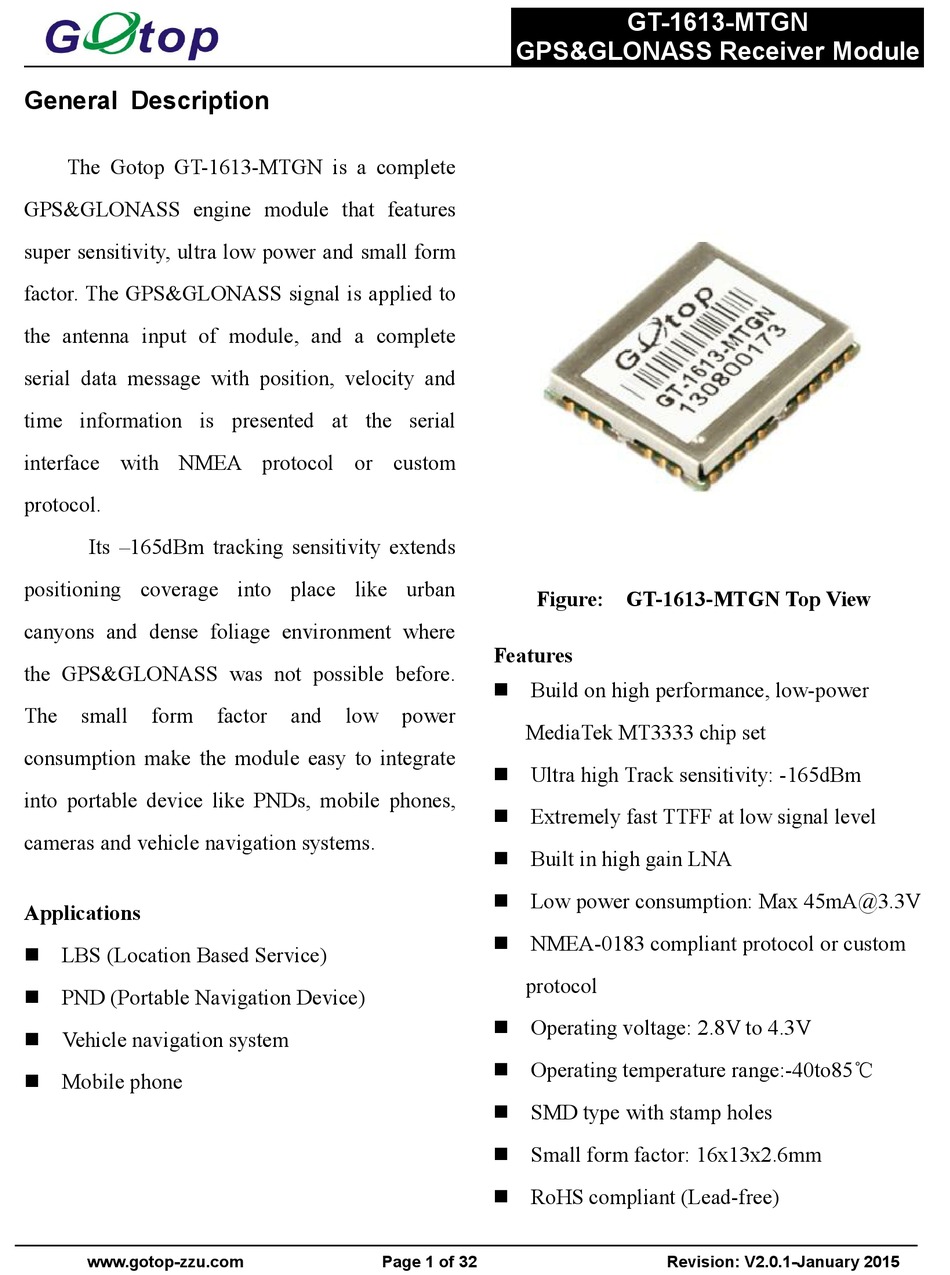

Figure: GT-1613-MTGN Top View
Features
 Build on high performance, low-power
power
MediaTek MT3333 chip set
 Ultra high Track sensitivity: -165dBm
 Extremely fast TTFF at low signal level
 Built in high gain LNA
 Low power consumption: Max 45mA@3.3V
 NMEA-0183 compliant protocol or custom
protocol
 Operating voltage: 2.8V to 4.3V
 Operating temperature range:-40to85℃
 SMD type with stamp holes
 Small form factor: 16x13x2.6mm
 RoHS compliant (Lead-free)
GT-1613-MTGN
Revision: V2.0.1-January 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-1613-MTGN and is the answer not in the manual?

Questions and answers

Summary of Contents for Gotop GT-1613-MTGN

  • Page 1 GT-1613-MTGN GPS&GLONASS Receiver Module General Description The Gotop GT-1613-MTGN is a complete GPS&GLONASS engine module that features super sensitivity, ultra low power and small form factor. The GPS&GLONASS signal is applied to the antenna input of module, and a complete...
  • Page 2: Table Of Contents

    GT-1613-MTGN GPS&GLONASS Receiver Module 1 Description..................................3 1.1 General Description...............................3 1.2. Key Features.................................4 1.3. Block Diagram..............................5 1.4. Protocols Supported by the Module........................5 2 Application..................................6 2.1. Pin Assignment..............................6 2.2. Pin Definition............................... 6 2.3. Power Supply............................... 8 2.4. Operating Modes..............................10 2.4.1.
  • Page 3: Description

    GPS, GLONASS, SBAS (including WAAS, EGNOS,MSAS, and GAGAN),QZSS, and AGNSS. EASY technology as the key feature of GT-1613-MTGN is one kind of AGNSS. Capable collecting and processing all internal aiding information like GPS&GLONASS time , Ephemeris, Last Position,etc.,the GPS&GLONASS module delivers a very short TTFF in either Hot or Warm start.
  • Page 4: Key Features

    GT-1613-MTGN GPS&GLONASS Receiver Module 1.2. Key Features Table 1: Key Features Parameter Specification Power Supply • Supply voltage: 2.8V~4.3V Typical: 3.3V • Acquisition: 45mA @VCC=V_BCKP=3.3V • Tracking: 40mA @VCC=V_BCKP=3.3V Power Consumption • Standby: 2.0mA @VCC=V_BCKP=3.3V • Backup: 20uA @V_BCKP=3.3V •...
  • Page 5: Block Diagram

    GPS&GLONASS Receiver Module 1.3. Block Diagram The following figure shows a block diagram of GT-1613-MTGN module. It consists of a single chip GNSS IC which includes the RF part and Baseband part, a LNA, a SAW filter, a TCXO, a crystal oscillator.
  • Page 6: Application

    GT-1613-MTGN GPS&GLONASS Receiver Module 2 Application The module is equipped with a 36-pin SMT pad that connects to your application platform. Sub-interfaces included in the pad are described in details in the following chapters. 2.1. Pin Assignment Figure 2: Pin Assignment 2.2.
  • Page 7 GT-1613-MTGN GPS&GLONASS Receiver Module Other Interfaces Pin Name Pin No. Description DC Characteristics Comment VOLmin=-0.3V Synchronized at rising One pulse VOLmax=0.4V edge, the pulse width 1PPS per second VOHmin=2.4V is100ms. If unused, keep VOHmax=3.1V this pin open. RF Interface Pin Name Pin No.
  • Page 8: Power Supply

    Power supply solutions for GT-1613-MTGN module are listed as the following.  The simplest power circuit for GT-1613-MTGN module is 3.3V power source connected to VCC pin and VBAT pin of the module directly. In this case, once you powered on the module, the full cold start will be implemented.
  • Page 9 GPS&GLONASS Receiver Module Figure 4: Reference Circuit for Power Supply If your power supply circuit adopts the design mentioned above , GT-1613-MTGN module does not support EASY technology and backup mode as well as other modes related to it,e.g. AlwaysLocate ™...
  • Page 10: Operating Modes

    GT-1613-MTGN GPS&GLONASS Receiver Module VCC does not supply power for RTC domain in GT-1613-MTGN module, so the VBAT pin must be powered externally. Furthermore, it is strongly recommended to supply power to VBAT through a backup battery, which can ensure GT-1613-MTGN module supports EASY technology and improves TTFF after next restart. For details about TTFF, please refer to chapter 1.2.
  • Page 11: Standby Mode

    Backup mode consumes lower power than standby mode. In this mode, only the backup supply VBAT is powered on while the main supply VCC is switched off by host or the TIMER signal of GT-1613-MTGN. In order to enter into backup mode autonomously via the TIMER pin, an external switch circuit is necessary.
  • Page 12 When this command is executed successfully, TIMER signal will be pulled down to close the power switch, so GT-1613-MTGN module can go into backup mode as the main power VCC is cut off. For this case, pulling the GPS_EN signal high by host is the only way to wake the module up.
  • Page 13: Periodic Mode

    GPS&GLONASS Receiver Module 2.4.4. Periodic Mode Periodic mode is a power saving mode of GT-1613-MTGN that can control the full on mode and standby/backup mode periodically to reduce power consumption. It contains periodic standby mode and periodic backup mode. The format of the command which enables the module to enter into periodic mode is as follows: ...
  • Page 14: Alwayslocatetm Mode

    GT-1613-MTGN GPS&GLONASS Receiver Module The following figure has shown the operation of periodic mode. When you send PMTK command, the module will be in the full on mode firstly. After several minutes, the module will enter into the periodic mode and follow the parameters set by you.
  • Page 15: Flp Mode

    FLP function is disabled by default. You can enable FLP by SDK or PMTK command. Sending “$PMTK262,1*29” will enable FLP function, and wait until GT-1613-MTGN module gets a valid fix. Then wait at least 60s for GT-1613-MTGN to enter FLP mode. FLP function will be disabled after sending “$PMTK262,0*28”.
  • Page 16: Uart Interface

    GT-1613-MTGN GPS&GLONASS Receiver Module Table 6: Average Current for FLP Mode and Tracking Mode of GT-1613-MTGN. Scenario In FLP Mode (mA) In Tracking Mode (mA) Static 21.3 Walking 20.9 Running 20.7 Driving 21.4 The EASY and FLP function cannot work at the same time. When you enable FLP by SDK or PMTK command, ...
  • Page 17: Easy Technology

    GT-1613-MTGN GPS&GLONASS Receiver Module This UART port has the following features: UART port can be used for firmware upgrade, NMEA output and PMTK proprietary commands input.  The default output NMEA type setting is RMC, VTG, GGA, GSA, GSV, GLL ...
  • Page 18: Multi-Tone Aic

     Host can get the data from the module via UART by sending“$PMTK622,1*29”.  The raw data which host gets has to be parsed via LOCUS parser code provided by GOTOP. For more details, please contact GOTOP technical supports. www.gotop-zzu.com Page 18 of 32 Revision: V2.0.1-January 2015...
  • Page 19: Pps Vs. Nmea

    3 Antenna Interfaces 3.1. PCB Design Guide The GT-1613-MTGN GPS&GLONASS receiver is designed for supporting the active antenna or passive antenna connected with pin RF_IN. The gain of active antenna should be no less than 15dB. The maximum noise figure should be no more than 2.5dB and output impedance is at 50 Ohm.
  • Page 20: External Active Antenna

    GT-1613-MTGN GPS&GLONASS Receiver Module 3.2. External Active Antenna The following figure is a typical reference design with active antenna. In this mode, DC on the RF_IN pin is powered by VCC and supplies power to the external active antenna. Figure 14: Reference Design for Active Antenna C1, R1, C2 are reserved matching circuit for antenna impedance modification.
  • Page 21: Electrical, Reliability And Radio Characteristics

    GT-1613-MTGN GPS&GLONASS Receiver Module 4 Electrical, Reliability and Radio Characteristics 4.1. Absolute Maximum Ratings Absolute maximum ratings for power supply and vol age on digital pins of the module are listed in the following table. Table 8: Absolute Maximum Ratings values within the specified boundaries by using appropriate protection diodes.
  • Page 22: Current Consumption

    In Hot Start, 15 seconds after First Fix.  4.4. Electrostatic Discharge GT-1613-MTGN module is an ESD sensitive device. ESD protection precautions should still be emphasized. Proper ESD handling and packaging procedures must be applied throughout the processing, handling and operation of any application.
  • Page 23: Reliability Test

    GT-1613-MTGN GPS&GLONASS Receiver Module 4.5. Reliability Test Table 12: Reliability Test Test Item Conditions Standard GB/T 2423.22-2002 Test Na Thermal Shock -30°C...+80°C, 144 cycles IEC 68-2-14 Na Damp Heat, Cyclic +55°C; >90% Rh 6 cycles for 144 hours IEC 68-2-30 Db Test 5~20Hz, 0.96m2/s3;...
  • Page 24: Manufacturing, Packaging And Ordering Information

    6.1. Assembly and Soldering GT-1613-MTGN module is intended for SMT assembly and soldering in a Pb-free reflow process on the top side of the PCB. It is suggested that the minimum height of solder paste stencil is 100um to ensure sufficient solder volume.
  • Page 25: Tape And Reel Packaging

    GT-1613-MTGN GPS&GLONASS Receiver Module 6.4. Tape and Reel Packaging Unit: mm Quantity per reel: 1000pcs Lengh per reel: 20m Figure 17: Tape and Reel Specifications Figure 18: Packaging physical Figure Table 13: Reel Packaging Model Name MOQ for MP Minimum Package: 1000pcs Size: 365mm ×...
  • Page 26: Appendix References

    GT-1613-MTGN GPS&GLONASS Receiver Module 7 Appendix References Table 14: Terms and Abbreviations Abbreviation Description AGPS Assisted GPS Active Interference Cancellation Circular Error Probable DGPS Differential GPS EASY Embedded Assist System EGNOS European Geostationary Navigation Overlay Service Extended Prediction Orbit Electrostatic Discharge...
  • Page 27: Nmea 0183 Protocol

    GT-1613-MTGN GPS&GLONASS Receiver Module UART Universal Asynchronous Receiver & Transmitter VDOP Vertical Dilution of Precision Course over Ground and Ground Speed, Horizontal Course and Horizontal Velocity WAAS Wide Area Augmentation System Inom Nominal Current Imax Maximum Load Current Vmax Maximum Voltage Value...
  • Page 28 GT-1613-MTGN GPS&GLONASS Receiver Module The Gotop GT-1613-MTGN Initialization location mode for GPS&GLONASS dual mode,  Output data:$GNRMC. $GNGGA. $GPGSV. $GLGSV. $GPGSA. $GLGSA.$GNGLL. $GNVTG 8.2 NMEA-0183 data Detailed field 8.2.1 GGA-Global Positioning System Fixed Data $xxGGA, 161229.487,3723.2475,N, 12158.3416,W, 1,07,1.0,9.0,M.0000*18 Table 16: GGA Data Format...
  • Page 29 GT-1613-MTGN GPS&GLONASS Receiver Module 8.2.2 GLL-Geographic Position – Latitude/Longitude $xxGLL , 3723.2475, N,12158.3416, W,161229.487, A*2C. Table 17: GLL Data Format Name Example Units Description Message ID $xxGLL GLL protocol header Latitude 3723.2475 ddmm.mmmm N/S Indicator N=north or S=south Longitude 12158.3416 dddmm.mmmm...
  • Page 30 GT-1613-MTGN GPS&GLONASS Receiver Module Table 18-2: Mode 2 Value Description Manual-forced to operate in 2D or 3D mode Automatic-allowed to automatically switch 2D/3D 8.2.4 GSV-GNSS Satellites in View $xxGSV , 2, 1, 07, 07, 79,048, 42, 02, 51,062, 43, 26, 36,256, 42, 27, 27, 138,42*71 $xxGSV, 2, 2, 07, 09, 23,313, 42, 04, 19, 159, 41, 15,12,041, 42*41.
  • Page 31 GT-1613-MTGN GPS&GLONASS Receiver Module N/S Indicator N=north or S=south Longitude 12158.3416 dddmm.mmmm E/W Indicator E=east or W=west Speed Over Ground 0.13 Knots Course Over 309.62 Degrees True Ground Date 120598 Dummy Magnetic variation Degrees E=east or W=west Check sum <CR> <LF>...
  • Page 32 (‘Gotop’). Information provided by Gotop is believed to be accurate and reliable. These materials are provided by Gotop as a service to its customers and may be used for informational purposes only. Gotop assumes no responsibility for errors or omissions in these materials, nor for its use. Gotop reserves the right to change specification at any time without notice.
