Thank you for purchasing a quality select hardwood Bench. This bench is distributed exclusively by the Hinkle
Chair Company. If you should have any comments or questions or need these instructions in Spanish, please call the
toll-free number below between 8:00 AM and 4:30 PM CST Monday through Friday. Again, we appreciate
your business and hope you get many years of enjoyment from this chair.
NOTICE: The Bench that you have purchased requires assembly. As with all furniture, proper assembly is necessary
for the safe and comfortable use of your bench. Hinkle Chair cannot be responsible for any damage or injury that results
from improper assembly of the bench. Please read and follow these instructions carefully and in sequence.
THE ASSEMBLY PROCEDURES ARE THE SAME FOR BOTH 4 AND 5 FOOT MODELS.
If you have any questions please call The Hinkle Chair Company helpline (800) 251-3025

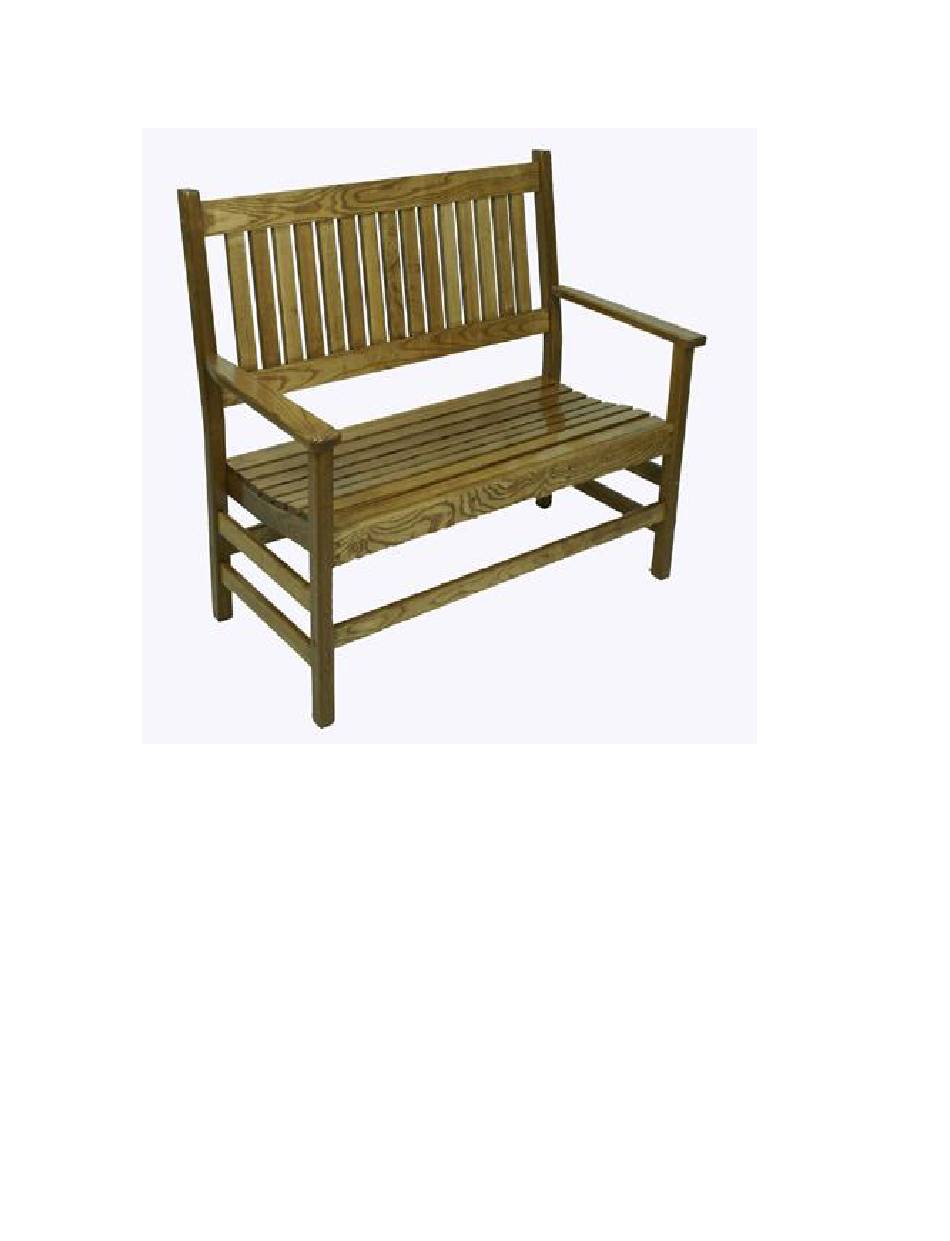

Models will look different but assemble in the same manner
ALL REFERENCE TO LEFT AND RIGHT ARE FROM THE PERSPECTIVE OF
STANDING IN FRONT OF THE BENCH FACING IT, NOT SITTING IN THE
BENCH.
# 854 BENCH ASSEMBLY
INSTRUCTIONS
.
Advertisement
Table of Contents
Related Manuals for Hinkle Chair Company Plantation 854
Summary of Contents for Hinkle Chair Company Plantation 854
- Page 1 Please read and follow these instructions carefully and in sequence. THE ASSEMBLY PROCEDURES ARE THE SAME FOR BOTH 4 AND 5 FOOT MODELS. If you have any questions please call The Hinkle Chair Company helpline (800) 251-3025 Models will look different but assemble in the same manner...
- Page 2 BENCH ASSEMBLY INSTRUCTIONS PARTS INCLUDED: ** Some Parts are Marked** 2 – Bench Side L/R (A) 2 – Bench Seat (B) 1 – Bench Back (C) 4 – Bench Seat Bolts w/Wrench (D) 12 – Buttons large (E) 8 – Bench Side Bolts w/Wrench (F) 2 –...
- Page 3 STEP 1: _________________________________________________________________________________________ Stand Seat (B) up on its end so that the Front (marked) is facing away from you and the left side is facing up. Take the Left Side (A) and position it on the Seat (B) frame. Orient the Side (A) by finding the large pre-drilled hole over insert in Seat (B).
- Page 4 STEP 2: _________________________________________________________________________________________ Place the Bench Back (C) under back post and align the Pre-drilled holes in post with inserts in the Back (C). Insert a Side Bolt (F) into the hole and tighten. Repeat for lower pre-drilled hole in Bench Back (C). Leave bolt loose as before. Fig.
- Page 5 STEP 3:____________________________________________________ _____________ _______________________ Place Bench Long Stretcher (G) under Back post of Bench Side (A) and align the pre-drilled hole with the insert in the Long Stretcher (G). Insert Side Bolt (F) and thread in. .Note: Stretchers are interchangeable. Fig.
- Page 6 STEP 4:________________________________________________________________________________________ Place Bench Right Side (A) onto exposed parts and begin with Bench Seat Bolts (D) by aligning pre-drilled holes with inserts in Bench Seat (B). Thread bolt in not fully tightening as before. Repeat all previous steps inserting Bench Seat Bolt (D) and Bench Side Bolts (F).
- Page 7 STEP 6:__________________________________________________________________ ______________________ Once you have tightened all of the bolts you can place Large Buttons (E) in the pre-drilled holes on the bench. All holes will have a button and can be tapped in with a hammer. You have completed the assembly of your new bench.
- Page 8 CARE TIPS LISTED BELOW ARE SOME TIPS TO HELP KEEP YOUR FURNITURE LOOKING NEW. To preserve the finish on stained or pure white furniture it is highly recommended that they either be placed indoors or in a protected environment such as a covered porch. In any case the finish will last longer and look better if kept out of direct sunlight and blowing rain.
