Summary of Contents for Racing RACMP1545

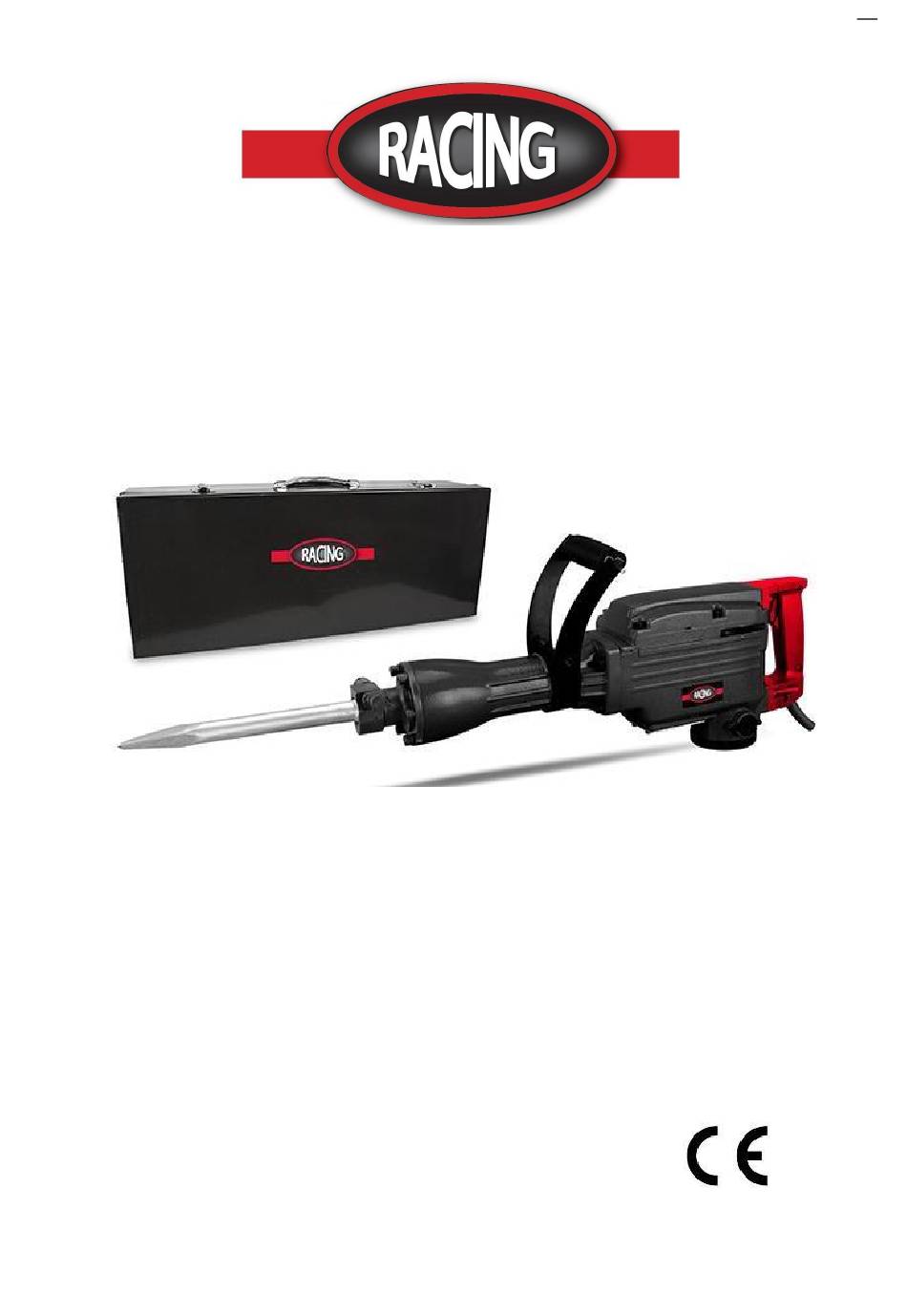

- Page 1 ORIGINAL INSTRUCTIONS DEMOLITION HAMMER RACMP1545 INSTRUCTIONS MANUAL WARNING: READ THESE INSTRUCTIONS BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès-ZI 31270 Cugnaux, France MADE IN PRC - 2020...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY WARNINGS 2. YOUR PRODUCT 3. BEFORE USE 4. UTILISATION 5. MAINTENANCE 6. DISPOSAL 7. DECLARATION OF CONFORMITY... -
Page 3: Safety Warnings
1. SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
- Page 5 WARNING! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.
-
Page 6: Your Product
2. YOUR PRODUCT a. Description 1- Chisel (2 pieces) 2- Front cover 3- Gear housing 4- Trigger switch 5- Rear handle 6- Oil tank 7- Front handle 8- Stop lever 9- 2 x socket head wrench 10- Oiler 11- Screw for the handle 12- Wrench 13- Lubricating oil NOTE: Depending on the model, the description and accessories may vary... -
Page 7: Before Use
Technical data Model RACMP1545 Power 1500W 230-240V˜ 50Hz Voltage Class protection Class II Lwa: 102.8dB(A); K=0.5dB Sound power level Uncertainty Sound pressure level Lwa: 91.8dB(A); K=3dB(A) Uncertainty Vibration 20.706m/s² ; K= 1.5m/s² guarantee sound power 105 dB(A) level Information: ... -
Page 8: Maintenance
4. OPERATION Be careful of hidden electrical lines or gas and water pipes. Check the working area, e.g. with a metal detector. Check the product, power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. -
Page 9: Disposal
Storage After use and cleaning, please store your tool. Store the tool in a clean, dry place, preferably in its box. During transport and storing always put the protection cover on the blade. The tool must be stored away from children and pets. Avoid exposing the tool to direct sunlight. -
Page 10: Declaration Of Conformity
BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: DEMOLITION HAMMER Model: RACMP1545 Serial number: 20210139769-20210143268 Complies with the provisions of the Directive « machinery » 2006/42/EC and national laws transposing it:... - Page 11 8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
- Page 12 9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 13 10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
