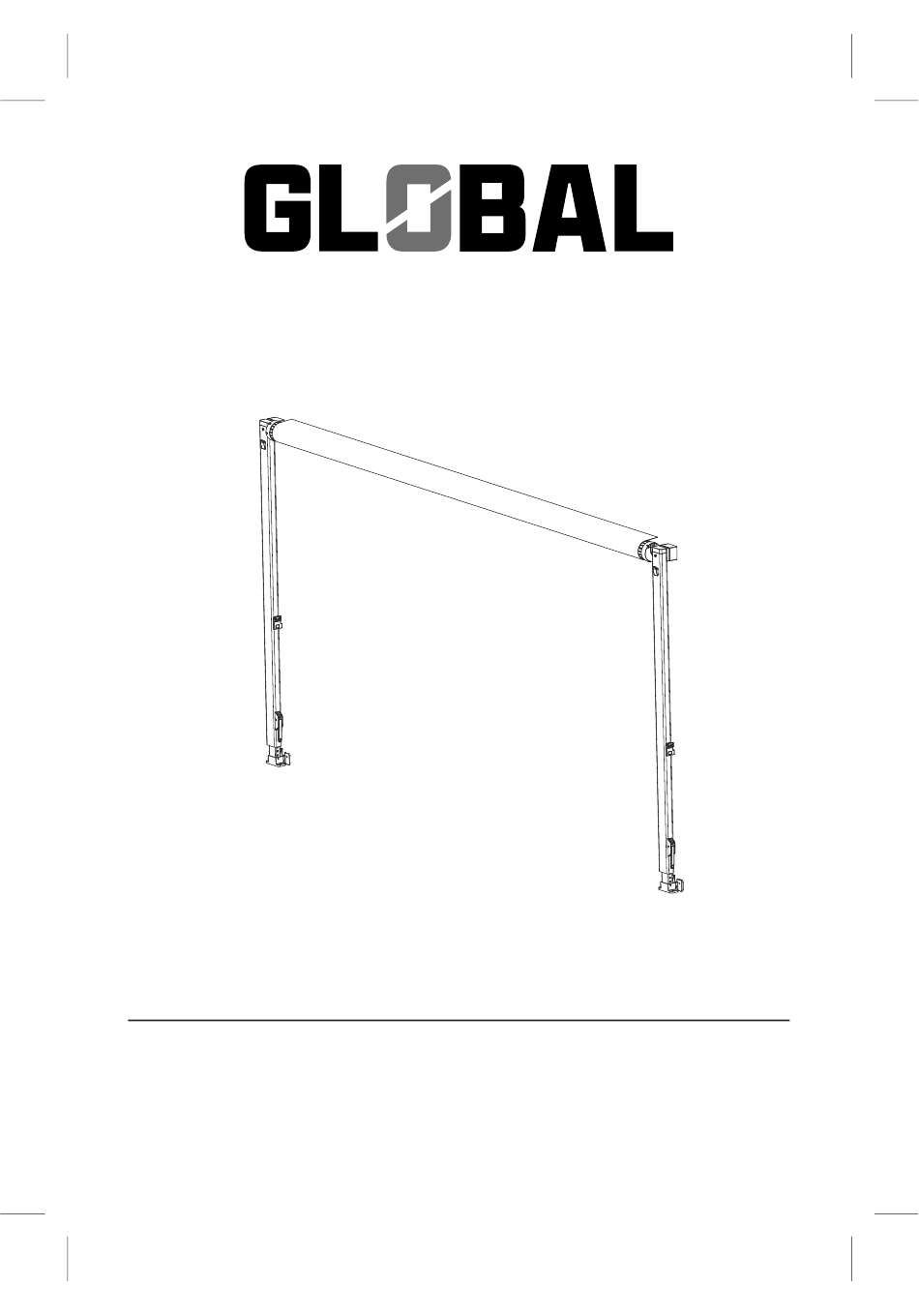

- Page 1 H E R I T A G E Model SAR100 AWNING USER MANUAL More information https://www.caravansplus.com.au...
-
Page 2: Table Of Contents
8 - Warranty ........................Page 12 1 - INTRODUCTION Congratulations and thank you for purchasing a Global Heritage Roll Out Awning. We are confident of your satisfaction and years of enjoyment with our product. In order to make the best of your investment, ensure to carefully review and understand the contents of the entire user manual before use. -
Page 3: Awning Terminology
GLOBAL Heritage Awning User Manual 3 - AWNING TERMINOLOGY Rafter Knob Rafter Main Arm Lift Handle Rafter Release Latch Wall Bracket Safety Travel Latch Awning Fabric Awning Roll Pull Strap Ratchet Lever Roll Cap Page 3 More information https://www.caravansplus.com.au... -
Page 4: Awning Opening Procedure
GLOBAL Heritage Awning User Manual 4 - AWNING OPENING PROCEDURE Release the safety travel latch. Lift the latch upward on both arms. Loosen the red rafter knob on both rafters. CLOSE OPEN Unlock the roll torsion spring. Use the pull rod to... - Page 5 GLOBAL Heritage Awning User Manual 4 - AWNING OPENING PROCEDURE Pull the Awning out. Use the pull rod to pull the Awning strap. Unroll the Awning to the full extended position. Click Slide the rafter up until it locks on the release latch (Repeat for both sides).
- Page 6 GLOBAL Heritage Awning User Manual 4 - AWNING OPENING PROCEDURE A) To raise the Awning: Lift the handle and extend a chosen arm halfway. Then lock the handle back down. B) To raise the Awning: Lift the handle on the other arm and extend to full length.
-
Page 7: Awning Closing Procedure
GLOBAL Heritage Awning User Manual 5 - AWNING CLOSING PROCEDURE Lift the handle on one of the two main arms and slide the arm halfway down. Lift the handle on the second arm and slide the arm fully down. Lift the handle on the first main arm and slide the arm fully down. - Page 8 GLOBAL Heritage Awning User Manual 5 - AWNING CLOSING PROCEDURE Loosen off the rafter knob (Both sides). Pull the rafter release and slide the rafter completely down (Both sides). CLOSE OPEN Pull down the awning pull strap gently and switch the ratchet lever to the ‘Close’...
- Page 9 GLOBAL Heritage Awning User Manual 5 - AWNING CLOSING PROCEDURE Release the pull strap slowly in order to let the awning roll back fully. Close the travel latch (Both sides). Tighten the rafter knob (Both sides). The Awning is now ready for travel.
-
Page 10: Tips For Using Your Awning
GLOBAL Heritage Awning User Manual 6 - TIPS FOR USING YOUR AWNING Walk through position When access from the side is required, the awning arm can be positioned in a ‘Walk Through’ position (Refer to images below). • From the standard awning open position. - Page 11 GLOBAL Heritage Awning User Manual 6 - TIPS FOR USING YOUR AWNING Walk through position cont’d Move the arm perpendicular to the ground and adjust the lift handle until the arm extends to the floor. Secure the arms foot into solid ground with two metal pegs.
-
Page 12: Maintenance & Cleaning
The warranty period is 24 months in Australia following the date of original purchase. During the Warranty Period, Global Heritage will, at no extra charge, repair or replace any parts which it considers to be defective. To enquire about claiming under this warranty, please follow these steps: 1- Check the user manual and the terms of this warranty.
