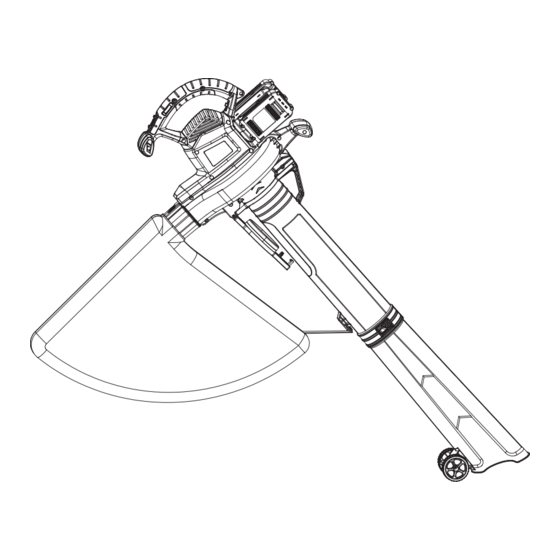

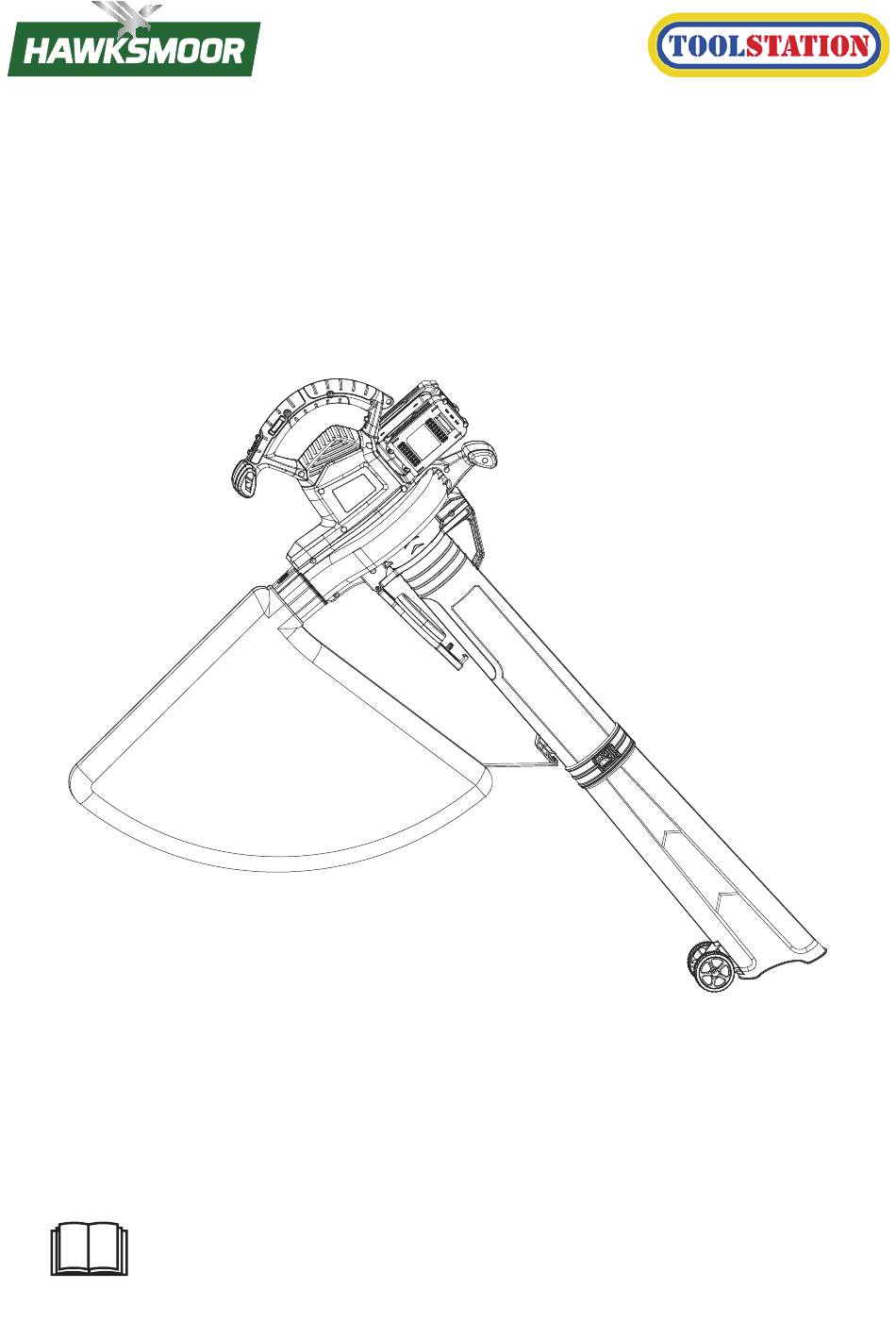

- Page 1 Original User’s Instructions 36V (2 x 18V) Cordless Blower Vac SKU: 33103 READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...
-
Page 2: Table Of Contents
CONTENT ∫ WHAT’S IN THE BOX ---------------------------------------------------------- 3 ∫ SPECIFICATIONS -------------------------------------------------------------- 4 ∫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 5 ∫ IMPORTANT SAFETY WARNINGS -------------------------------------------- 8 ∫ PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 20 ∫ ASSEMBLY AND OPERATING INSTRUCTIONS -----------------------------21 ∫... -
Page 3: What's In The Box
WHAT'S IN THE BOX Main body Rear blower tube Rear vacuum tube Front blower tube Front vacuum tube with wheels Charger Shoulder strap Battery x 2 Collection bag If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk www.coreservice.co.uk Hotline: +44 01904 947568... -
Page 4: Specifications
SPECIFICATION Technical Data Model Number ASYBV01 Rated voltage 36V (2x18V) No load speed 7500-14000/min Max air speed Max. 288km/h Max suction power Max. 10m³/min Sound pressure level =86.4dB(A); K=3.0dB(A); Sound power level =106.4dB(A); K=3.0dB(A) Guaranteed sound power level =109dB(A) Collection bag capacity Battery pack model B0P-SP06-18ZK Battery capacity... -
Page 5: Explanations And Symbols, Cautions And Warnings
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS Read the user's instruction manual and follow all instructions in this manual before attempting to assemble and operate the machine. Safety alert – Indicates a precaution, a warning or a danger. Beware of flying objects and debris. Risk of injury from rotating impeller. - Page 6 DANGER! Rotating impellers pose a serious risk of injury. Keep hair, clothing, and all body parts away from the air intake or any openings. Secure hair above shoulders and behind head. Do not let your hair or clothing get drawn into the appliance. Failure to keep hair, clothing, or body parts away from air intake could result in personal injury.
- Page 7 WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
-
Page 8: Important Safety Warnings
IMPORTANT SAFETY WARNINGS General Power Tool Safety Warnings Warning: Please read the following instructions carefully, failure to do so could lead to serious personal injury. When using the electric blower vac, basic safety precautions, including the following, should always be followed to reduce the risk of fire,electric shock and personal injury. - Page 9 Work Area Safety • Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. •...
- Page 10 • Power tools can produce electromagnetic fields (EMF) that are not harmful to the user. However, users of pacemakers and other similar medical devices should contact the maker of their device and/ or doctor for advice before operating this power tool.
- Page 11 • Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power Tool Use and Care • Do not force the power tool.
- Page 12 • Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Page 13 Preparation • Always wear substantial footwear and long trousers while operating the machine. • Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets. • Always wear protective goggles to protect your eyes from injury when using power tools.
- Page 14 • Switch off the machine and remove the battery packs and make sure that all moving parts have come to a complete stop ∂ whenever you leave the machine. ∂ before clearing blockages. ∂ before checking, cleaning or working on the machine. ∂...
- Page 15 Remove the battery packs from the machine and inspect the machine for damage before restarting and operating the machine.If the machine is damaged, ask Toolstation Authorised Service Centre for repair. • Do not insert fingers or other objects into blower outlet or vac inlet.
- Page 16 and switch off immediately. Contact the service center directly. Do not dismantle, open or shred cells or battery pack. • Do not short-circuit a battery pack. Do not store battery • packs haphazardly in a box or drawer where they may short- circuit each other or be short-circuited by conductive materials.
- Page 17 • Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C). • When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. • Recharge only with the charger specified by manufacturer. Do not use any charger other than that specifically provided for use with the equipment.
- Page 18 • Never modify the plug in any way, this will reduce the risk of electric shock. • Do not abuse the cord of charger. Never use the cord for carrying, pulling or unplugging the charger. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- Page 19 • This charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 20: Product Description And Identifications
PRODUCT DESCRIPTION AND IDENTIFICATIONS 12. Vacuum tube wheels (2) 1. Handle grip 13. Shoulder strap 2. Variable speed control (speed settings 1 to 6) 3. On/Off switch 14. Collection bag 15. Collection bag strap 4. Motor housing 16. Collection bag adapter 5. -
Page 21: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS NOTE: To reduce the risk of injury, user must read instruction manual. Intended Use This product is intended for domestic leaf blowing or vacuuming. WARNING: Before assembly and adjusting to the blower vac, ensure the blower vac is turned off and the battery packs are removed. ASSEMBLY WARNING! To avoid serious personal injury, read and understand all safety instructions provided. - Page 22 Assemble as a Blower 1. Slide the rear blower tube forward until the tube releasing button on the air outlet duct clicks into the hole on the blower tube. 2. Slide the front blower tube onto the rear blower tube until the locking clip on the rear blower tube clicks into the hole on the front blower tube.
- Page 23 5. Press the tube release button and remove the blower tube. Tube releasing button Blower tube Assemble as a Vacuum/Leaf shredder 1. Slide the front and rear vacuum tubes together until the locking clip on both sides fully engages. Locking clip Front vacuum tube Rear vacuum tube 2.
- Page 24 3. With the blower tube removed, insert the "wedged" end of the rear vacuum tube into the slot on the unit. Securely fasten the rear vacuum tube by pushing the 2 locking clips on the rear vacuum tube until they snap into the holes on the housing. Locking clip Vacuum tube Wedged locking clip...
- Page 25 To detach the collection bag from the machine, press the tube release button on the air outlet duct and pull the bag adaptor off the air outlet duct. Release the bag strap from the strap holder. Tube release button 5. To remove the vacuum tube assembly, press the inlet cover lock button to unlock, then remove the tube assembly from its housing.
- Page 26 6. Clip the shoulder support strap to the strap hook on the top of the blower, as shown. Shoulder strap clips Shoulder strap hook 7. To adjust the length of the strap, push it from one end to form a loop above, and let out as needed, then pull the strap from the other side to tighten.
- Page 27 BEFORE OPERATION WARNING: The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections otherwise an electrical failure and hazard will occur.
- Page 28 Charging procedure 1) Slide the battery pack into the charger base to make connections. 2) Connect the battery charger to the power supply. The indicator light will be green and flash to show that the charging has started. 3) When charging is completed, the light will be continuous lit, the pack is now fully charged, unplug the charger and remove the battery pack.
- Page 29 OPERATION Starting and Stopping WARNING! Before switching on the tool, ensure that it is not in contact with any object. 1. Insert both batteries into the battery ports. Battery packs 2. To start the cordless blower vac slide the ON/OFF switch forward to show the ON mark. 3.
- Page 30 Speed Control This unit is equipped with six variable speed settings (1 to 6). • Turn the speed dial to position “1” or “2” for LOW speeds. • Turn the speed dial to position “3” or “4” for MEDIUM speeds. •...
- Page 31 • In dusty conditions, slightly dampen surfaces. • Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches and gardens. • Blow debris into a safe, open area away from children, pets, open windows or freshly washed cars.
- Page 32 Vacuum/Leaf shredder mode • Once you have blown the debris/leaves into a pile, you can convert to vacuum mode to collect the debris. • With a firm hold on the vac, tilt the mulcher tubes 2 in – 4 in. (5 cm – 10 cm) from the ground and use a sweeping action to collect light debris.
- Page 33 Clearing a Blocked Tube/Impeller WARNING! To avoid serious personal injury, be sure the unit is OFF and remove the batteries before clearing the impeller. WARNING! To avoid serious personal injury, always wear gloves to protect yourself from the impeller blades or other sharp objects. During the vacuuming process, certain objects such as cloth, rope or large diameter sticks may obstruct the fan and block the motor.
-
Page 34: Care And Cleaning
CARE AND CLEANING WARNING! Remove the batteries before performing any maintenance task. Cleaning the Unit WARNING! To avoid serious personal injury, always turn the unit off and remove the batteries before cleaning or servicing. Use a small brush to clean the outside of the unit. Do not use strong detergents, household cleaners that contain aromatic oils (e.g. -
Page 35: Trouble Shooting
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Unit will not blow or 1. Bag full 1. Empty the bag. vacuum 2. Blocked tube 2. Clear the blockage. 3. -
Page 36: Declaration Of Conformity / Performance
Product Description: Hawksmoor 36V (2 x 18V) Cordless Blower Vac 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration The object of the declaration described above is in conformity with the relevant Community... -
Page 37: Environmental Information
ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 38: Guarantee
Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
