NACD IPGUARD MD-ANT345G Quick Start Manual

Option 1
GSM Aerial connected directly to IPGUARD.
Position on EXTERNAL wall away
from obstructions, do not cover.
(supplied with bracket)
Connects directly to IPGUARD.
Always required if 4G signal to panel
is low but always recommended to
Dimensions: 103mmØ x 32mmD
The MD-ANT345G is supplied
with 3 metres of cable. The
cable should not be visible.
IPGUARD 4G/IP/GSM
1 2 3
ABC DEF
4 5 6
GHI JKL MNO
7 8 9
PQRS TUV WXYZ
A 0 B
* #
LEGEND
A Class E (CAT6) U/UTP x 4no
+ Earth 1.5mm² (6491X)
B 3-core 1.5mm² flex cable (3183Y)
D Class E (CAT6) U/UTP
IMPORTANT
24/7/365
www.baticonnect.com
IPGUARD MD-ANT345G AERIAL
Option 2
GSM Aerial located on roof of building.
MD-ANT345G
get best signal available.
Please make sure you also have a copy of the NACD Full Legend document.

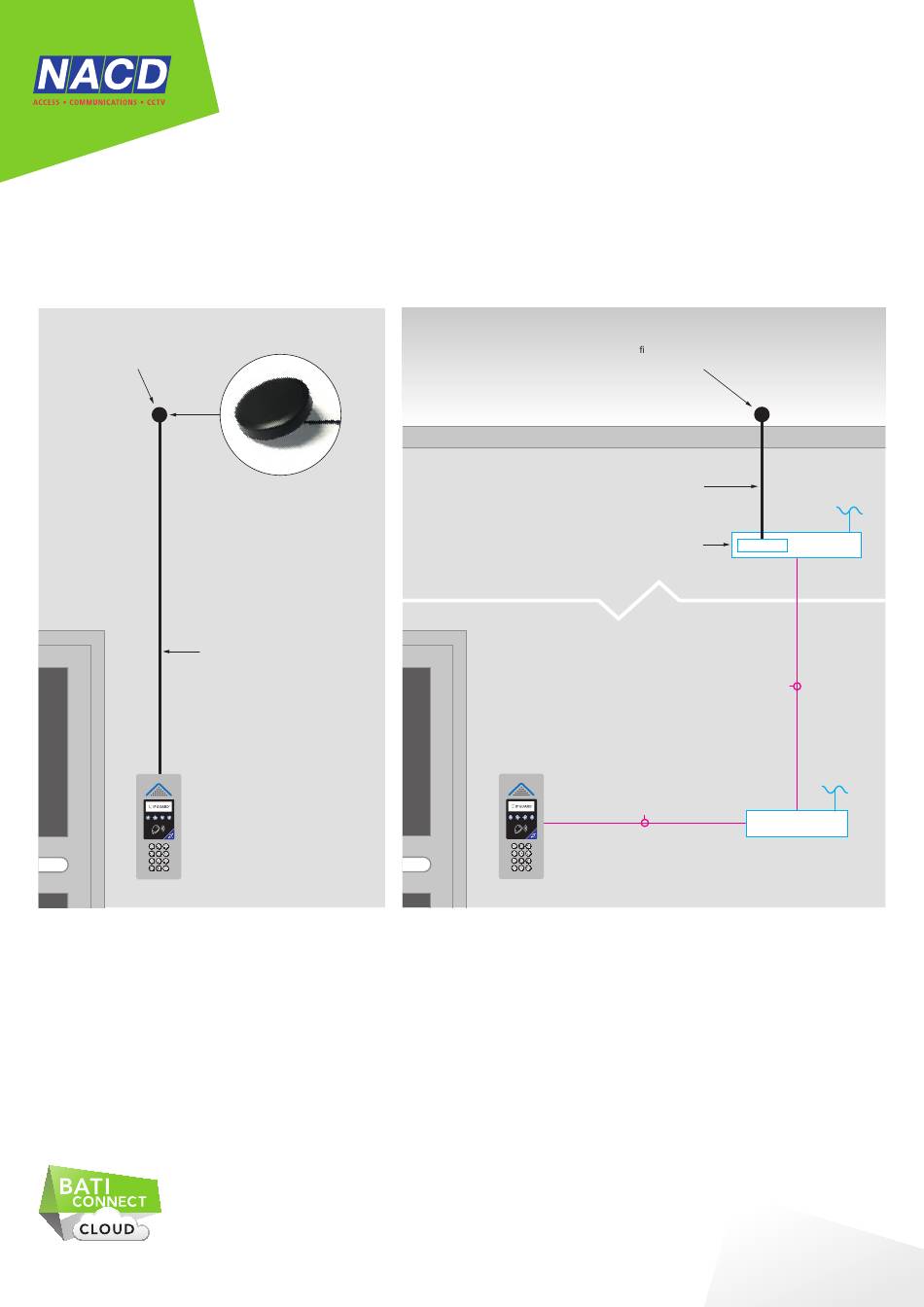

TYPICAL INSTALLATION SCHEMATICS
WITH FIXING BRACKET
MD-ANT345G aerial with xing bracket
located on the roof. Do not cover.
The MD-ANT345G is supplied
250mmW x 400mmH x 100mmD
1 2 3
ABC DEF
4 5 6
GHI JKL MNO
7 8 9
PQRS TUV WXYZ
A 0 B
* #
IPGUARD 4G/IP/GSM
* The MD-ANT345G aerial is also available with thicker cables as follows:
ZCAB54-M with 10 metres of 50 Ohm low loss communication coax cable.
ZCAB53-M with 15 metres of 50 Ohm low loss communication coax cable.
ZCAB52-M with 20 metres of 50 Ohm low loss communication coax cable.
1
with 3 metres of cable.*
Space required
ROUTER
D x 2no
A + B
GROUND FLOOR
www.nacd.co.uk
TOP FLOOR
RISER
RISER
