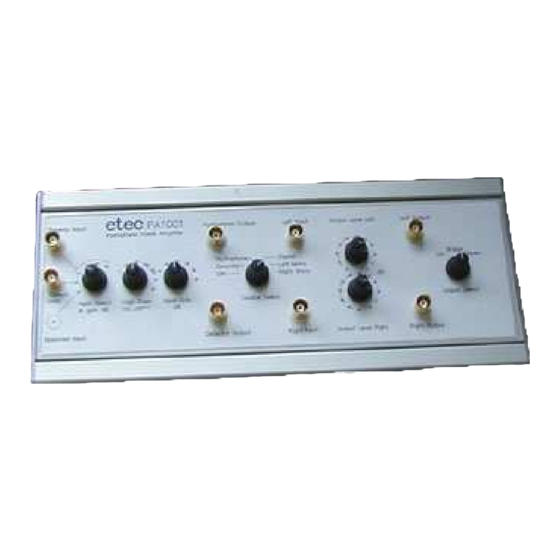

Power amplifier for driving an underwater loudspeaker and a high input impedance hydrophone
amplifier in a suitcase with buildin batteries
This amplifier is designed for driving an underwater piezoceramic loudspeaker like the
Reson type TC2130 or eq.
The Amplifier is capable of driving 90volt peak to peak of signal power up to 300kHz in a capacitive load
of 10nF maximum with a caracteristic impedance of 100ohm.
It also contains a high input impedance hydrophone amplifier and an envelope or "click" detector for
monitoring, recording or listening.
The amplifier is supplied in a watertight suitcase with 4pcs.12volt batteries.
Operating time is appr.12hours on a set of fully charged batteries.
This amplifier is a stand alone unit with a power amplifier and a hydrophone reciever amplifier complete
with buildin envelope or "click" detector and batteries and charger supplied all together in a watertight
suitcase.
High impedance preamplifier input
suitable for piezoceramic transducers
like the Reson type TC4033 or eq.
See also www.RESON.com
Input impedance >1G and < 10pF
