BURK Technology Plus-X 600 Quick Start Manual

QUICK START GUIDE
This Quick Start Guide will show you how to set up the Plus-X 600 in four simple steps. For detailed configuration and setup information,
visit www.burk.com/downloads, select the Plus-X 600 support page and download the Plus-X 600 Installation and Operation Manual.
1 UNPACKING
In addition to this Quick Start Guide, you will find the
following in each package:

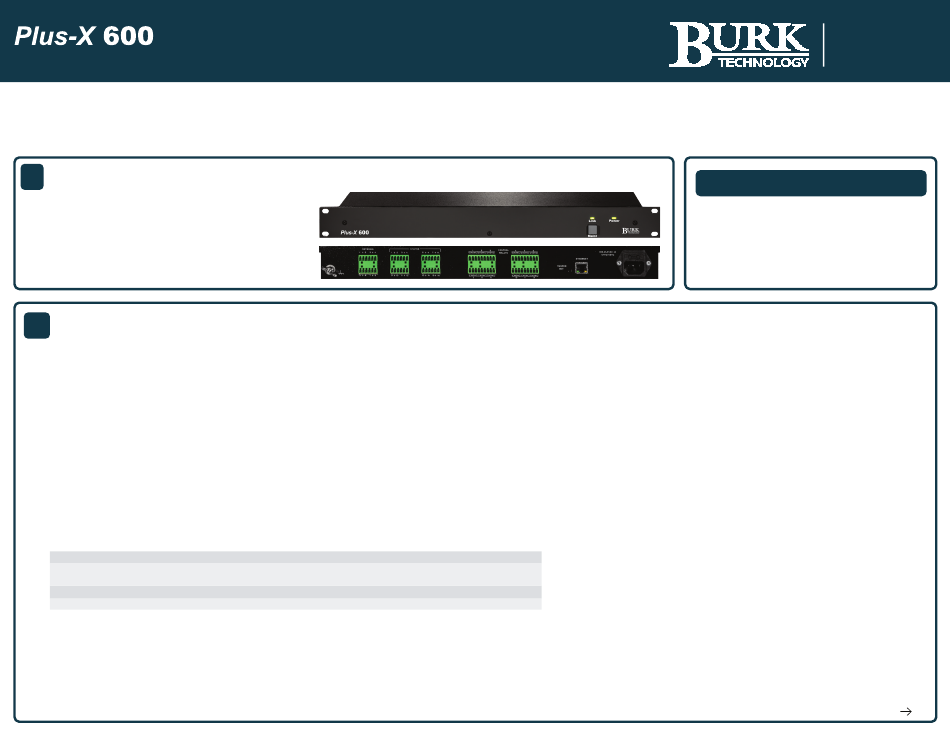

(1) Plus-X 600 Unit (4) 9-pin Terminal Block
(1) Ethernet cable (1) Power Cord
(6) 6-pin Terminal Block
2 NETWORK SETUP
1. Plug in the power cord and connect the Plus-X 600 to your network via the rear-panel Ethernet connector.
2. If your network supports DHCP functionality, a dynamic IP address will be assigned to the unit. If DCHP is not
supported on your network skip ahead to step 3 now. To access the unit, launch a web browser and enter the
hostname PLUSX600/ in the browser's address field then skip to step 5. Be sure to include the forward-slash
symbol in the hostname.
3. If your network doesn't support DHCP, the Plus-X 600 will assign itself the default IP address 192.168.0.100. You
will need to connect a PC with a web browser to the Plus-X 600 at this IP address before you can change the
network settings on the unit. One way to do this is to unplug your PC from any other LAN and connect your PC
to the Plus-X 600 via a network switch or a cross-over ethernet cable. Then configure your PC with a compatible
IP address so that you may connect to the Plus-X 600. Running Windows, the following steps will allow you to
configure your PC with a compatible IP address:
a. From the Control Panel, select Network Connections.
b. Double-click the icon for the network you will be using.
c. On the General tab, click Properties.
d. Click Internet Protocol version 4 "TCP/IPv4".
4. Open a browser and enter the Plus-X 600 default IP address of 192.168.0.100.
5. The web page will prompt you to set a password for the administrator account.
6. The login screen will then be displayed. Enter the username admin and the password you supplied
above.
e. Select Properties.
f. Choose "Use the following IP address" and enter an IP address of
192.168.0.x, where x is any valid address location except 100.
g. Enter Subnet Mask 255.255.255.0
h. Click OK.
CUSTOMER SUPPORT
PHONE:
(978) 486 - 3711
M-F 9am - 5pm EST
7. The first screen displayed after initial login is an abbreviated Network
page requiring you to enter a static IP address for the Plus-X 600. Check
with your network administrator for an available IP address that is not
within the DHCP address range.
8. Your browser will be automatically redirected to the new IP address.
If your initial connection was made without DHCP, your PC should now
be restored to its prior network settings and both the PC and the Plus-X
600 should be connected to the normal LAN.
9. Log in to the Plus-X 600 at its new static IP address, go to the Settings
tab on the web page and select Network to change the network
information.
Add the following network information and select save to confirm the
changes.
a. NetBIOS/Hostname – This name should be changed from its default
value of PLUSX600 so conflicts will not occur if multiple Plus-X devices of
the same model are installed on the network.
b. IP Address – This field will display the static IP address you entered in
a previous step.
c. Subnet Mask – Check with your network administrator otherwise the
factory default setting can be used.
d. Gateway – Check with your network administrator otherwise the
factory default setting can be used.
7 Beaver Brook Rd.
Littleton, MA 01460
www.Burk.com
EMAIL:
support@burk.com
(CONTINUED )
