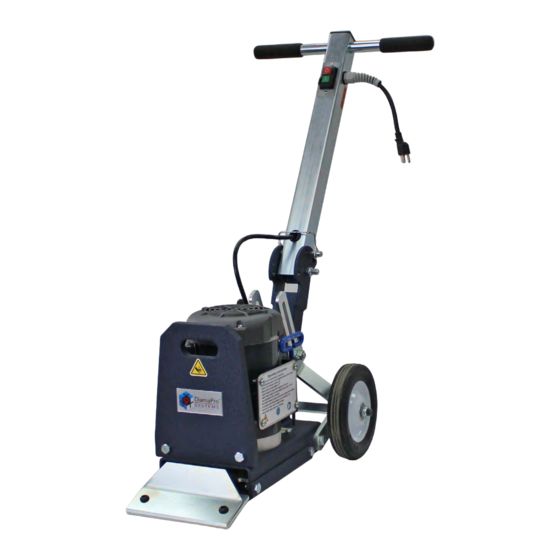

- Page 1 OWNER’S MANUAL SCR-84 WALK-BEHIND FLOOR SCRAPER OPERATION & MAINTENANCE MANUAL SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Warranty Registration Card
First and Last Name Company Name Address City State Zip Code Phone Number Email Machine Information Machine Type Machine Model Serial # Purchase Date (dd/mm/yy) DiamaPro Systems ® 3343 Peachtree Road NE Suite 145 #24 Atlanta, GA 30326 470-977-2323 www.diamaprosystems.com info@diamaprosystems.com... -
Page 3: Spare Parts
WORK SAFETY The scraper SCR-84 is built according to the state of the art and the recognized safety-technical rules and must only be used for its intended purpose in safe working environment. -
Page 4: Intended Use
ON/OFF Switch INTENDED USE The scraper SCR-84 is intended exclusively for light duty removal of bonded floor coverings such as linoleum, rubber, carpets and Handle Angle Adjustment vinyl coverings installed in dry areas on flat walking surfaces. Any... -
Page 5: Operation
3.3. Adjustment of Working Angle 3.6. Sharpening the Blade Always wear gloves and safety A steep / aggressive angle works best for removing glue and for thin materials. A low / less aggressive angle is best for most glasses. removal situations. The type of sub floor can also change what FIG 3-B working angle is best. -
Page 6: Troubleshooting
5. TROUBLESHOOTING FAULT REMEDY Machine will not start Ensure outlet has power, check for damage in cord, Noise from motor Look for damage to fan cover on top of motor Rattling noise from machine Check for proper torque on wheel axles and legs, parts should be easy to move but not loose. -
Page 7: Recommended Replacement Parts
7. REPLACEMENT PARTS RECOMMENDED REPLACEMENT PARTS PART NO. DESCRIPTION QTY. DP-SCR-10251 ON/OFF SWITCH DP-SCR-10426 MOLDED PIGTAIL DP-SCR-10470 CABLE FROM SWITCH TO MOTOR DP-SCR-10427 STRAIN RELIEF DP-SCR-10172 HANDLE PIN DP-SCR-10449 FLAT RUBBER GRIP DP-SCR-10448 ROUND RUBBER GRIP DP-SCR-10146 CUTTING HEAD FLANGE BEARING DP-SCR-10469 ISOLATOR DP-SCR-10477... -
Page 8: Parts Breakdown & Parts List
8. PARTS BREAKDOWN & PARTS LIST ELECTRICAL COMPONENTS PART NO. DESCRIPTION QTY. DP-SCR-10467 ELECTRIC MOTOR DP-SCR-10470 CABLE FROM SWITCH TO MOTOR DP-SCR-10426 MOLDED PIGTAIL DP-SCR-10251 ON/OFF SWITCH DP-SCR-10471 RUBBER GROMMET DP-SCR-10192 SWITCH PLATE DP-SCR-10427 STRAIN RELIEF... - Page 9 8. PARTS BREAKDOWN & PARTS LIST CUTTING HEAD & WHEELS COMPONENT PART NO. DESCRIPTION QTY. DP-SCR-10146 CUTTING HEAD FLANGE BEARING DP-SCR-10475 ECCENTRIC DP-SCR-10469 ISOLATOR DP-SCR-10200 AXEL BOLT DP-SCR-10477 NYLON WASHER DP-SCR-10478 NYLON WASHER DP-SCR-10205 NYLON INSERT LOCK NUT DP-SCR-10206 WHEEL...
- Page 10 8. PARTS BREAKDOWN & PARTS LIST CUTTING HEAD AND DRIVE COMPONENTS PART NO. DESCRIPTION QTY. DP-SCR-10472 WRENCH HOLDER DP-SCR-10306 HEX WRENCH (FOR BLADE CLAMP) DP-SCR-10473 TUBE CAP DP-SCR-10449 FLAT RUBBER GRIP DP-SCR-10448 ROUND RUBBER GRIP DP-SCR-10172 HANDLE PIN DP-SCR-10474 OPERATION INSTRUCTIONS PLATE...
-
Page 11: Ancillary Parts
8. PARTS BREAKDOWN & PARTS LIST FRAME KIT PARTS PART NO. DESCRIPTION QTY. DP-SCR-10198 FRAME DP-SCR-10199 HANDLE DP-SCR-10195 WHEEL LINKAGE DP-SCR-10191 STRAP DP-SCR-10196 WHEEL SPACER DP-SCR-10200 AXEL BOLT DP-SCR-10201 PLAIN STRAP WASHER DP-SCR-10202 STRAP WASHER WITH NUT DP-SCR-10184 HANDLE BOLT DP-SCR-10187 CUTTING HEAD DP-SCR-10185... - Page 12 DiamaPro Systems ® 3343 Peachtree Road NE Suite 145 #24 Atlanta, GA 30326 470-977-2323...
