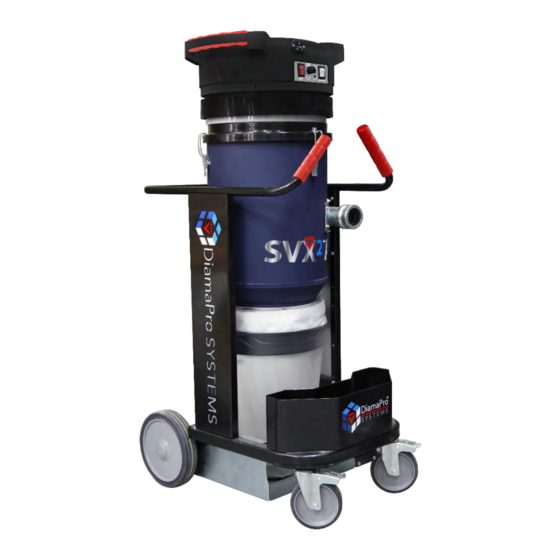

- Page 1 OWNER’S MANUAL SVX2+A INDUSTRIAL VACUUM USER & MAINTENANCE BOOK SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Warranty Registration Card
First and Last Name Company Name Address City State Zip Code Phone Number Email Machine Information Machine Type Machine Model Serial # Purchase Date (dd/mm/yy) DiamaPro Systems ® 3343 Peachtree Road NE Suite 145 #24 Atlanta, GA 30326 470-977-2323 www.diamaprosystems.com info@diamaprosystems.com... -
Page 3: Unintended Use
• Do not use the machine or expose the machine to water, rain, or rain-like DiamaPro SVX2+A. For your own safety and protection from injury, care- ® environments fully read, understand, and observe the safety instructions described in this •... -
Page 4: California Prop 65 Warning
• Check that the vacuum cleaner hasn’t been damaged in any way DiamaPro SVX2+A. For your own safety and protection from injury, ® carefully read, understand, and observe the safety instructions described • Never turn on the machine if it is faulty or if you suspect it is faulty •... -
Page 5: Periodical Maintenance
10. DESCRIPTION 8. PERIODICAL MAINTENANCE Maintenance and cleaning operations must ALWAYS be carried out when the vacuum is turned off and disconnected from the power source. No particular measures must be taken for the maintenance, cleaning or lubri- cation of the suction unit. However, it is important to remember that correct use and servicing are essential if the safety and efficiency of the vacuum are to be guaranteed. -
Page 6: Using The Vacuum Cleaner
14. MOUNTING OF PARTS 12. USING THE VACUUM CLEANER Before switching ON the vacuum be sure the container is empty Connect one end of the flexible hose to desired accessory and the other with the camlock mounted on the filter chamber. (Sew accessories pg.) 15. -
Page 7: Troubleshooting
16. BAG REPLACEMENT 1- Cut the Infinity Bag in order 2- Pull and rotate the retaining pins 3- Remove the Infinity Bag container and to let it open. of the Infinity bag container in order any waste. to unfasten them. 4- Insert the new Infinity Bag with the inner 5- Cut and remove the Infinity Bag closing bands. -
Page 8: Electric Diagram
17. ELECTRIC DIAGRAM Part No. SVX-TERMINAL SVX-LED+ SVX-SWITCH ON/OFF SVX-SWITCH-PURGE SVX-BOARD+ SVX-MOTOR SVX-SHAKER SVX-DIODE SVX-DIAL+ SVX-HOURMETER+ SVX-POTENTIOMETER+... -
Page 9: Top Assembly
18. TOP ASSEMBLY... - Page 10 19. TOP ASSEMBLY Part No. Description Qty. SVX-UHC2A TOP COVER FOR SVX2A SVX-SEGER-2A SEGER FOR EXTERNAL SHAFT FOR SVX2A SVX-COOLINGCAP COOLING BY PASS OPENING CAP FOR SVX2A SVX-HC2A MIDDLE COVER FOR SVX2A SVX-SWITCH-ON/OFF 16 AMP SWITCH WITH CUFFS (1 FOR AUTOMATIC UNIT / 2 FOR SVX2M / 3 FOR SVX3M) SVX-SWITCH-PURGE PUSH BUTTON SWITCH WITH CUFF (FOR SVX3A &...
-
Page 11: Frame Assembly
20. FRAME ASSEMBLY Part No. Description Qty. SVX-LF2A LOWER FRAME (FOR SVX2A) SVX-SIDEFRAME-A SIDE FRAME (FOR AUTOMATIC MODELS) SVX-MOVING-HANDLES MOVING HANDLES (FOR SVX2A) SVX-SLIDESUPPORT-A SLIDING CHAMBER SUPPORT (FOR AUTOMATIC MODELS) SVX-BASE-2A INFINITY BAG BASE (FOR SVX2A) SVX-FRAMEGRIP-A RED FRAME HANDLE GRIP (FOR SVX2A) SVX-CASTER-A FRONT CASTER (FOR SVX3A &... -
Page 12: Hopper Assembly
21. HOPPER ASSEMBLY Part No. Description Qty. SVX-HOPPER-2 HOPPER (FOR SVX2A) SVX-HOOK-SMALL SMALL HOPPER HOOK SVX-INLETGASKET INLET GASKET SVX-INLET INLET SVX-HOPPERGASKET-A HOPPER GASKET (FOR SVXA) SVX-UPPERPLATE-FLAP UPPER PLATE FLAP SVX-OVAL-GASKET OVAL SPONGE RUBBER FLAP GASKET SVX-LOWERPLATE-FLAP LOWER PLATE FLAP SVX-LOCKSPRING INFINITY BAG LOCK SPRING SVX-CONTAINERLOCK INFINITY BAG CONTAINER LOCK... - Page 13 22. ACCESSORIES Part No. Description Qty. SVX-WAND-2 STEEL WAND FOR FLOOR TOOL SVX-FLOORTOOL-2 WET/DRY PLASTIC FLOOR TOOL SVX-BLACKHOSE-CUFF CUFFS FOR 2” BLACK HOSE SVX-HOSE-STANDARD-2-NC 2” STANDARD BLACK HOSE SVX-SQUEEGEE-BLADES BLADE SET FOR FLOOR TOOL 15-1/2 X 17-1/4...
- Page 14 DiamaPro Systems ® 3343 Peachtree Road NE Suite 145 #24 Atlanta, GA 30326 470-977-2323...
