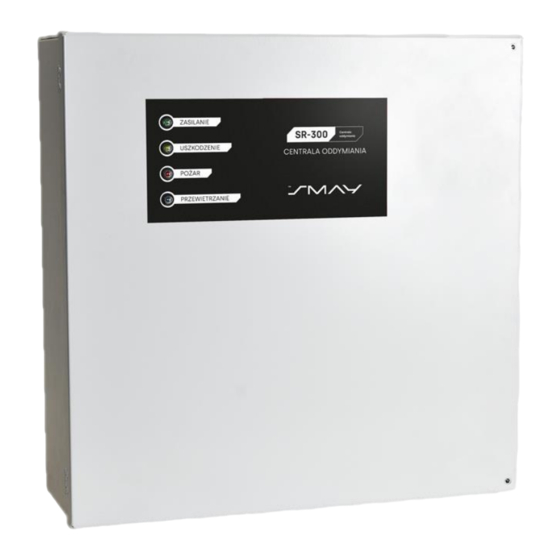

SR-300
a
Smoke Extraction
Control Panel
https:
//
www.smay.eu
Operation and
Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR-300 and is the answer not in the manual?

Questions and answers

Related Manuals for SMAY SR-300

Summary of Contents for SMAY SR-300

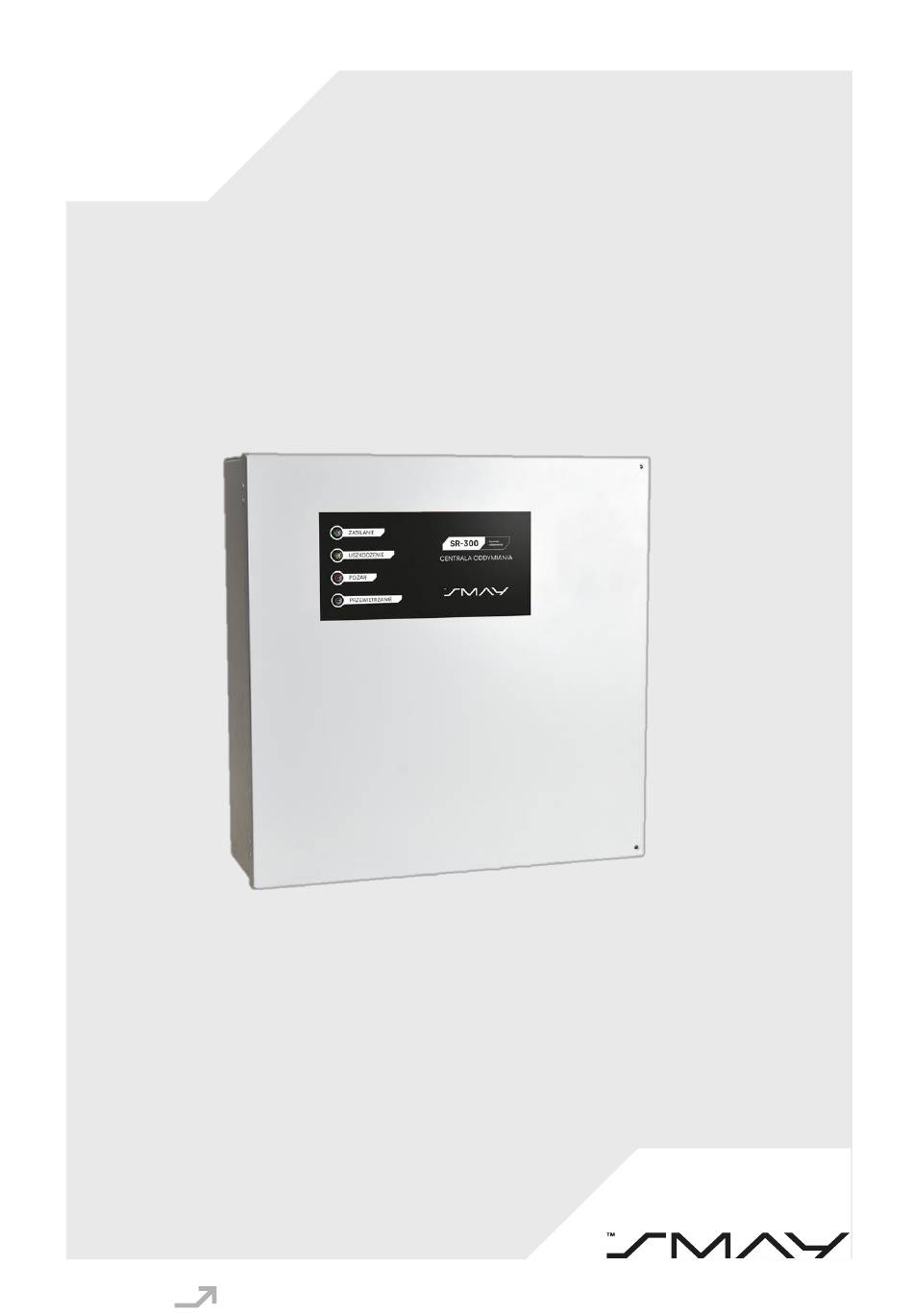

  • Page 1 SR-300 Operation and Smoke Extraction Control Panel Maintenance Manual https: www.smay.eu...

  • Page 2: Table Of Contents

    A-ED electric door strike adapter ...................... 56 9.3. A-SP weather station adapter ......................58 9.4. Resistors simulating devices cooperating with the SR-300 RYS smoke extraction control panel....59 SR-300 RYS Smoke Extraction Control Panel Housing ................60 Version 1.40 Page 1 of 74...

  • Page 3: Introduction

    SR-300 RYS smoke control panel. If the units are operated as intended, this manual and other documents included with the unit contain the instructions necessary for qualified personnel. NOTE: The manufacturer reserves the right to make changes to this instruction manual.

  • Page 4: General Rules Of Safe Use

    Operation and Maintenance Manual SR-300 General Rules of Safe Use The SR-300 RYS smoke control unit was designed and built to comply with the standard: prEN – 12101-9:2011 Smoke and heat control systems – Part 9: Control panels In designing and building the SR-300 RYS smoke control panel, SMAY used the latest technology to guarantees the highest level of safety.

  • Page 5: Legal Regulations

    Concept of the SR-300 RYS Smoke Extraction Control Panel 4.1. Intended use of the SR-300 RYS smoke extraction control panel The SR-300 RYS smoke extraction control panel is designed for the control, supply and monitoring of devices in smoke ventilation systems for buildings. It also provides the ventilation function using a weather station.

  • Page 6: Basic Information

    Selectable group configurations: up to four smoke extraction groups and up to four ventilation groups. The SR-300 smoke exhaust control panel is produced in 12 types, which differ in terms of the number of available inputs/outputs and power. For a description of each type, see subsection 4.4 of this manual.

  • Page 7: Sr-300 Rys Extraction Control Panel Series Types

    5.2 of this manual. In Table 4.1, the inputs/outputs are separate from the inputs/outputs of the manual call points. There is one full input/output under MCP on each SR-300, while a simple MCP input/output is available on selected unit types.
  • Page 8 Operation and Maintenance Manual SR-300 Version 1.40 Page 7 of 74 Release date: 17.02.2023 year...

  • Page 9: Inputs/Outputs Used Depend On The Type Of The Sr-300 Rys

    No-pot. out. – potential-free output • Full MCP in. – full input manual call points • Sim. MCP in. – simple input manual call points 4.5. Inputs/outputs used depend on the type of the SR-300 RYS Description I/O no Type 1.8P 1.20P 2.20 2.29P...
  • Page 10 Operation and Maintenance Manual SR-300 Out 4 Out 5 In. 1 In. 2 In. 3 In. 4 In. 5 In. 6 In. 7 Detector 1 Detector 2 In. 1 In. 2 In. 3 In. 8 In. 9 Version 1.40 Page 9 of 74...
  • Page 11 Operation and Maintenance Manual SR-300 In. 8 In. 9 Out. 6 Out. 7 1.10 In. 4 In. 5 In. 6 In. 12 In. 13 2.10 Detector 3 Detector 4 Sounder 1 Sounder 2 Vis. out. 1 Vis. out. 2 Version 1.40 Page 10 of 74 Release date: 17.02.2023 year...

  • Page 12: Technical Data

    Operation and Maintenance Manual SR-300 Technical Data 5.1. Motherboard view Figure 5.1. Overview diagram of the SR-300 panel motherboard Version 1.40 Page 11 of 74 Release date: 17.02.2023 year...

  • Page 13: Motherboard Description

    Operation and Maintenance Manual SR-300 5.2. Motherboard description The Motherboard is equipped with: • Fire alarm LED – illuminates when there is an active fire alarm in any fire zone, flashing of the fire LED indicates activation of one of the smoke detectors in the line with active coincidence •...
  • Page 14 Operation and Maintenance Manual SR-300 Figure 5.2. View of the SR-300 RYS motherboard. Version 1.40 Page 13 of 74 Release date: 17.02.2023 year...

  • Page 15: Technical Parameters

    Each control unit can be manufactured to IP 40 or IP 54 standards upon request. Below is the standard version. IP 40: SR-300 1.20P, SR-300 2.20, SR-300 2.29P, SR- Protection rating 300 4.20, SR-300 4.29, SR-300 4.39, SR-300 4.48 IP 30: SR-300 1.4, SR-300 1.8, SR-300 1.8P, SR-300...
  • Page 16 Operation and Maintenance Manual SR-300 - Up to fourventilation groups - Up to 4 x 24 V DC actuator outputs - Load capacity of a single output up to 12 A Actuator outputs (outputs X2-X4), output X1 of the actuator...

  • Page 17: Sr-300 Rys Smoke Extraction Control Panel - Additional Cards

    - Optional (see section 6.4 of the manual) Weather station - Optional (see section 6.5 of the manual) Micro-USB socket SR-300 RYS Smoke Extraction Control Panel – Additional Cards It is possible to expand the SR-300 RYS Smoke Extraction Control Panel with additional optional cards. They increase...

  • Page 18: Manual Call Point Card - Additional Card 2

    Operation and Maintenance Manual SR-300 1.10 1.9 1.8 1.7 1.6 1.5 1.4 1.3 1.2 1.1 NC com NO NC com NO Sig. GND sig. GND Configurable Configurable Con- Con- figurable figurable Potential-free outputs Monitored digital inputs Additional Card 1 –...
  • Page 19 Operation and Maintenance Manual SR-300 Technical data: - Two unmonitored digital inputs designed to receive digital start/stop ventilation signals - Three monitored inputs (e.g. fire alarm/fire system Digital inputs reset signals) - Parametrisation with resistors: 5.6–10 kΩ,1.1 kΩ - Sampling voltage: 24 VDC...

  • Page 20: Smoke Detector Card - Additional Card 3

    Operation and Maintenance Manual SR-300 6.3. Smoke detector card – Additional card 3 This card allows the SR-300 RYS smoke extraction control panel to be extended with two more lines of smoke detectors. The card has the following inputs/outputs: •...

  • Page 21: Beacon/Sounder Card - Additional Card 4

    Operation and Maintenance Manual SR-300 6.4. Beacon/sounder card – Additional card 4 This card allows the connection of alarm devices to the SR-300 RYS smoke extraction control panel. The card has the following inputs/outputs: • Two outputs for acoustic or acoustic-optic sounders •...

  • Page 22: Weather Station Card - Additional Card 5

    Operation and Maintenance Manual SR-300 6.5. Weather station card – Additional card 5 This card allows connection of a wind and rain sensor to the smoke ventilation control unit. The card has the following inputs/outputs: • Wind sensor input •...
  • Page 23 Operation and Maintenance Manual SR-300 The card has potentiometers that are used to change the sensitivity of the rain and wind sensors. A sensitivity set to the maximum value means that a small change in the signal from the rain or wind sensor is already transmitted.

  • Page 24: Sr-300 Rys Smoke Extraction Control Panel Configuration

    NOTE: Configuration of the control panel is carried out by using the software dedicated to the SR-300 RYS. A detailed description of the configuration process can be found in the separate Configuration Manual supplied with the control unit. The SR-300 RYS smoke extraction control panel is manufactured in 12 types (Chapter 4.4 of this Manual).
  • Page 25 Grey: devices (actuators, electric strikes, detectors, signalling devices) to be declared in the corresponding fire or residential zone Table 7.1. List of the SR-300 RYS inputs/outputs Can be assigned to the fire/residential zone: 1, 2, 3 or 4 Can be assigned to the fire/residential zone: 1, 2, 3 or 4...
  • Page 26 Operation and Maintenance Manual SR-300 Fire Zone Performance performance Fire in the fire Fire to FAS Ventilation confirmation confirmation 1, zone: 1, 2, 3 or 4 2, 3 or 4 Can be assigned to the fire zone: 1, 2, 3 or 4...
  • Page 27 Operation and Maintenance Manual SR-300 Ventilation start – Confirmation of Fire zone – edge residential start-up 1, 2, 3 or 4 zone: 1, 2, 3 or 4 --------------------------------------- Ventilation stop – residential Confirmation of Fire zone – edge zone: 1, 2, 3...

  • Page 28: Devices Working With The Sr-300 Rys Smoke Extraction Control Panel

    NOTE: Before connecting the various components and devices compatible with the SR-300 RYS unit, refer to the connection diagram and technical data presented in this section. It is imperative to check that the devices to be connected are compatible with the RYS panel.

  • Page 29: Osd23 Smoke Detector

    71 72 73 S.D.1 S.D.2 Detector Detector input input Smoke detectors SR-300 RYS Figure 8.2. OSD23 detector wiring diagram where the inputs are assigned functions: 1– FIRE, 2 – FIRE. Version 1.40 Page 28 of 74 Release date: 17.02.2023 year...

  • Page 30: Osd63 Smoke Detector

    Operation and Maintenance Manual SR-300 NOTE: For the smoke sensors to function correctly, the FIRE function must be assigned in the configurator to the input to which the sensor line is connected. Technical data Table 8.1. OSD23 Smoke detector technical data.
  • Page 31 Smoke detectors SR-300 RYS Figure 8.4. OSD63 sensor wiring diagram where the inputs are assigned functions: 1– FIRE, 2 – FIRE. NOTE: For the smoke detectors to function correctly, the FIRE function must be assigned in the configurator to the input to which the detector line is connected.
  • Page 32 Operation and Maintenance Manual SR-300 Technical data Table 8.2. OSD63 smoke detector technical data. Heat sensor class Monitoring voltage 10 V to 30 V Monitoring current (average) 35 μA Alarm current 20 mA Operating temperature -25 °C to +50 °C Relative humidity 95% at 40 °C...

  • Page 33: Dor40 Smoke Detector

    Operation and Maintenance Manual SR-300 8.1.3. DOR40 smoke detector The DOR-40 optical smoke detector is designed to detect the presence of smoke in the air, in the initial phase of a fire. The detector is designed to operate in enclosed spaces where there is no smoke, dust or condensation of water vapour under normal conditions.
  • Page 34 Smoke Detectors SR-300 RYS Figure 8.7. DOR-40 detector wiring diagram where the inputs are assigned functions: 1– FIRE, 2 – FIRE. NOTE: For the smoke detectors to function correctly, the FIRE function must be assigned in the configurator to the entrance to which the detector line is connected.

  • Page 35: Mcp Manual Call Points

    8.2. MCP Manual call points The SR-300 RYS smoke extraction control panel and the controller's additional card allow for cooperation with manual call points and ventilation buttons. Digital outputs with a 24 V DC power supply and digital inputs enable connection of manual call point lines (MCP) or ventilation button lines.
  • Page 36 Pressing this button sends information to the SR-300 smoke extraction control panel, which in return activates the FIRE signalling – turns off the green light and turns on the red light. At the same time, as the switch button is pressed, the horizontal arrows pointing to the button change colour from black to yellow.
  • Page 37 Operation and Maintenance Manual SR-300 Glass pane Figure 8.11. Clearing the start-up status and releasing the glass lock. Figure 8.12. Returning the system to the ready state. Manual call points PO-61, PO-62, PO-63 have a housing made of orange plastic. The transparent glass pane (the cover is made of high-impact plastic) protects against accidental activation of the initiating switch.
  • Page 38 Operation and Maintenance Manual SR-300 Dimensions 102 x 98 x 46 mm. Weight < 220 g Housing colour Orange Wiring diagram NOTE: Leave the line termination resistors only in the last button on the line. From the other buttons, the resistors should be disconnected by cutting a jumper (DSM wire).
  • Page 39 Operation and Maintenance Manual SR-300 Figure 8.15. Jumpers of the end resistor of the line (DSM wire). WIRING DIAGRAMS Additional card 2– Manual call point card Monitored MCP inputs MCP outputs Unmonitored digital inputs Standby Con- Con- Con- Con- Con-...
  • Page 40 Operation and Maintenance Manual SR-300 Additional card 2– Manual call point card Monitored MCP inputs Unmonitored MCP outputs digital inputs Standby Ventilation Simple Con- Con- Con- Con- Con- Fault diode Fire diode figurable figurable figurable figurable figurable diode diode GND Sig. GND Sig. GND Sig.
  • Page 41 Operation and Maintenance Manual SR-300 Additional card 2– Manual call point card Monitored MCP inputs Digital inputs MCP outputs unmonitored Con- Con- Con- Con- Con- Simple Standby Fault diode Fire diode Ventilation figurable figurable figurable figurable figurable diode diode GND Sig. GND Sig.

  • Page 42: Mcp Rt45, Rt45-Lt And Rt45-St Manual Call Points

    MCP RT45, RT45-LT and RT45-ST manual call points. The manual call points RT45, RT45-LT, RT45-ST are used for manual triggering of the smoke extraction process in the stairwell using the SR-300 control panel and for signalling the operating states of the smoke extraction system.
  • Page 43 Operation and Maintenance Manual SR-300 SMOKE VENT Figure 8.21. RT45-ST manual call point. Technical data Table 8.5. Technical data for the manual call points RT45, RT45-LT and RT45-ST. Variation RT45, RT45-LT and RT45-ST I – used as a button to...
  • Page 44 Operation and Maintenance Manual SR-300 Wiring diagram Wiring diagram providing short-circuit control on the reset line: Additional card 2– Manual call point card Monitored MCP inputs Digital inputs MCP outputs unmonitored Con- Con- Con- Con- Con- Standby Simple Fault diode Fire diode Ventilation...
  • Page 45 Operation and Maintenance Manual SR-300 Additional card 2- Manual call point card Monitored MCP Digital inputs MCP outputs inputs unmonitored Standby Ventilation Simple Con- Con- Con- Con- Con- Fault diode Fire diode diode diode figurable figurable figurable figurable figurable GND Sig. GND Sig.
  • Page 46 Operation and Maintenance Manual SR-300 Additional card 2- Manual call point card Monitored MCP Digital inputs MCP outputs inputs unmonitored Standby Fault diode Fire diode Ventilation Simple Configur Configura Configura Configura Configura diode diode able GND Sig. GND Sig. GND Sig. GND Sig.
  • Page 47 Operation and Maintenance Manual SR-300 Additional card 2- Manual call point card Monitored MCP Digital inputs MCP outputs inputs unmonitored Con- Con- Con- Con- Con- Standby Ventilation Simple Fault diode Fire diode figurable figurable figurable figurable figurable diode diode GND Sig. GND Sig. GND Sig.
  • Page 48 Operation and Maintenance Manual SR-300 Additional card 2- Manual call point card Monitored MCP Digital inputs MCP outputs inputs unmonitored Standby Ventilation Simple Con- Con- Con- Con- Con- Fault diode Fire diode diode diode figurable figurable figurable figurable figurable GND Sig. GND Sig. GND Sig.

  • Page 49: Ap Ventilation Button

    Operation and Maintenance Manual SR-300 In RT45-LT: MCP terminal Function in the configurator Standby diode (no configuration necessary) FIRE GND (no configuration necessary) RESET No control Fire diode (no configuration necessary) Fault diode (no configuration necessary) To line 2 of the next MCP in line...
  • Page 50 Operation and Maintenance Manual SR-300 Wiring diagram Additional card 2- Manual call point card Monitored MCP Digital inputs MCP outputs inputs unmonitored Con- Con- Con- Con- Con- Standby Ventilation Simple Fault diode Fire diode figurable figurable figurable figurable figurable diode diode GND Sig.

  • Page 51: Smoke Vent And Door Actuators

    Open Close Actuator Figure 8.30. Diagram of connection of the SMAY SCD-1 smoke vent actuator and the door actuator to the SR-300 RYS smoke extraction control panel (for the door actuator, the colours of the wires may be different). NOTE: If the direction of the actuator movement is not correct, reverse the polarity of the connected wires (swap the places of the two wires connected).

  • Page 52: Sounders/Beacons

    (see section 5.1 – Motherboard view). Example: The SR-300 4.29 control panel has a total output current of 31 [A] and is equipped with two power supplies, 10 and 21 [A]. In this case, it is possible to connect an actuator with a maximum rated current of 8 [A] to the first actuator output and to connect an actuator of 12 [A] to the second, third or fourth actuator outputs.
  • Page 53 Sounders Additional card 4 – Beacon/Sounder Card Acoustic sounder Figure 8.31. Diagram of an example connection of an acoustic sounder to the SR-300 RYS smoke extraction control panel. Version 1.40 Page 52 of 74 Release date: 17.02.2023 year...
  • Page 54 Slave signal Master signal device device Figure 8.32. Diagram of an example connection of an optical signal to the SR-300 RYS smoke extraction control panel. 4.8 4.7 4.6 4.5 4.4 4.3 4.2 4.1 GND +24 GND +24 GND +24...

  • Page 55: Electric Door Strike

    Electric door strike output Electric door SR-300 RYS strike Figure 8.34 Diagram of connection of the electric door strike to the SR-300 RYS smoke extraction control panel. Technical data Table 8.8. Electric door strike technical data. Supply voltage 24 VDC...

  • Page 56: Devices Supporting The Sr-300 Rys Smoke Extraction Control Panel

    /COM COM/ Input Output Two-way rotary actuator Figure 8.35. Connection diagram for the A-SO rotary actuator adapter to the SR-300 RYS smoke extraction control panel and a dual-position rotary actuator. Version 1.40 Page 55 of 74 Release date: 17.02.2023 year...

  • Page 57: A-Ed Electric Door Strike Adapter

    Operation and Maintenance Manual SR-300 Figure 8.36. Actual view of the A-SO adapter. 9.2. A-ED electric door strike adapter The electric door strike adapter (relay module) is designed to power and open standard and reversible electric door strikes (see section 8.5) by means of the smoke extraction control panel and the access control system.
  • Page 58 24 VDC Electric door Access control strike output Electric door strike input reverse output SR-300 RYS 24 VDC 24 VDC Electric door strike Access control Figure 8.37. Diagram of the connection of the A-ED Door strike adapter to the RYS smoke extraction control panel and access control system, as well as the connection of a standard door strike to the A-ED adapter.

  • Page 59: A-Sp Weather Station Adapter

    Operation and Maintenance Manual SR-300 9.3. A-SP weather station adapter The weather station adapter is an additional card 5 (see section 6.5), extended with a larger number of outputs and placed not in the RYS control panel but in separate housing. The...

  • Page 60: Resistors Simulating Devices Cooperating With The Sr-300 Rys Smoke Extraction Control Panel

    Operation and Maintenance Manual SR-300 Figure 8.40. Actual view of the A-SP adapter. 9.4. Resistors simulating devices cooperating with the SR-300 RYS smoke extraction control panel. Input/output type Standby Activation Monitored digital input 9.4 kΩ 4.7 kΩ MCP input 10 kΩ...

  • Page 61: Sr-300 Rys Smoke Extraction Control Panel Housing

    Upon request from the customer, it is possible to manufacture a control panel housing without signalling diodes on the front of the housing. This is possible for the following SR-300 RYS smoke vextraction control panel types: SR-300 1.4, SR-300 1.8, SR-300 1.8P, SR-300 2.8 and SR-300 4.8.
  • Page 62 Operation and Maintenance Manual SR-300 The view of the housing for the maximum type of the SR-300 RYS smoke extraction control panel is shown in Figure 9.1. Fig. 10.1 Housing 410 x 400 x 140 [mm]; 480 x 480 x 160 [mm] (left) and housing 550 x 480 x 200 (right).
  • Page 63 Operation and Maintenance Manual SR-300 Wiring duct 25 x 80 Figure 9.1. SR-300 RYŚ IP40 smoke extraction control panel housing with dimensions. Version 1.40 Page 62 of 74 Release date: 17.02.2023 year...

  • Page 64: Batteries

    Upon request from the customer, it is possible to manufacture control panel housing without signalling on the front of the housing. This is possible for the following SR-300 RYS smoke ventilation control unit types: SR-300 1.4, SR-300 1.8, SR-300 1.8P, SR-300 2.8 and SR-300 4.8.
  • Page 65 Operation and Maintenance Manual SR-300 Mounting holes Ø8 Figure 9.2. Mounting hole spacing for the 410 x 400 x 140 housing. Mounting holes Ø8 Figure 9.3. Mounting hole spacing for the 480 x 480 x 160 housing. Version 1.40 Page 64 of 74...

  • Page 66: Troubleshooting

    Figure 9.4. Mounting hole spacing for the 550 x 480 x 200 housing. Troubleshooting The SR-300 RYS smoke extraction control panel is equipped with a two-segment digital display. Depending on the operating status, the control panel indicates it by displaying the appropriate code.
  • Page 67 Operation and Maintenance Manual SR-300 X3 actuator line interruption DIG IN 4 interrupted X4 actuator line interruption DIG IN 4 input short circuit X4 actuator line interruption DIG IN 5 input interrupted FX1 fuse blown DIG IN 5 short circuit...

  • Page 68: Installation And Commissioning Instructions For The Sr-300 Rys Smoke Extraction Control Panel

    Prior to installation, it is necessary to visually check the unit for mechanical damage. 4) Housing The SR-300 RYS smoke extraction control panel with its additional cards is housed in an enclosed housing. Access to the inside of the unit is via a door with the option of a screw or key lock.

  • Page 69: Power Supply Connection

    12.1. Power supply connection The SR-300 RYS control panel is powered by direct connection to the 24 V DC power supply. The placing of the power supply cables should be made from the top of the panel through a suitable cable gland.

  • Page 70: Instructions For On-Site Post-Assembly And Installation Testing

    Instructions for On-Site Post-Assembly and Installation Testing Testing of the SR-300 RYS smoke extraction control panel must be carried out following the proper installation, commissioning and configuration of the control panel on site, in compliance with these installation and operating instructions.

  • Page 71: Checking The Operating Status Signals

    SR-300 RYS smoke extraction control panel. The operating algorithms of the panel are to be checked for the reception of input signals, output monitoring, interlocking and reset of specific signals.

  • Page 72: Storage

    III. The SR-300 RYS smoke extraction control panel must be tested at least once a year. During the annual inspection, the following shall be performed: Checking the correct operation of the control unit and additional cards...
  • Page 73 GUARANTOR. The claim shall be submitted by sending a completed “Claim Application Card” form (available from www.smay.pl) to the GUARANTOR’s address. It is acceptable to send the application form to the email address info@smay.pl...
  • Page 74 Operation and Maintenance Manual SR-300 item 1229 as amended) and those appropriately recorded in the inspection and maintenance book and/or the facility book. • The parts of the system/product have been correctly installed, used, operated and maintained, according to the GUARANTOR’s technical documentation, including the Operation and Maintenance Manual (if applicable).
  • Page 75 In the event of the warranty holder’s unjustified claims, the GUARANTOR shall charge for diagnostics (device check tests) and logistics (transport costs), in accordance with the “Service Work Charges” available from www.smay.pl. Article 11 The GUARANTOR’s decisions concerning any reported defects shall be definitive.
