17-inch (16.0" vis) color monitor
Hide thumbs Also See for 107S:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

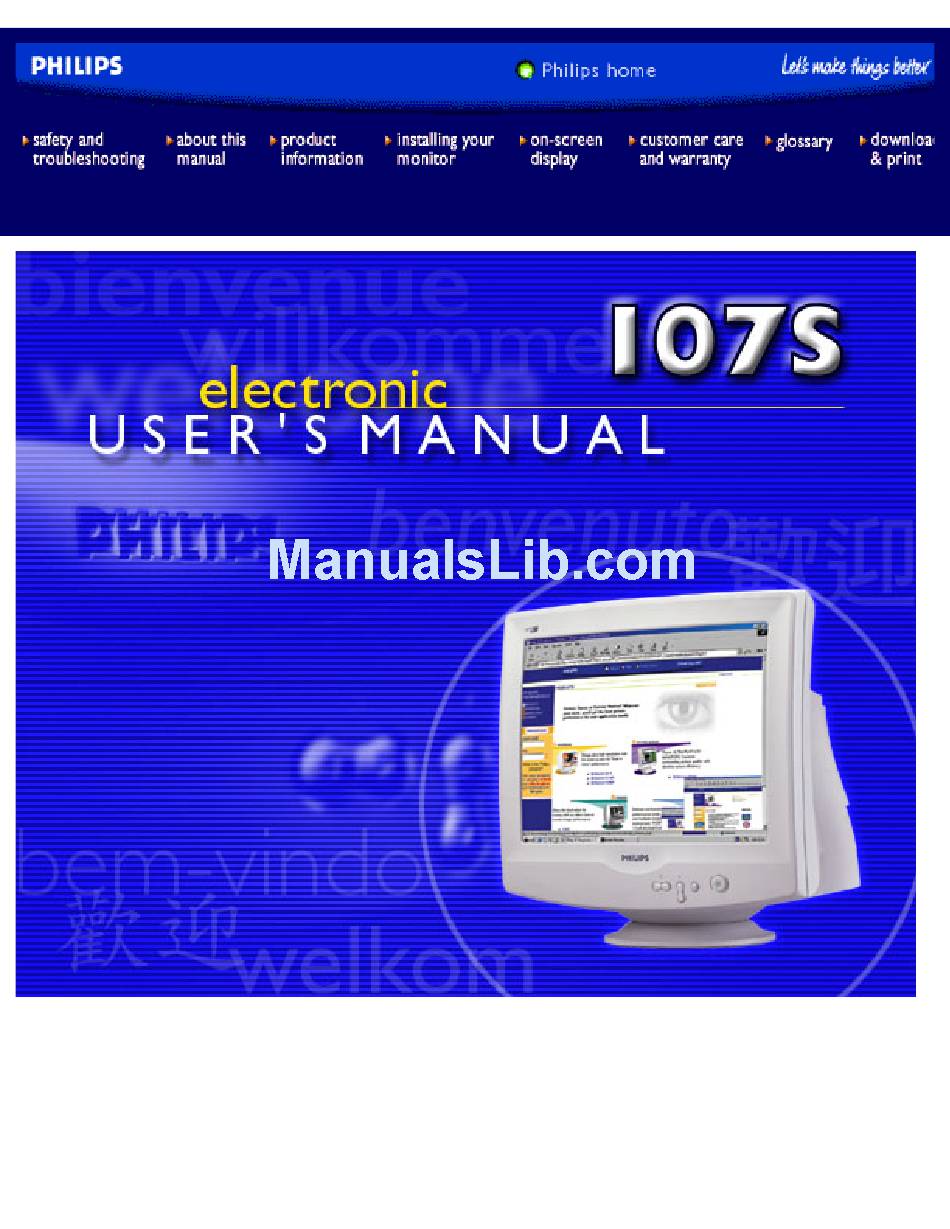

Philips 107S Electronic User's Manual
file:///C|/rita wu/gs3LF/ENGLISH/107S/Index.htm [10/12/2000 1:41:25 AM]

Advertisement

Table of Contents
loading

Related Manuals for Philips 107S

Summary of Contents for Philips 107S

  • Page 1 Philips 107S Electronic User's Manual file:///C|/rita wu/gs3LF/ENGLISH/107S/Index.htm [10/12/2000 1:41:25 AM]...

  • Page 2: Safety And Troubleshooting Information

    Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them and prevent proper cooling of the monitor's electronic devices. To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or excessive moisture.
  • Page 3 Other Documents You May Need About This Guide This electronic user's guide is intended for anyone who uses the Philips 107S Color Monitor. It describes the monitor's features, setup, operation and all other information, which is the same exact information described in our printed version.
  • Page 4 ©1999 Koninklijke Philips Electronics N.V. All rights reserved. Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V. file:///C|/rita wu/gs3LF/ENGLISH/107S/about/about.htm (2 of 2) [10/12/2000 1:45:12 AM]...

  • Page 5: Product Information

    Product Features 107S20 17-inch (16.0" VIS) color monitor with excellent front of screen performance for use with MACs and PCs Autoscan covers horizontal frequencies up to 71 kHz offering a maximum resolution of 1280 x 1024 with flicker free display of 1024 x 768 at up to 89 Hz Flat square High Contrast CRT with high-resolution 0.27 mm dot pitch (0.23 hdp).
  • Page 6 It is recommended that you install this software only on a Philips monitor designed to use it. These monitors can be identified by the LightFrame™ logo on the front of the monitor.
  • Page 7 An active window must also be 100% on the monitor 's viewing area. If part of a highlighted window moves off the monitor 's viewing area, LightFrame™ automatically goes into the Suspended mode. If part of a window is off the viewing area, you will not be able to use LightFrame™...
  • Page 8 If the monitor is detached from the computer while a highlighted window or area is displayed and then another monitor is attached, the system will have to be rebooted so that Philips ' LightFrame™ can detect the monitor 's LightFrame™...
  • Page 9 • at 9300 K degrees • at 6500 K degrees * These information are subject to change without notice. file:///C|/rita wu/gs3LF/ENGLISH/107S/product/product.htm (5 of 7) [10/12/2000 1:45:12 AM] RETURN TO TOP OF THE PAGE 17 inch / 41 cm ; 90° deflection angle 0.27 mm...
  • Page 10 Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up".
  • Page 11 Blue video ground Views Follow the links to see various views of the monitor and its components. Front View Rear View file:///C|/rita wu/gs3LF/ENGLISH/107S/product/product.htm (7 of 7) [10/12/2000 1:45:12 AM] Assignment No pin Logic ground Identical output - connected to pin 10 Serial data line (SDA) H.

  • Page 12: Installing Your Monitor

    Contrast hotkey. When the UP arrow is pressed, the adjustment controls for the CONTRAST will show up. UP and DOWN buttons are used when adjusting the OSD of your monitor file:///C|/rita wu/gs3LF/ENGLISH/107S/install/install.htm (1 of 3) [10/12/2000 1:45:14 AM] • PCUH411 USB Hub (option)

  • Page 13: Rear View

    BRIGHTNESS will show up. LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor. Rear View file:///C|/rita wu/gs3LF/ENGLISH/107S/install/install.htm (2 of 3) [10/12/2000 1:45:14 AM] RETURN TO TOP OF THE PAGE...
  • Page 14 Installing your Monitor Power in - attach power cable here. Video In - this is a cable which is already attached to your monitor. Connect the other end of the cable to your PC. file:///C|/rita wu/gs3LF/ENGLISH/107S/install/install.htm (3 of 3) [10/12/2000 1:45:14 AM]...

  • Page 15: On-Screen Display

    Description of the On Screen Display What is the On-Screen Display? This is a feature in all Philips monitors which allows an end-user to adjust screen performance of monitors directly though an on-screen instruction window. The user interface provides user-friendliness and ease-of-use when operating the monitor.
  • Page 16 Below is an overall view of the structure of the On-Screen Display. You can use this as reference when you want to later on work your way around the different adjustments. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osddesc.htm (2 of 4) [10/12/2000 1:45:15 AM] RETURN TO TOP OF THE PAGE...
  • Page 17 On-Screen Display file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osddesc.htm (3 of 4) [10/12/2000 1:45:15 AM]...
  • Page 18 On-Screen Display RETURN TO TOP OF THE PAGE file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osddesc.htm (4 of 4) [10/12/2000 1:45:15 AM]...

  • Page 19: Customer Care And Warranty

    Customer Care and Warranty Customer Care & Warranty PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED: WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece • Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden • Switzerland •...
  • Page 20 L M N O P Autoscan A microprocessor-based feature of Philips Brilliance monitors is able to detect automatically horizontal and vertical frequencies of input signals with those of the installed video card. An autoscan monitor can thus operate with a wide range of video cards. MultiSync, a registered trademark of NEC, provides a similar function.

  • Page 21: Color Temperature

    A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black body radiating with the same dominant frequency as the source. Most Philips monitors offer the possibility of setting the color temperature to any desired value. Contrast The ratio between the brightness of the brightest and darkest parts of a picture.
  • Page 22 TV and monitor picture tube. CustoMax Philips proprietary monitor control software that allows users to control parameters (e.g., Size, Color, Geometry) using software running in Windows. CustoMax is compatible with existing VGA cards. See CrystalClear FAQ and USB Bay FAQ.

  • Page 23: Digital Control

    Plug & Play approach introduced into the PC market to increase user friendliness. The three levels developed for Plug & play are: (1) DDC1, monitor send data to the PC; (2) DDC2B, PC can request information from monitor; and (3) DDC2Bi which is a two-way communication - monitor can be addressed and PC or graphics board can give commands to monitor.
  • Page 24 MPR-II defines maximum permitted electrostatic, magnetic and electric field levels measured at a distance of 50 cm from the center of the monitor (see table). file:///C|/rita wu/gs3LF/ENGLISH/107S/glossary/glossary.htm (5 of 18) [10/12/2000 1:45:17 AM] RETURN TO TOP OF THE PAGE...
  • Page 25 The problem can, however, be eliminated by increasing the refresh rate (number of frames/second) of the monitor to a value above around 70 Hz. Sensitivity to flicker appears to diminish with increasing age.
  • Page 26 50 Hz means a picture (or frame) frequency of 50 Hz. At any given resolution, non-interlaced modes are preferable to interlaced modes; however, generation of non-interlaced modes is more expensive. file:///C|/rita wu/gs3LF/ENGLISH/107S/glossary/glossary.htm (7 of 18) [10/12/2000 1:45:17 AM] RETURN TO TOP OF THE PAGE...

  • Page 27: Line Frequency

    Alternating fields generated by the deflection yoke. These are subject to increasing attention, notably by governing authorities, the trade and the press. Although there is no scientific evidence that monitor emissions are harmful, much effort has gone into reducing emissions on the principle of better safe than sorry.
  • Page 28 A fringe pattern arising from the interference between two superimposed line patterns. In a monitor it comes from the interference between the shadow mask pattern and the video information (video moiré), and between the shadow mask pattern and the horizontal line pattern (scan moiré). It shows itself as wavy patterns on the screen and becomes more noticeable as monitor resolution increases.
  • Page 29 Abbreviation for picture element, the smallest element of the picture that can be displayed on the screen. The smaller the pixel size, the better the resolution of the monitor. Pixel size is determined by the size of the electron spot on the screen and not necessarily by the phosphor dot pitch (the size of the triad). Thus, a monitor with a large electron spot covering several triads can exhibit poor resolution even though its dot pitch is small.

  • Page 30: Refresh Rate

    Rotation function The feature that allows users to adjust the whole screen rotating to be horizontal. Because of the magnetic field of earth, the screen of monitor will be tilt when the screen faces toward the different direction. Screen coatings file:///C|/rita wu/gs3LF/ENGLISH/107S/glossary/glossary.htm (11 of 18) [10/12/2000 1:45:17 AM]...
  • Page 31 Glossary Anti-Static coatings Due to bombardment by beam electrons, monitor screens become electrically charged when in use. Electrically charged screens surfaces can attract dust particles. An Anti-Static coating is a conductive coating deposited on the screen (or on a glass panel immediately in front of the screen) that conducts away the charge and prevents screen dust build-up.

  • Page 32: Self-Test Function

    Self-test function A monitor equipped with hardware or software to automatically detect cable connection status. Shape Deviation of a reproduced picture from its intended shape. The following types of distortion are most common: file:///C|/rita wu/gs3LF/ENGLISH/107S/glossary/glossary.htm (13 of 18) [10/12/2000 1:45:18 AM]...

  • Page 33: Tilt Function

    A properly functioning color monitor requires five kinds of signals: horizontal sync pulse, vertical sync pulse, red color signal, green color signal and blue color signal. Signals from a PC are transmitted to a monitor using one of three methods: 1.
  • Page 34 A TTL-driven monitor can thus display a maximum of 64 colors. Video standards such as MDA, CGA and EGA are based on TTL level.
  • Page 35 It also has hardware support for reset and suspend/resume signaling. The controller provides the interface registers to allow communication to/from the host. Hub specific status and control commands permit the host to configure a hub and to monitor and control its ports.
  • Page 36 A card equipped with a character or graphic generator and video memory, which maps to the screen. A microprocessor scans video memory and translates bit information from the computer into displayable video signals for the monitor. These cards comply with various standards that determine the nature and quality of the display.
  • Page 37 The real screen dimensions that users can see measured diagonally. The VIS of a monitor is always less than the so called screen size of a monitor. For example, the VIS of a 17-inch monitor is only about 16 inches. It depends on the useful screen size of CRT and the opening of a monitor's front cabinet.

  • Page 38: Download And Print

    Printing instructions: To print the manual: 1. With the manual file open, follow your printer's instructions and print the pages you need. 105B.pdf 105P.pdf 107B.pdf 107P.pdf 107S.pdf 107T.pdf 109B.pdf 109S.pdf file:///C|/rita wu/gs3LF/ENGLISH/download/download.htm [10/12/2000 1:45:18 AM] Mac. English language manual Adobe®...

  • Page 39: Troubleshooting

    No color or intermittent color Color appears blotchy Missing one or more colors file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/saf_troub.htm (1 of 2) [10/12/2000 1:45:39 AM] • Troubleshooting • Regulatory Information Check these items Make sure the Power cable is plugged into the power outlet and back of the monitor.
  • Page 40 Problem with On Screen Display For further assistance, refer to the distributor. file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/saf_troub.htm (2 of 2) [10/12/2000 1:45:39 AM] Adjust the Brightness and Contrast controls. Check your video card and it's owner's manual instructions for it may be a non-VESA-DDC Standard card.

  • Page 41: Regulatory Information

    Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy. What does labeling involve? file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/regs/regulat.htm (1 of 11) [10/12/2000 1:45:41 AM] • TCO Environmental Requirements •...

  • Page 42: Environmental Requirements

    The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available. file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/regs/regulat.htm (2 of 11) [10/12/2000 1:45:41 AM] RETURN TO TOP OF THE PAGE...
  • Page 43 * Bio-accumulative is defined as substances which accumulate within living organisms. ** Lead, Cadmium and Mercury are heavy metals which are bio-accumulative. Energy Star Declaration file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/regs/regulat.htm (3 of 11) [10/12/2000 1:45:41 AM] RETURN TO TOP OF THE PAGE PHILIPS...

  • Page 44: Federal Communications Commission (Fcc) Notice (U.s. Only)

    NERGY NERGY We recommend you switch off the monitor when it is not in use for quite a long time. Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 45: Commission Federale De La Communication (Fcc Declaration)

    Regulatory Information Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

  • Page 46: Vcci Notice (Japan Only)

    Interference. Install and use the equipment according to the instruction manual. Class B ITE MOC Notice (South Korea Only) Class B Device file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/regs/regulat.htm (6 of 11) [10/12/2000 1:45:41 AM] RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE...

  • Page 47: Polish Center For Testing And Certification Notice

    Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source.
  • Page 48 FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/regs/regulat.htm (8 of 11) [10/12/2000 1:45:41 AM] RETURN TO TOP OF THE PAGE...
  • Page 49 Vorschriften über die Bauart von Störstrahlern nach Anlage III ¤ 5 Abs. 4 der Röntgenverordnung erfüllt sind. Damit Ihr Monitor immer den in der Zulassung geforderten Werten entspricht, ist darauf zu achten, daß Reparaturen nur durch Fachpersonal durchgeführt werden.
  • Page 50 Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer.
  • Page 51 Regulatory Information file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/regs/regulat.htm (11 of 11) [10/12/2000 1:45:41 AM] have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A. Note: The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.

  • Page 52: Other Related Information

    Use a Cord Set rated minimum 5 A, 250 V ( for units set at 230V ) or 10A, 125V (for units set at 115V). The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed. file:///C|/rita wu/gs3LF/ENGLISH/107S/safety/saf_other.htm [10/12/2000 1:45:42 AM] • Troubleshooting •...
  • Page 53 • Microphone in/out • Includes • Dimension • Power consumption Description of the Controls file:///C|/rita wu/gs3LF/ENGLISH/107S/install/mm_pede/mm_inst.htm (1 of 4) [10/12/2000 1:45:57 AM] • Description of the Controls 2 x 1.5W RMS / 36W PMPO 3.5 mm jack 3.5 mm jack Audio cable and AC adapter 9.4"...
  • Page 54 6G3B11 Multimedia Base (option) Installing your Multimedia Pedestal file:///C|/rita wu/gs3LF/ENGLISH/107S/install/mm_pede/mm_inst.htm (2 of 4) [10/12/2000 1:45:57 AM] RETURN TO TOP OF THE PAGE 1. To INSTALL Slide the pedestal, aligning with the holes on the side. Then click the back hook into the corresponding hole on the bottom plate of your monitor.

  • Page 55: Power Adapter Installation

    DC input Note: Please keep least 50 cm ) to avoid cansing unstable monitor picture. file:///C|/rita wu/gs3LF/ENGLISH/107S/install/mm_pede/mm_inst.htm (3 of 4) [10/12/2000 1:45:57 AM] 2. To UN-INSTALL Lift the back hook from the hole on the bottom plate of your monitor.
  • Page 56 6G3B11 Multimedia Base (option) RETURN TO TOP OF THE PAGE file:///C|/rita wu/gs3LF/ENGLISH/107S/install/mm_pede/mm_inst.htm (4 of 4) [10/12/2000 1:45:57 AM]...
  • Page 57 PCUH411 USB Hub (Option) Front View • Rear View • Installing your USB Hub Installing your USB Hub file:///C|/rita wu/gs3LF/ENGLISH/107S/install/usbhub/usb_inst.htm (1 of 2) [10/12/2000 1:45:58 AM] Installing on a conventional base. Take out the USB hub from the box. Take off the USB hub cover.
  • Page 58 USB Hub (Optional Feature) file:///C|/rita wu/gs3LF/ENGLISH/107S/install/usbhub/usb_inst.htm (2 of 2) [10/12/2000 1:45:58 AM] RETURN TO TOP OF THE PAGE hub to the back of the Multimedia Pedestal. Attach the USB hub by sliding-in to the Multimedia base.
  • Page 59 CONTRAST To adjust your screen's contrast, follow the steps bellow. Contrast is the difference between the light and dark areas on the screen. A 100% contrast is recommended. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (1 of 25) [10/12/2000 1:46:11 AM] • The OSD Tree •...
  • Page 60 The MAIN CONTROLS window appears. LANGUAGE should be highlighted. 2) Press the button again. The LANGUAGE window appears. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (2 of 25) [10/12/2000 1:46:11 AM] RETURN TO TOP OF THE PAGE button and after three...
  • Page 61 . . . to continue to INPUT SIGNAL SELECTION, press the Smart SIGNAL SELECTION is highlighted. Next, follow steps 3 - 5 under INPUT SIGNAL Help SELECTION..to exit completely, press the file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (3 of 25) [10/12/2000 1:46:11 AM] button until INPUT button...

  • Page 62: Input Signal Selection

    INPUT B or INPUT A. 5) Press the button to confirm your selection and return to the MAIN CONTROLS window. CLOSE file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (4 of 25) [10/12/2000 1:46:11 AM] RETURN TO TOP OF THE PAGE (Not available in all models)
  • Page 63 The MAIN CONTROLS window appears. 2) Press the button until ZOOM is highlighted. 3) Press the button. The ZOOM window appears. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (5 of 25) [10/12/2000 1:46:11 AM] button until ZOOM is highlighted. Next, follow button RETURN TO TOP OF THE PAGE...
  • Page 64 1) Press the button on the monitor. The MAIN CONTROLS window appears. 2) Press the button until ADJUST HORIZONTAL is highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (6 of 25) [10/12/2000 1:46:11 AM] button RETURN TO TOP OF THE PAGE button until ADJUST...
  • Page 65 5) When the position is adjusted, press the to highlight ADJUST SIZE. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (7 of 25) [10/12/2000 1:46:11 AM] button to return to MAIN CONTROLS window, or press the...
  • Page 66 1) Press the button on the monitor. The MAIN CONTROLS window appears. 2) Press the button until ADJUST VERTICAL is highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (8 of 25) [10/12/2000 1:46:11 AM] button. button to return to MAIN CONTROLS window. CLOSE MAIN button...
  • Page 67 4) Press the button to move the image up or down. 5) When the position is adjusted, press the to highlight ADJUST SIZE. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (9 of 25) [10/12/2000 1:46:11 AM] button to return to MAIN CONTROLS window, or press the...
  • Page 68 1) Press the button on the monitor. The MAIN CONTROLS window appears. 2) Press the button until ADJUST SHAPE is highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (10 of 25) [10/12/2000 1:46:11 AM] button. button to return to MAIN CONTROLS window. CLOSE MAIN button...
  • Page 69 107S The OSD Controls 3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be highlighted. 4) Press the button. The SIDE CURVE window appears. PINCUSHION should be highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (11 of 25) [10/12/2000 1:46:11 AM]...
  • Page 70 BACK TO MAIN WINDOWS will be highlighted. 9) Press the button to return to the MAIN CONTROLS window, or press the SIDE ANGLES is highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (12 of 25) [10/12/2000 1:46:11 AM] button. button to highlight BALANCED or press the button.
  • Page 71 The MAIN CONTROLS window appears. 2) Press the button until ADJUST SHAPE is highlighted. 3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (13 of 25) [10/12/2000 1:46:11 AM] button twice.
  • Page 72 The SIDE ANGLES window appears. TRAPEZOID should be highlighted. 6) To adjust the trapezoid, press the 7) When the trapezoid is adjusted, press the button to return to the ADJUST SHAPE window. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (14 of 25) [10/12/2000 1:46:11 AM] button. button to highlight PARALLELOGRAM or press the...
  • Page 73 1) Press the button on the monitor. The MAIN CONTROLS window appears. 2) Press the button until ADJUST SHAPE is highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (15 of 25) [10/12/2000 1:46:11 AM] button. button to return to the ADJUST SHAPE window. button twice.
  • Page 74 The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be highlighted. 4) Press the arrow until ROTATE IMAGE is highlighted. 5) Press the button. The ROTATE IMAGE window appears. ROTATE should be highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (16 of 25) [10/12/2000 1:46:11 AM]...
  • Page 75 ...to exit completely, press the ADJUST COLOR Your monitor has two preset options you can choose from. The first option is for GENERAL USE, which is fine for most applications. The second option is for GAMES, which is for playing computer games. When you select one of these options, the monitor automatically adjusts itself to that option.
  • Page 76 9300K for GENERAL USE, 6500K for GAMES, or USER PRESET. 5) Once you have highlighted GENERAL USE or GAMES, press the and return to the MAIN CONTROLS window. CLOSE MAIN CONTROLS will be highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (18 of 25) [10/12/2000 1:46:11 AM] button to confirm you selection...
  • Page 77 TO FACTORY SETTINGS..to exit completely, press the RESET TO FACTORY SETTINGS file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (19 of 25) [10/12/2000 1:46:11 AM] button to highlight RED. Next, press the LEFT button to highlight GREEN. Next, press the button to highlight BLUE. Next, press the button to confirm your adjustments and return to button.
  • Page 78 YES or NO. NO is the default. YES returns all settings to their original factory adjustments. 5) Press the button to confirm your selection and return to the MAIN CONTROLS window. CLOSE MAIN CONTROLS will be highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (20 of 25) [10/12/2000 1:46:11 AM]...
  • Page 79 2) Press the button until EXTRA CONTROLS is highlighted. 3) Press the button. The EXTRA CONTROLS window appears. DEGAUSS will be highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (21 of 25) [10/12/2000 1:46:11 AM] button. RETURN TO TOP OF THE PAGE button until EXTRA...
  • Page 80 The MAIN CONTROLS window appears. 2) Press the DOWN CURSOR button until EXTRA CONTROLS is highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (22 of 25) [10/12/2000 1:46:11 AM] button. Your screen will be degaussed, then the MAIN button until EXTRA CONTROLS is...
  • Page 81 The EXTRA CONTROLS window appears. DEGAUSS will be highlighted. 4) Press the button until ADJUST MOIRE is highlighted. 5) Press the button. The ADJUST MOIRE window appears. HORIZONTAL will be highlighted. file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (23 of 25) [10/12/2000 1:46:11 AM]...
  • Page 82 After returning to MAIN CONTROLS . . . Smart . . . to exit completely, press the Help file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (24 of 25) [10/12/2000 1:46:11 AM] button. button to highlight VERTICAL. button. button to return to the EXTRA CONTROLS window.
  • Page 83 107S The OSD Controls CLOSE MAIN CONTROLS RETURN TO TOP OF THE PAGE file:///C|/rita wu/gs3LF/ENGLISH/107S/osd/osd_cont.htm (25 of 25) [10/12/2000 1:46:11 AM]...
  • Page 84 Just a phone call away Philips’ customer help desks are located worldwide. You can contact Philips Monday - Friday from 08.00 - 20.00 hrs Central European Time (CET) and on Saturdays and Sundays from 10.00 to 18.00 hrs CET by using one of the toll-free numbers.

  • Page 85: Your International Guarantee

    12 months from date of purchase. This international Philips guarantee complements the existing national guarantee obligations to you of dealers and Philips in the country of purchase and does not affect your statutory rights as a customer.

  • Page 86: Limited Warranty

    Philips Consumer Electronics. reception problems caused by signal conditions or cable or antenna systems outside the unit.
  • Page 87 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 88 Just a phone call away Philips’ customer help desks are located worldwide. You can contact Philips Monday - Friday from 08.00 - 20.00 hrs Central European Time (CET) and on Saturdays and Sundays from 10.00 to 18.00 hrs CET by using one of the toll-free numbers.
