Installation Manual
SIBER® DRY BALL SIPHON
BALL SIPHON FOR SIBER DF GROUPS
Allows the evacuation of condensate from the ventilation unit,
avoiding the entry of bad odors into the ventilation system
thanks to its ball non-return mechanism.

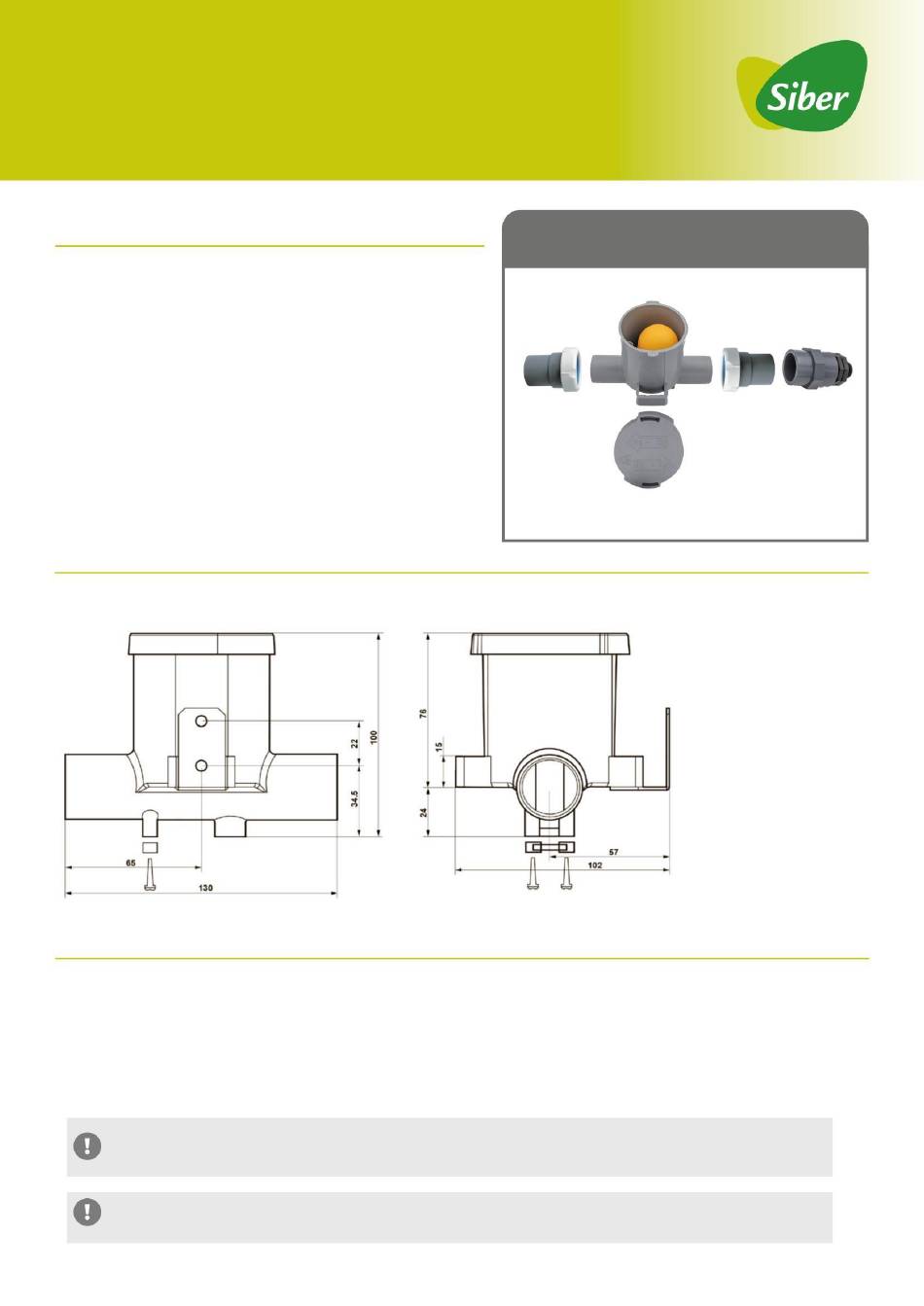

DIMENSIONS
• Measurements expressed in millimeters (mm)
FACILITY
• The 1/2" male threaded condensate drain connection union must be screwed by the installer into the unit's condensate
intake.
• The condensate discharge duct can be mounted below. The installer can adjust the condensate drain to the desired position.
The evacuation must end at the water level of the siphon.
• Use a 32mm diameter condensation drainpipe.
Important! Always use a removable condensate evacuation connection between the siphon and the group for
proper maintenance
In particular, in the case of ceiling mounting, make sure that the siphon is below the level of the group.
Ref: DFSYV3
