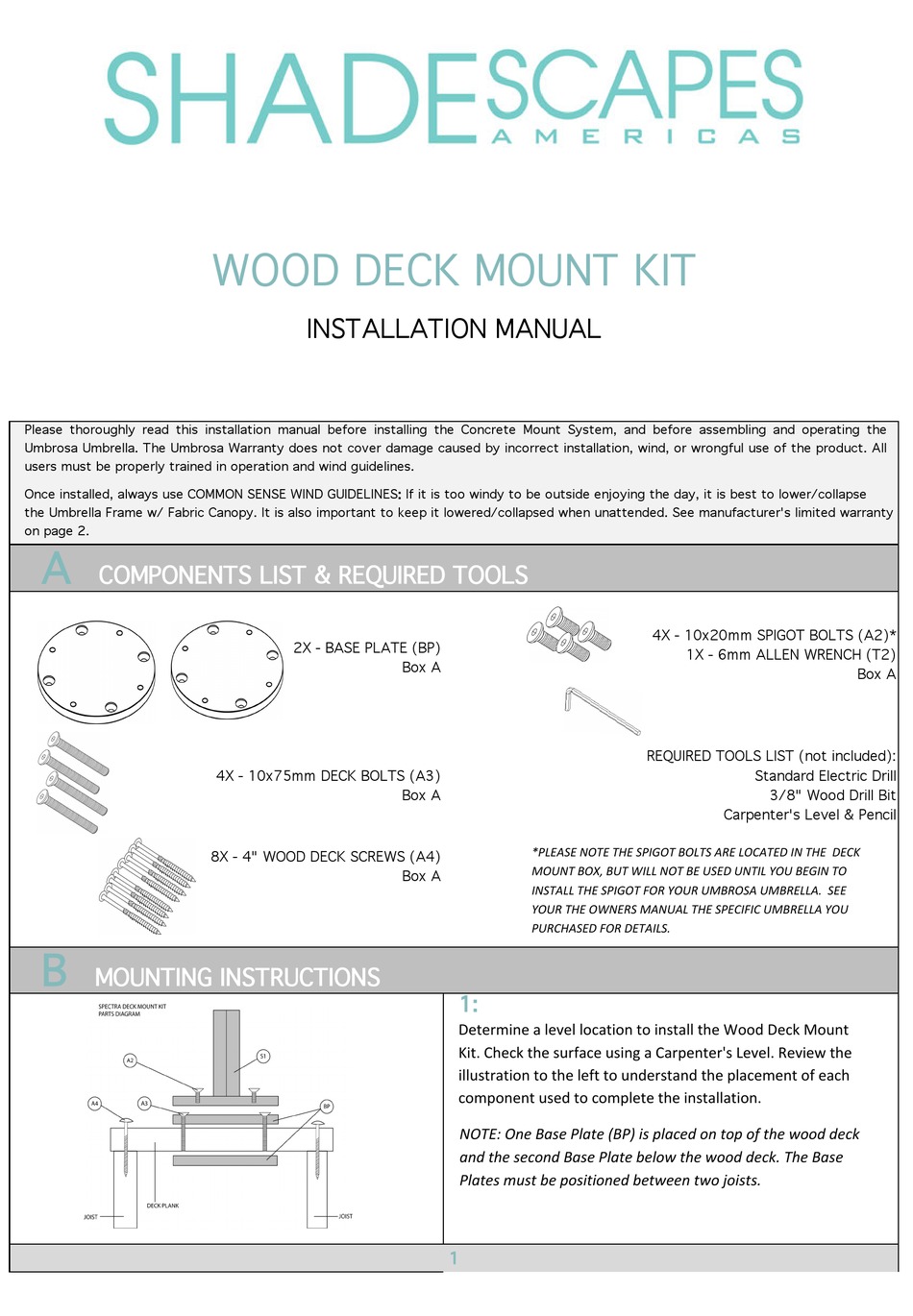

SHADE SCAPES AMERICAS Umbrosa Installation Manual

Please thoroughly read this installation manual before installing the Concrete Mount System, and before assembling and operating the
Umbrosa Umbrella. The Umbrosa Warranty does not cover damage caused by incorrect installation, wind, or wrongful use of the product. All
users must be properly trained in operation and wind guidelines.
Once installed, always use COMMON SENSE WIND GUIDELINES: If it is too windy to be outside enjoying the day, it is best to lower/collapse
the Umbrella Frame w/ Fabric Canopy. It is also important to keep it lowered/collapsed when unattended. See manufacturer's limited warranty
on page 2.
A
COMPONENTS LIST & REQUIRED TOOLS
B

MOUNTING INSTRUCTIONS

WOOD DECK MOUNT KIT
INSTALLATION MANUAL
2X - BASE PLATE (BP)
4X - 10x 5mm DECK BOLTS (A3)
8X - 4" WOOD DECK SCREWS (A4)
Box A
Box A
*PLEASE NOTE THE SPIGOT BOLTS ARE LOCATED IN THE DEC
O NT BO B T WILL NOT BE SED NTIL O BEGIN TO
Box A
INSTALL THE SPIGOT FOR YOUR UMBROSA UMBRELLA SEE
O R THE OWNERS
PURCHASED OR DETAILS
1:
Determine a level location to install the Wood Deck Mount
Kit. Check the surface using a Carpenter's Level. Review the
illustration to the left to understand the placement of each
component used to complete the installation.
OTE One Base Plate BP is placed on top o the ood deck
and the second Base Plate belo the ood deck The Base
Plates must be positioned bet een t o oists
1
4X - 10x20mm SPIGOT BOLTS (A2)*
1X - 6mm ALLEN WRENCH (T2)
REQUIRED TOOLS LIST (not included):
Standard Electric Drill
3/8" Wood Drill Bit
Carpenter's Level & Pencil
AN AL THE SPECIFIC UMBRELLA YOU
Box A
