TELECO AUTOMATION TVLink Series Manual

Ethernet interface for transmitters
Hide thumbs

Advertisement

Quick Links

Download this manual
www.garagedoorsonline.co.uk
Product code:

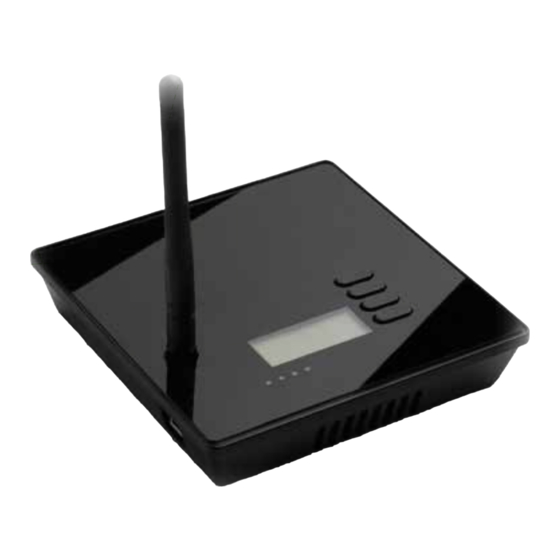

ETH000A02 Ethernet interface for transmitters of the TVLink series
MY-HAND, the whole house under your control with one single instrument.
TRANSMITTER
Universal Wireless Interface
Code Number:
ETH000A02
TELECO AUTOMATION SRL -
++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com
TELEPHONE:
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
ETHERNET INTERFACE
Series
TVLink
01926 463888
Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
My-Hand is a device that allow
to control the whole house
by the standard browser
of your Smartphone,
Model number
T579.02_EN
1 1
Tablet or PC.
My-Hand works
without any App.
HOME AUTOMATION
Date
29/10/2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVLink Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TELECO AUTOMATION TVLink Series

  • Page 1 Via dell’Artigianato, 16 - 31014 Colle Umberto (TV) ITALY ++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com TELEPHONE: This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights ETHERNET INTERFACE Product code: ETH000A02 Ethernet interface for transmitters of the TVLink series MY-HAND, the whole house under your control with one single instrument.

  • Page 2: Timer Function

    www.garagedoorsonline.co.uk 01926 463888 What My-Hand can do... - ON/OFF touching the push-button - DIMMING touching and keeping the finger on the screen (long press) - OPEN/STOP/CLOSE touching the push-button - TIMER FUNCTION ON/OFF or OPEN/STOP/CLOSE setting weekly programs. Model number Date Code Number: Series...
  • Page 3 Via dell’Artigianato, 16 - 31014 Colle Umberto (TV) ITALY ++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com TELEPHONE: This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights ETHERNET INTERFACE Product code: ETH000A02 Ethernet interface for transmitters of the TVLink series My-Hand is a device that allow to control the whole house by the standard browser of your Smartphone, Tablet or PC.
  • Page 4 www.garagedoorsonline.co.uk 01926 463888 How to connect My-Hand 1 - LAN Connection to a Wi-Fi Router (Standard Connection) My-Hand can be connected in different ways, according to Wi-Fi different applications. The standard use is a LAN connection to Router a Wi-Fi Router. - Connect My-Hand to Wi-Fi router with a LAN cable.
  • Page 5 www.garagedoorsonline.co.uk 01926 463888 2 - LAN connection to the PC (in case of no Wi-Fi Router) If you don’t need a WiFi router, connect My-Hand directly to a PC via LAN cable. The direct con- nection allows the same functionality of the Wi-Fi connection. - Connect My-Hand directly to the PC through RJ45 net cable.
  • Page 6 www.garagedoorsonline.co.uk 01926 463888 How to set My-Hand 4 - Set clock and date Click on MyHand Clock Click on “Settings” Set Time, Date and Holidays mode. It is possible to set different timers for When clicked, holidays are highlited by yellow text. working days and holidays.
  • Page 7 www.garagedoorsonline.co.uk 01926 463888 6 - Room Configuration Start the installation creating a new Room in the Room List. Rooms are used to easily identify the transmitters of the house. On “setting menu”, select and click on the empty room. Select Icon and enter the Name for each room.Then save parameters.
  • Page 8 www.garagedoorsonline.co.uk 01926 463888 6.1 - Insert the Transmitters into the Room Each new Room is empty and without any transmitters. Once created, you have to select and insert the transmitters you want to start to use with My-Hand. You can choose between various kinds of transmitters and different numbers of buttons.
  • Page 9 www.garagedoorsonline.co.uk 01926 463888 7 - Timers setup Timers are used to program commands in a specific instant of the day and week. At the set time, My-Hand activates the programmed channel of the transmitter automatically. You can use timers to give automatic commands, such as turning the lights on in the evening and open- ing the shutters in the morning.
  • Page 10 www.garagedoorsonline.co.uk 01926 463888 8 - Groups setup to create scenarios With My-Hand it is possible to configure up to four Groups: G1 G2 G3 G4. A Group is a global command that can be activated at any time in the transmitter web page. The user can easily store channels of different transmitters in a Group and send them to the receivers as a “scenario”, with a single press of G1 G2 G3 or G4 buttons.
  • Page 11 www.garagedoorsonline.co.uk 01926 463888 - How to activate the scenario Once created, the scenarios can be activate by any transmitter. From the Home Page click on the desired Room and select a transmitter. When you click on one of the four groups, all the transmitters of all rooms that have that group assigned will transmit the preset sequence.
  • Page 12 www.garagedoorsonline.co.uk 01926 463888 Transmitter memorization on the receivers 9 - How to memorize a Virtual Transmitter on the receivers You can add a new transmitter in the receivers in 2 ways: via wireless memorization trought P3 push-button or via direct accessing to the receiver. Case2: “My-Hand P3 Push-button”...
  • Page 13 www.garagedoorsonline.co.uk 01926 463888 Example of a typical configuration 10 - Timer setting example On the Setting Menu create the Rooms of the house. Set names and icons of the rooms. Insert the transmitters you like. Set their names and memorize them on the receivers. Set the timers: Model number Date...
  • Page 14 www.garagedoorsonline.co.uk 01926 463888 Once the timer is correctly set, the clock icon in the button appears to indicate that the memorization is correctly done. 10.1 Timers Control The “On/Off Timers” button is used to Timers Control enable or disable all This icon activates the active timers of or deactivates all...
  • Page 15 www.garagedoorsonline.co.uk 01926 463888 11 - Groups Setting (Scenarios Management) How to manage the group Simple example of group control to manage scenarios with My-Hand. STOP CLOSE OPEN Model number Date Code Number: Series TVLink T579.02_EN 29/10/2013 ETH000A02...
  • Page 16 www.garagedoorsonline.co.uk 01926 463888 G1 group: Open: Door Light A pressure on the G1 Group will activate the first scenario - Light : ON - Door : Open G2 group: Close: Door Light A pressure on the G2 Group will activate the second scenario - Light : OFF - Door : Close Model number...
  • Page 17 www.garagedoorsonline.co.uk 01926 463888 12- Delete rooms The rooms can be deleted only in USB mode with PC. Once connected to the PC, My-Hand is like a USB stick and you can edit the internal files with a standard Text Editor. Rooms must be deleted form the last to the first with the reverse order which they were created.
  • Page 18 www.garagedoorsonline.co.uk 01926 463888 14 - Problems Resolution 14.1 MY-Hand does not respond to the network connection Check if the IP address is correct: 1- disconnect MY-Hand from the network. 2- open the command prompt of the computer connected to the network: - Start / Programs / Accessories / Command Prompt , - Start / Run / type command “cmd”...
  • Page 19 www.garagedoorsonline.co.uk 01926 463888 14.2 - MY Hand-creates a conflict in the network address Check if you have set an IP address already in use: 1- Disconnect MY-Hand from the network. 2- Connect MY-Hand to the USB cable, open the SCRIPT.txt file and read the IP address of the MY-Hand. 3- Open the prompt command from the computer connected to the network: - Start / Programs / Accessories / Command Prompt , - Start / Run / type command “cmd”...
  • Page 20 www.garagedoorsonline.co.uk 01926 463888 TECHNICAL SPECIFICATIONS - Power supply 12Vdc - Carrier frequency 868.3 MHz - Working temperature - 10° +55°C - Dimensions 127x127x25 mm In the view of a constant development of their products, the manufacturer reserves the right for changing technical data and features without prior notice.
  • Page 21 Via dell’Artigianato, 16 - 31014 Colle Umberto (TV) ITALY ++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com TELEPHONE: This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights Rolling Shutters Automation Electronic tubular motor with built-in radio...

  • Page 22: Hand Transmitter

    TELECO AUTOMATION SRL - Via dell’Artigianato, 16 - 31014 Colle Umberto (TV) ITALY ++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com TELEPHONE: This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights Lighting management system Wall wireless transmitter...
