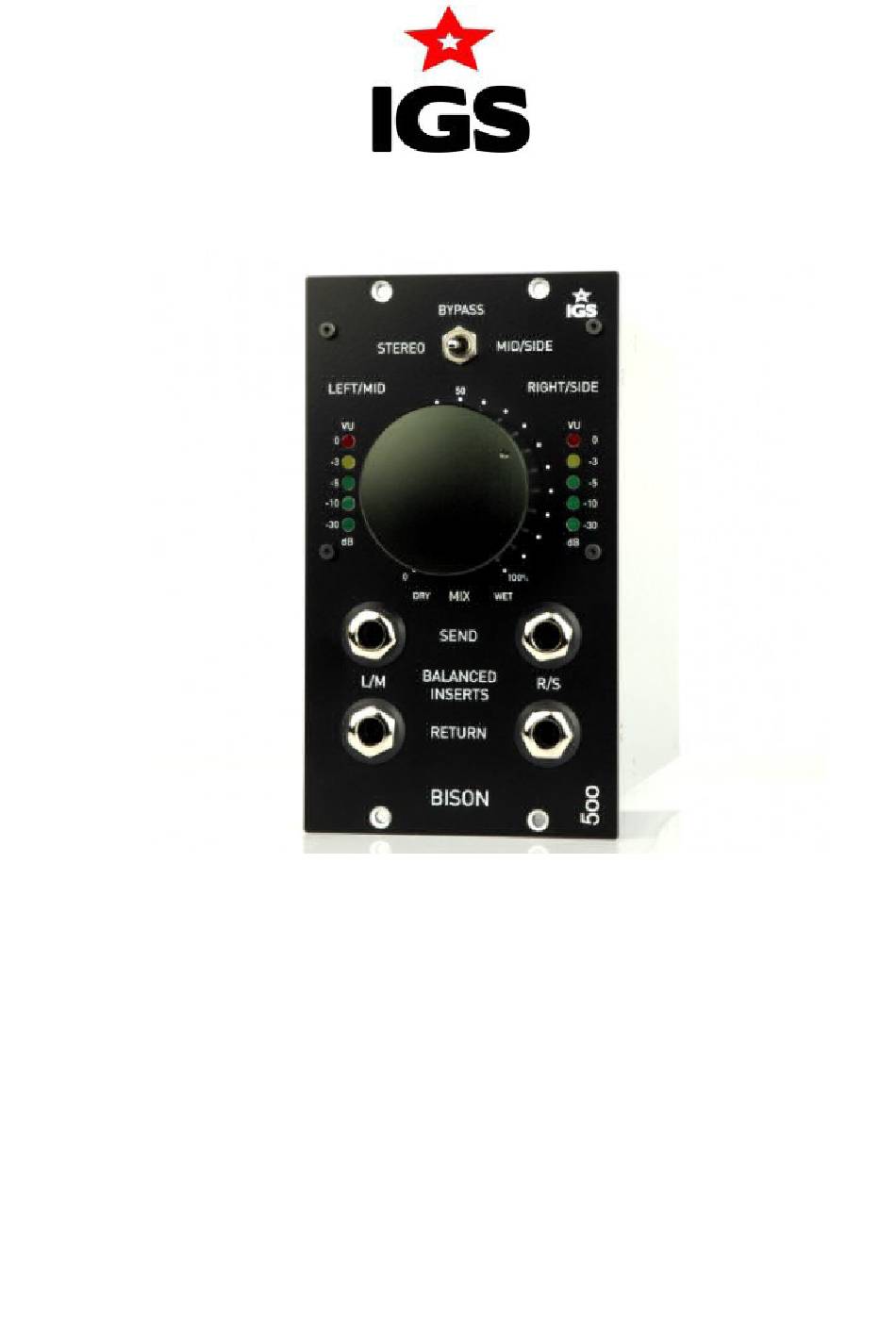

- Page 1 BISON 500 USER'S MANUAL IGS Audio Igor Sobczyk 3 Maja 76d, 41-400 Mysłowice, Poland e-mail: igs@o2.pl ph: +48 601 597 592 www.igsaudio.com...
- Page 2 The information in this document is subject to change without notice. IGS Audio makes no warranty of any kind with respect to the material in this document and shall not be liable for errors contained herein or for incidental or consequential damages related to the use of the material.
- Page 3 Please check for any signs of transit damage. If any signs of mishandling are found please notify the carrier and your dealer immediately. Your BISON 500 packing should contain the BISON 500 with IGS Audio tag (packed in ESD bag) and this manual with the Warranty and RoHS/CE/WEEE Declaration attached.
- Page 4 IGS AUDIO BISON 500 – stereo parallel mixer with Mid/Side processing The IGS Bison 500 is a simple mid/side processor with a dry/wet mixer. It has two stereo jack connectors (2 sends and 2 returns) on the front panel of the device used for plugging in your favorite dual mono or two mono compressors.

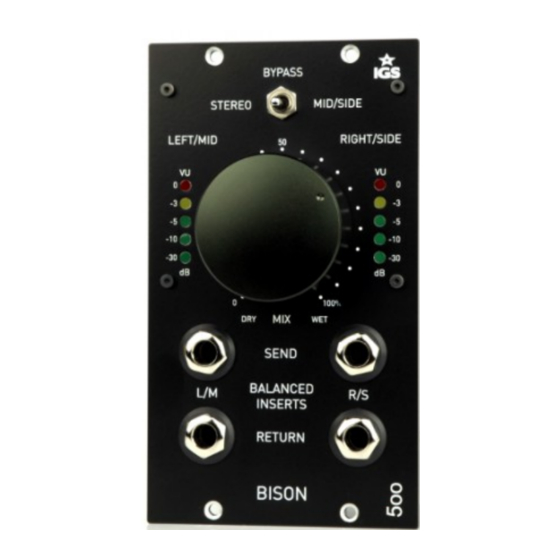

- Page 5 MIX (WET/DRY) STEREO, BYPASS, knob MID/SIDE 3-Position switch RIGHT/SIDE LEFT/MID LED VU METER LED VU METER RIGHT/SIDE LEFT/MID SEND SEND Jack socket Jack socket LEFT/MID RIGHT/SIDE RETURN RETURN Jack socket Jack socket STEREO, BYPASS, Select the mode in which the devices should operate. Either MID/SIDE switch classical L/R channels, bypass or M/S channels.
- Page 6 RB500 main features and technical specification: ✔ 500-series stereo module ✔ Balanced inputs, outputs and inserts ✔ 3 year warranty Operating Level +4dBu Maximum Input +18 dBu Maximum Output +22 dBu Dynamic Range 98 dBA (@ 1kHz, +18dBu) Input impedance(balanced) 10 kOhm Output Impedance(balanced) 50 Ohm...
- Page 7 with no charge. The customer always pays the shipping cost to us. This warranty does not cover expendable items such as tubes or fuses. If the defect has been caused by a misuse or abnormal operation conditions, the repair will be billed at a nominal cost. The product should be returned in its original package, if this is possible, or packed in such a way that it is not damaged during the shipment.
