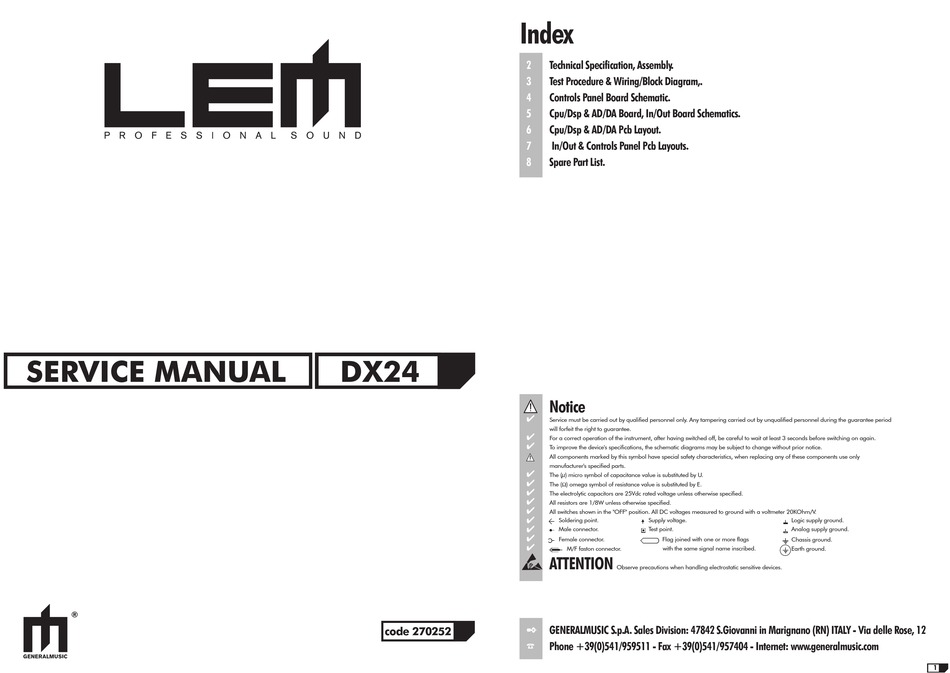

LEM DX24 Service Manual

SERVICE MANUAL
®
DX24
code 270252
Index
2 Technical Specification, Assembly.
3 Test Procedure & Wiring/Block Diagram,.
4 Controls Panel Board Schematic.
5 Cpu/Dsp & AD/DA Board, In/Out Board Schematics.
6 Cpu/Dsp & AD/DA Pcb Layout.
7 In/Out & Controls Panel Pcb Layouts.
8 Spare Part List.
Notice
✔
Service must be carried out by qualified personnel only. Any tampering carried out by unqualified personnel during the guarantee period
will forfeit the right to guarantee.
✔
For a correct operation of the instrument, after having switched off, be careful to wait at least 3 seconds before switching on again.
✔
To improve the device's specifications, the schematic diagrams may be subject to change without prior notice.
All components marked by this symbol have special safety characteristics, when replacing any of these components use only
manufacturer's specified parts.
✔
The (µ) micro symbol of capacitance value is substituted by U.
✔
Ω
The ( ) omega symbol of resistance value is substituted by E.
✔
The electrolytic capacitors are 25Vdc rated voltage unless otherwise specified.
✔
All resistors are 1/8W unless otherwise specified.
✔
All switches shown in the "OFF" position. All DC voltages measured to ground with a voltmeter 20KOhm/V.
✔
Soldering point. Supply voltage.
✔
Test point.
Male connector.
✔
Female connector. Flag joined with one or more flags
✔
M/F faston connector. with the same signal name inscribed.
ATTENTION
Observe precautions when handling electrostatic sensitive devices.
✒
GENERALMUSIC S.p.A. Sales Division: 47842 S.Giovanni in Marignano (RN) ITALY - Via delle Rose, 12
☎
Phone +39(0)541/959511 - Fax +39(0)541/957404 - Internet: www.generalmusic.com
Logic supply ground.
Analog supply ground.
Chassis ground.
Earth ground.
